AMCC Proprietary 50
Revision 1.02 - September 10, 2007
PPC405 Processor
Preliminary User’s Manual
2.7 Branch Processing
The PPC405, which provides a variety of conditional and unconditional branching instructions, uses the branch
prediction techniques described in Branch Prediction on page 52.
2.7.1 Unconditional Branch Target Addressing Options
The unconditional branches (b, ba, bl, bla) carry the displacement to the branch target address as a signed 26-bit
value (the 24-bit LI field right-extended with 0b00). The displacement enables unconditional branches to cover an
address range of ±32MB.
For the relative (AA = 0) forms (b, bl), the target address is the current instruction address (CIA, the address of the
branch instruction) plus the signed displacement.
For the absolute (AA = 1) forms (ba, bla), the target address is 0 plus the signed displacement. If the sign bit (LI[0])
is 0, the displacement is the target address. If the sign bit is 1, the displacement is a negative value and wraps to
the highest memory addresses. For example, if the displacement is 0x3FF FFFC (the 26-bit representation of –4),
the target address is 0xFFFF FFFC (0 – 4B, or 4 bytes below the top of memory).
2.7.2 Conditional Branch Target Addressing Options
The conditional branches (bc, bca, bcl, bcla) carry the displacement to the branch target address as a signed 16-
bit value (the 14-bit BD field right-extended with 0b00). The displacement enables conditional branches to cover an
address range of ±32KB.
For the relative (AA = 0) forms (bc, bcl), the target address is the CIA plus the signed displacement.
For the absolute (AA = 1) forms (bca, bcla), the target address is 0 plus the signed displacement. If the sign bit
(BD[0]) is 0, the displacement is the target address. If the sign bit is 1, the displacement is negative and wraps to
the highest memory addresses. For example, if the displacement is 0xFFFC (the 16-bit representation of –4), the
target address is 0xFFFF FFFC (0 – 4B, or 4 bytes from the top of memory).

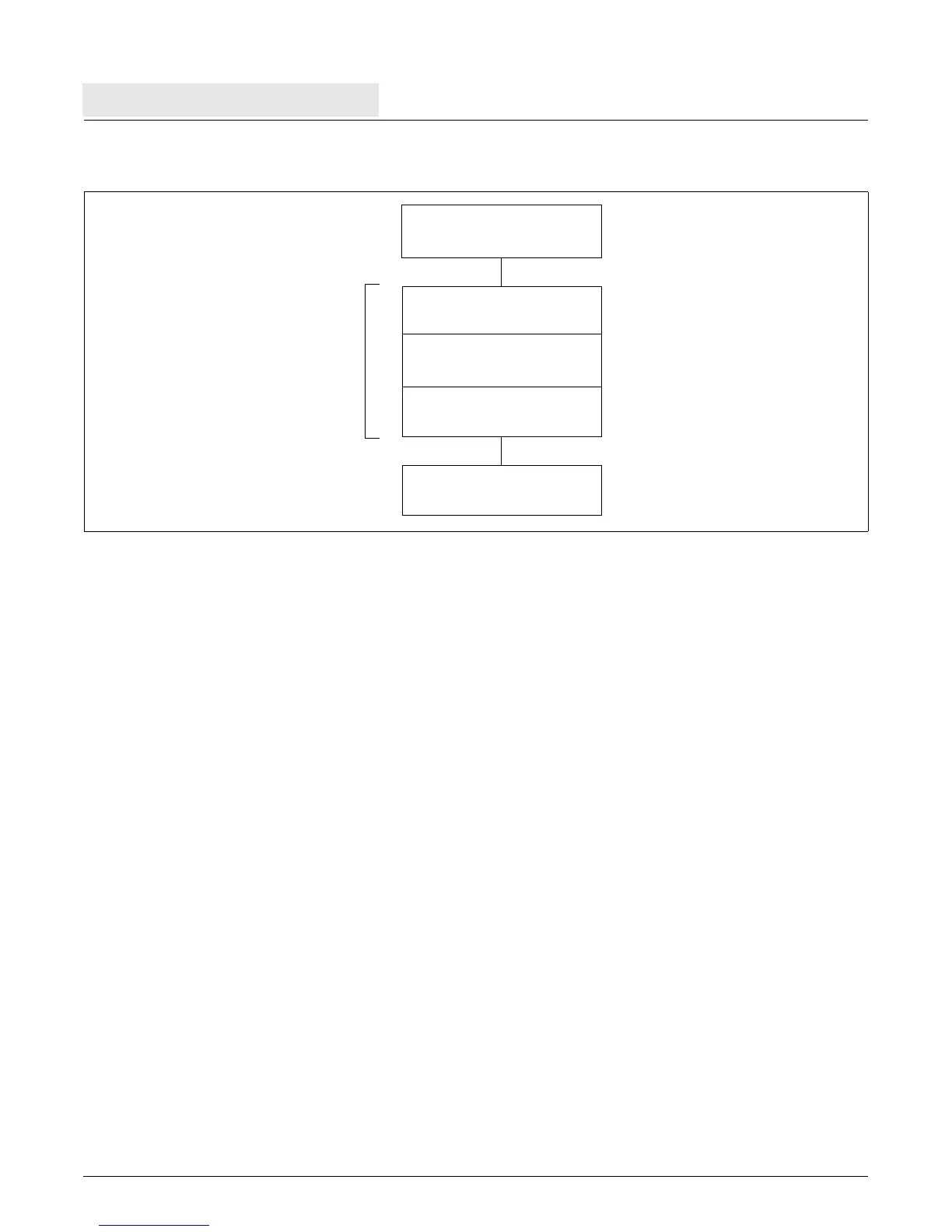

Figure 2-15. PPC405 Instruction Pipeline
EXU
DCD
PFB0
PFB1
ICU
Fetch
Dispatch
Queue
Instruction
