7. Motor control
This chapter contains all functions and settings relevant for the motor control.

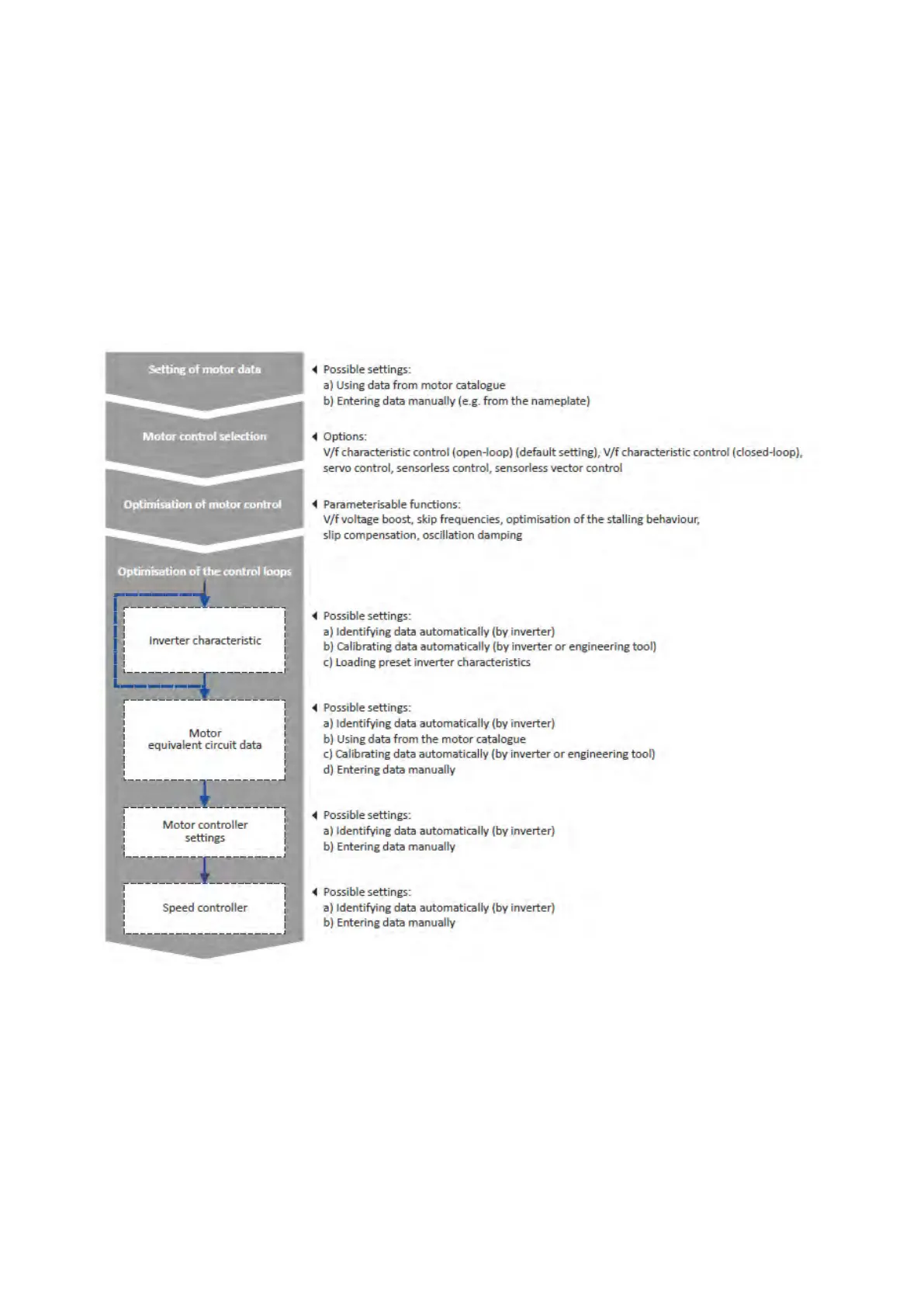

Basic procedure of commissioning the motor control
In the first step, the rated data of the motor must be set. The other steps depend on the
respective application case.
There are several options for setting the motor data and optimising the control loops.
Basically, you can select between a manual and an automatic process. Whether a setting
can be applied or not depends on the motor and the application. If possible, always use
the possible setting listed first in the following diagram since this one leads to the most
accurate results.
•
Motor data
108
•
Motor control selection
109
•
Optimisation of motor control
122
•
Optimisation of the control loops
133
•
Motor rotating direction
153
•
Switching frequency changeover
154
•
Motor protection
155
