3.2.3. 3-phase mains connection 400 V
3.2.3.1. Connection plan
The wiring diagram is valid forEmotron VS30 inverters.

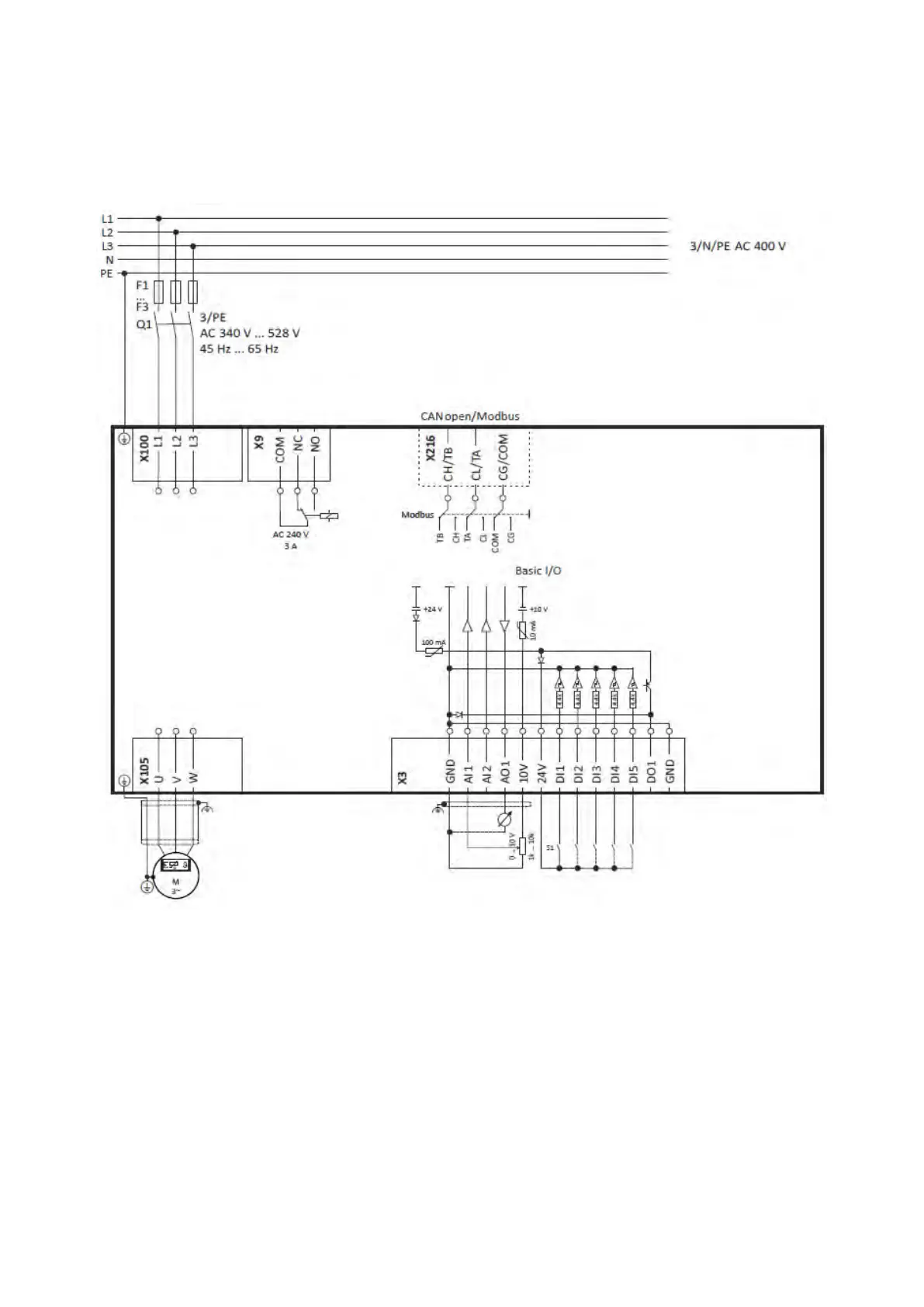

Fig. 3: Wiring example
S1 Run/Stop
Fx Fuses
Q1 Mains contactor
--Dashed line = options
