12.12. Frequency threshold for "Frequency threshold exceeded" trigger
As a function of the current output frequency, the adjustable frequency threshold serves
to trigger a certain function or set a digital output.
Parameter
Name / value range / [default setting]
Info
0x4005
(P412.00)
Frequency threshold
(Freq. threshold)
0.0 ... [0.0] ... 599.0 Hz
Threshold for the "Frequency threshold exceeded [70]" trigger.
The "Frequency threshold exceeded [70]" trigger is TRUE if the
cur
rent output frequency is higher than the set threshold.
The trigger can be assigned to a function or to a digital output.
Example for operating mode
In the following example, the digital output 1 is set to TRUE if the output frequency is
higher than 20 Hz.
• The analog input 1 is set as standard setpoint source.
• Switch S1 starts the motor in forward direction of rotation. Switch S1 in the initial
position stops the motor again.

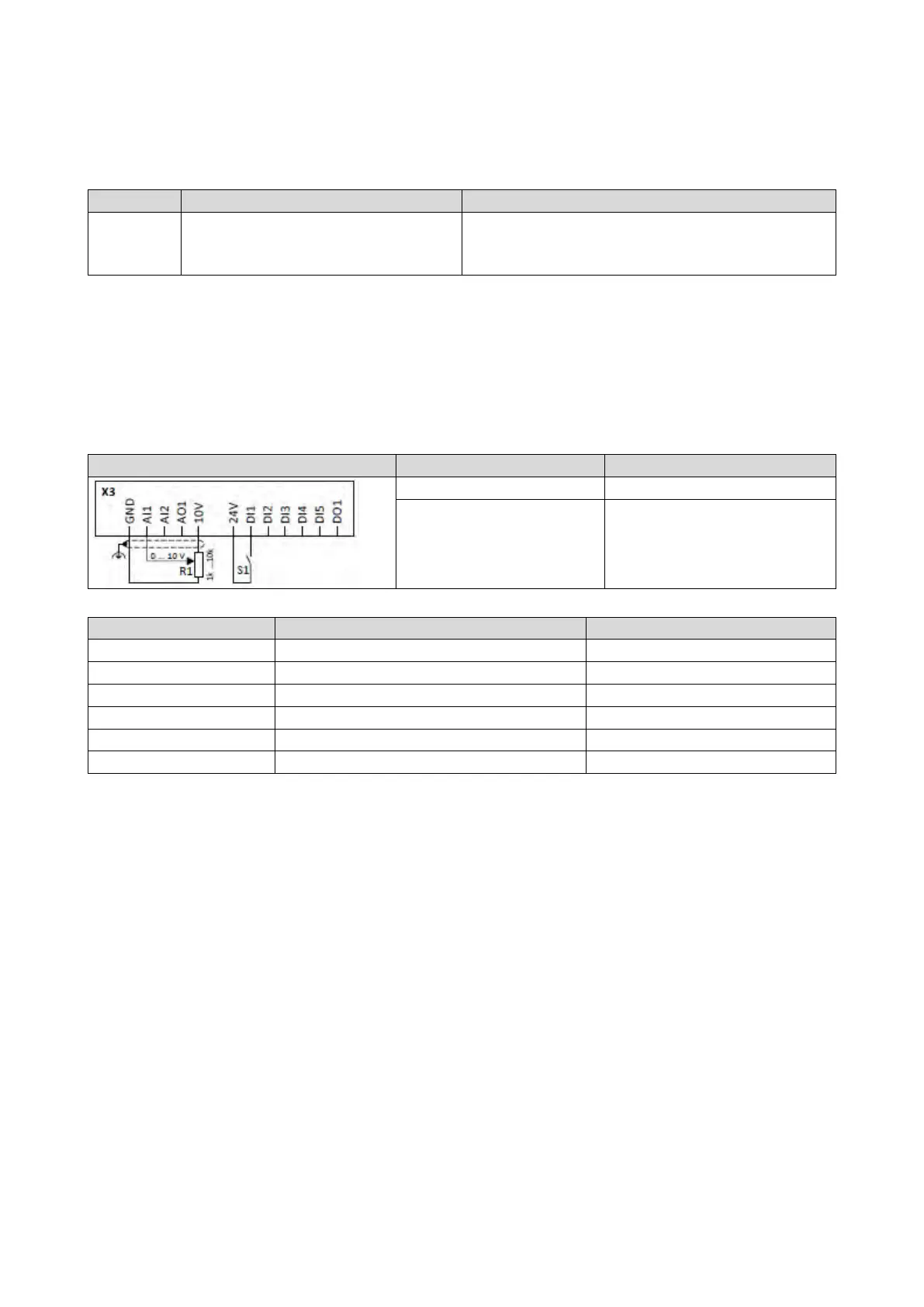

Connection plan
function
Potentiometer R1
Frequency setpoint
Switch S1
Run
Parameter
Name
Setting for this example
0x2631:001 (P400.01) Enable inverter Constant TRUE [1]
0x2631:002 (P400.02)
Run
Digital input 1 [11]
0x2634:002 (P420.02)
Digital outputs function: Digital output 1
Frequency threshold exceeded [70]
0x2824 (P200.00)
Control selection
Flexible I/O configuration [0]
0x2860:001 (P201.01)
Frequency control: Default setpoint source
Analog input 1 [2]
0x4005 (P412.00) Frequency threshold 20 Hz
