12.9.1. Example 1: Activation via command (only when disabled)
Activation method 0x4046 (P755.00) = "Via command (disable required) [0]":
• Switches S3 and S4 serve to select the parameter set (see the following table).
• Switch S2 activates the change-over. Since the change-over is activated with a rising
edge, a button (normally-open contact) can be used instead of a switch.
• Change-over is only possible if the motor is not started (switch S1 open).

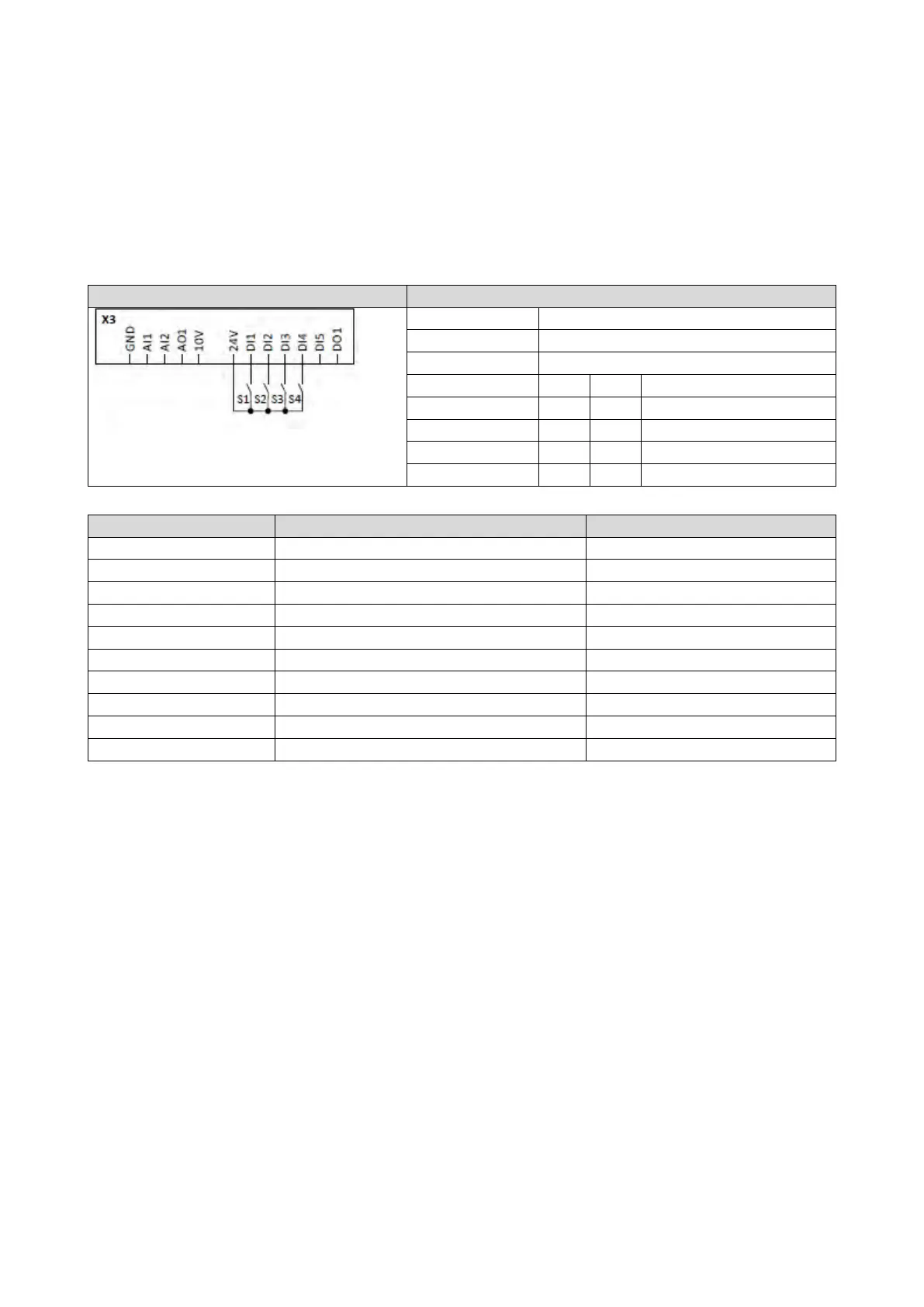

Connection plan
function
Switch S1 Run
Switch S2
Load parameter set
Switches S3 ... S4
Preset selection:
S3
S4
Off
Off
Parameter set 1
On Off Parameter set 2
Off
On
Parameter set 3
On On Parameter set 4
Parameter
Name
Setting for this example
0x2631:001 (P400.01)
Enable inverter
Constant TRUE [1]
0x2631:002 (P400.02)
Run
Digital input 1 [11]
0x2631:004 (P400.04) Reset fault Not connected [0]
0x2631:013 (P400.13)
Invert rotation
Not connected [0]
0x2631:018 (P400.18)
Activate preset (bit 0)
Not connected [0]
0x2631:040 (P400.40)
Load parameter set
Digital input 2 [12]
0x2631:041 (P400.41)
Select parameter set (bit 0)
Digital input 3 [13]
0x2631:042 (P400.42) Select parameter set (bit 1) Digital input 4 [14]
0x2824 (P200.00)
Control selection
Flexible I/O configuration [0]
0x4046 (P755.00)
Activation of parameter set
Via command (disable required) [0]
