Emotron VS10 User Manual

Parameter
Name / value range / [default setting]
Info
0x4023:006
(P610.06)
PID sleep mode: Recovery
(PID sleep mode: Recovery)
Selection of the condition for terminating the idle state.
0 Setpoint > threshold OR system deviation >
bandwidth
Completion of idle state if
frequency setpoint > (frequency threshold 0x4023:003 (P610.03) +
2
Hz hysteresis) OR
in case of active PID control system deviation > bandwidth
0x4023:007 (P610.07) and bandwidth 0x4023:007 (P610.07) <> 0.
1
Process variable < recovery threshold
Completion of idle state if the controlled variable fed back < completion
threshold 0x4023:008 (P610.08).
2
Process variable > recovery threshold
Completion of idle state if the controlled variable fed back > completion
threshold 0x4023:008 (P610.08).
0x4023:007
(P610.07)
PID sleep mode: Bandwidth
(PID sleep mode: Bandwidth)
0.00 ... [0.00] ... 300.00 PID
unit
Range around the process controller setpoint for terminating the idle
state.
0x4023:008
(P610.08)
PID sleep mode: Recovery threshold
(PID sleep mode: Recovery thresh.)
-300.00 ... [0.00] ... 300.00 PID unit
Termination threshold for idle state.
9.2.2. Process controller rinse function
This function accelerates the motor in idle state of the process controller at regular
intervals to a defined speed.
Details
A typical application for this function is the rinsing of a pipe system with a pump that has
been in an inactive state for a longer period to prevent deposits.
• In order to activate the rinsing function, set the selection "Enabled [1]" in 0x4024:001
(P615.01).

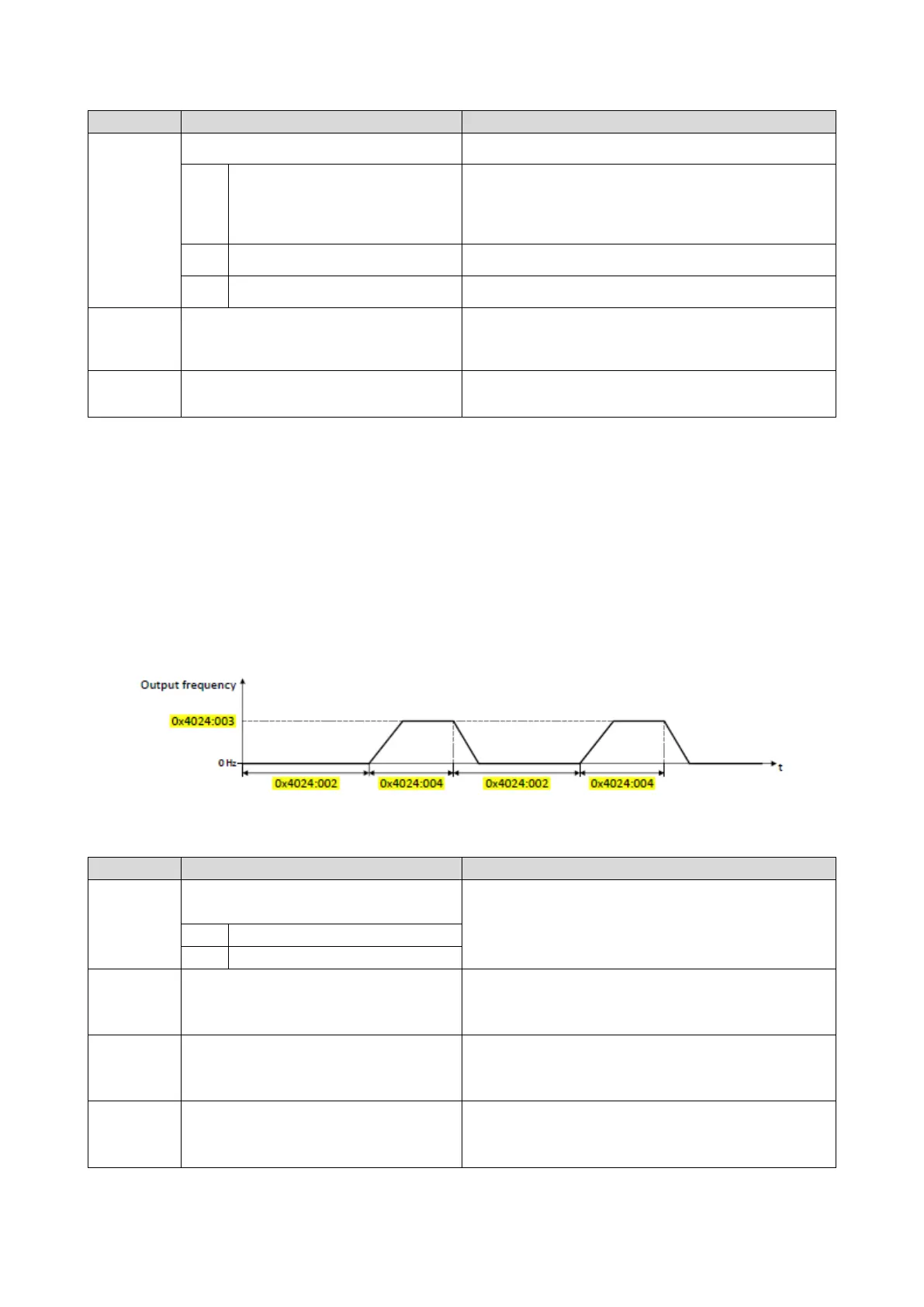

• The following diagram demonstrates the function:
•
The rinsing function uses the ramp times set for the "MS: Velocity mode".  Frequency
limits and ramp times
 100
Parameter
Name / value range / [default setting]
Info
0x4024:001
Automatic rinsing: Rinsing in idle state
1 = activate automatic rinsing in idle state.
(P615.01)
(Auto-rinsing: Rinsing in idle)
0
Inhibited
1
Enabled
0x4024:002 Automatic rinsing: Rinse interval Time interval between two rinsing processes.
(P615.02)
(Auto-rinsing: Rinse interval)
0.0 ... [30.0] ... 6000.0 min
0x4024:003
Automatic rinsing: Rinse speed
Speed setpoint for rinse function.
(P615.03)
(Auto-rinsing: Rinse speed)
-599.0 ... [0.0] ... 599.0 Hz
0x4024:004
Automatic rinsing: Rinse period
Duration of a rinsing process.
(P615.04)
(Auto-rinsing: Rinse period)
0.0 ... [0.0] ... 6000.0 s
