10.4.1. Example 1: Automatic DC braking when the motor is started
In order that the DC braking is automatically active when the motor is started, the start
method "DC braking [1]" must be set in 0x2838:001 (P203.01).
• The DC braking is carried out with the braking current set in 0x2B84:001 (P704.01).
• Only after the hold time 0x2B84:002 (P704.02) has elapsed, the motor is accelerated to
the setpoint.
Parameter
Name
Setting for this example
0x2631:001 (P400.01)
Enable inverter
Digital input 1 [11]
0x2631:002 (P400.02)
Run
Digital input 2 [12]
0x2631:004 (P400.04)
Reset fault
Not connected [0]
0x2838:001 (P203.01) Start method DC braking [1]
0x2860:001 (P201.01)
Frequency control: Default setpoint source
Frequency preset 1 [11]
0x2911:001 (P450.01)
Frequency setpoint presets: Preset 1
40 Hz
0x2B84:001 (P704.01)
Current
50 %
0x2B84:002 (P704.02)
Automatic hold time
10 s

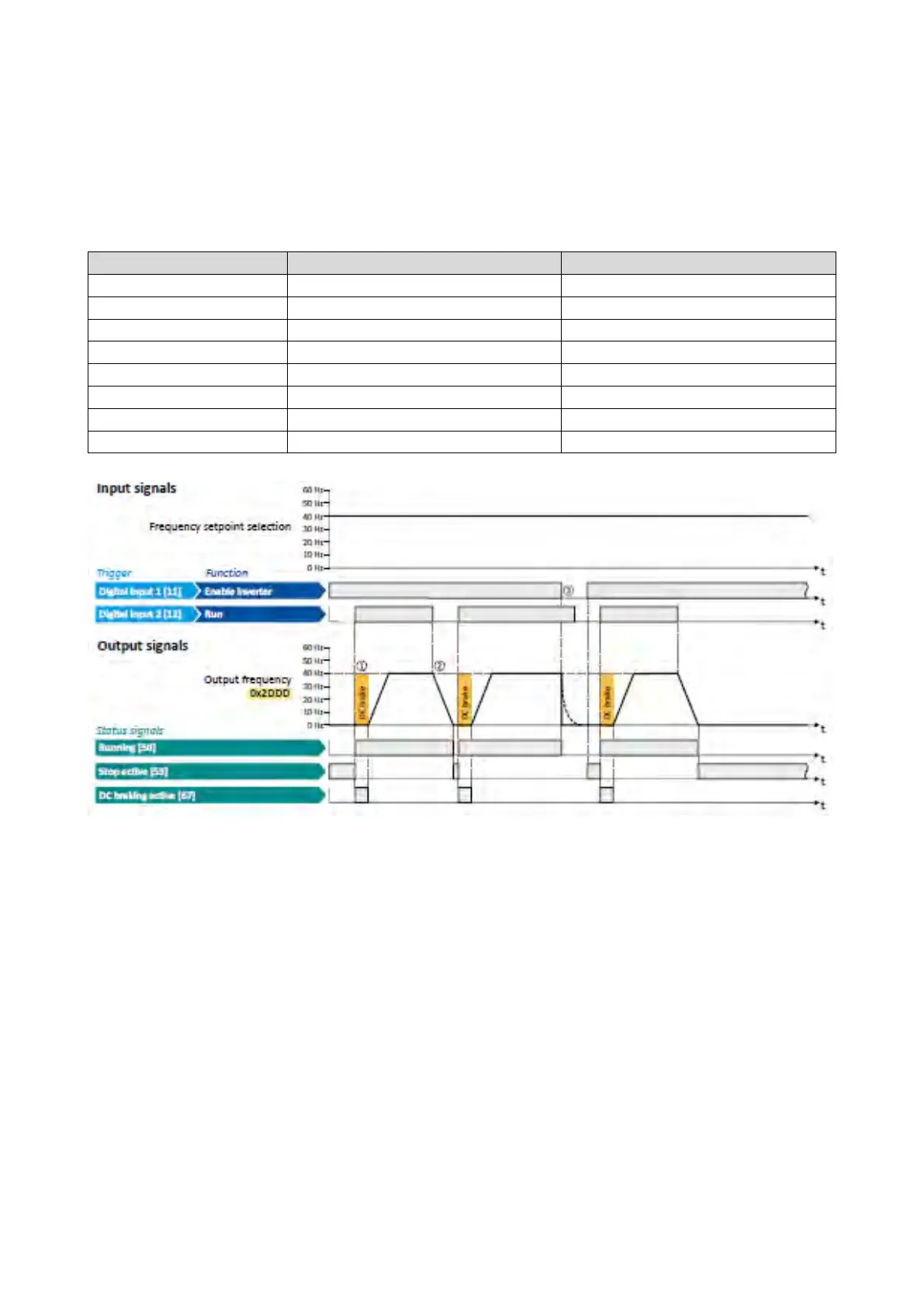

The status signals can be assigned to digital outputs.  Configuration of digital
outputs
 429
① After the start command, the DC braking is active. Only after the hold time
0x2B84:002 (P704.02) has elapsed, the motor is accelerated to the setpoint.
② The motor is stopped with the stop method set in 0x2838:003 (P203.03). In the
example: Stop with standard ramp.
③ If the inverter is disabled, the motor coasts.
