Emotron VS10 - Load Loss Detection

286 01-6203-01R3, CG Drives & Automation
Parameter
Name / value range / [default setting]
Info
0
No mode change/no mode assigned
No operating mode (standstill)
2 CiA: Velocity mode CiA 402 velocity mode
10.6. Load loss detection
This function serves to detect a load loss during operation and to then activate a specific
function, for instance the switching of the relay.
Details

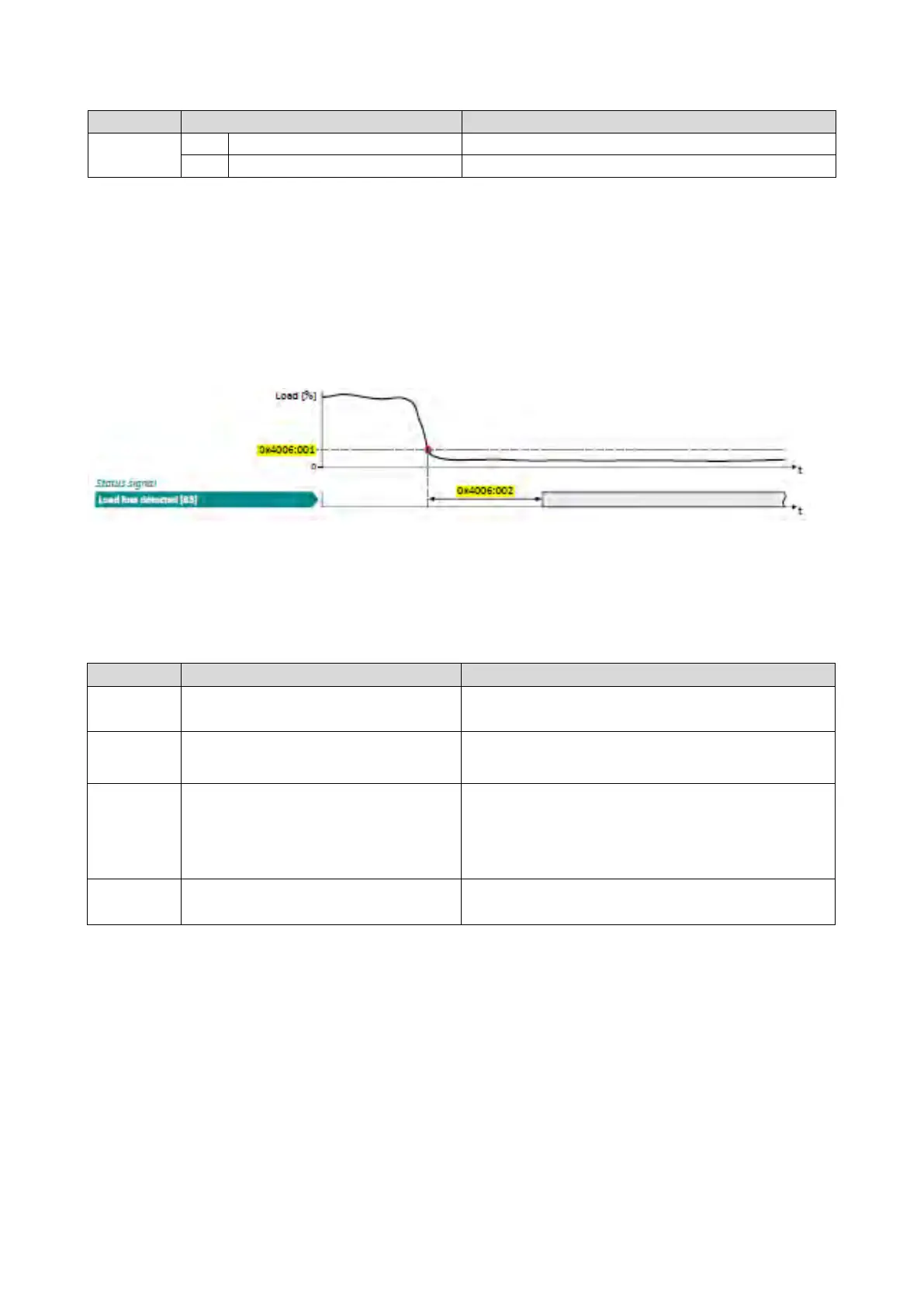

If, during operation, the current motor current falls below the threshold set in 0x4006:001
(P710.01) for at least the time set in 0x4006:002 (P710.02), the internal status signal "Load
loss detected [83]" is set to TRUE:
• The threshold is set in percent with reference to the rated motor current "Motor rated
current" 0x6075 (P323.00).
•
The status signal "Load loss detected [83]" can be assigned, for instance, to a digital
output or the relay via the flexible I/O configuration.
 Configuration of digital
outputs
 429
• The load loss detection is not active with active DC braking.
Parameter
Name / value range / [default setting]
Info
0x4006:001
(P710.01)
Load loss detection: Threshold
(Load loss detect: Threshold)
0.0 ... [0.0] ... 200.0 %
Threshold for load loss detection.
100 % ≡ rated motor current 0x6075 (P323.00)
0x4006:002
(P710.02)
Load loss detection: Deceleration
(Load loss detect: Deceleration)
0.0 ... [0.0] ... 300.0 s
Tripping delay for load loss detection.
0x6075
(P323.00)
Motor rated current
(Motor current)
0.001 ... [1.700]* ... 500.000 A
* Default setting depending on the size.
Setting can only be changed if the inverter is
inhibi
ted.
The rated motor current to be set here serves as a reference value for
different parameters with a setting/display of a current value in
percent.
Example:
Motor rated current = 1.7 A
Max current 0x6073 (P324.00) = 200 % Motor rated current = 3.4 A
0x6078
(P103.00)
Current actual value
(Current actual)
Read only: x.x %
Display of the present motor current.
100 % ≡ Motor rated current 0x6075 (P323.00)
