11.3. Sequencer basic settings
In the presetting, the sequencer is disabled. In order to enable the sequencer, the desired
sequencer mode (time and/or step operation) must be set. Moreover, different end of
sequence modes and start of sequences modes are available.
Details
Sequencer mode 0x4025 (P800.00)
• The sequencer can be operated in time and/or step operation.

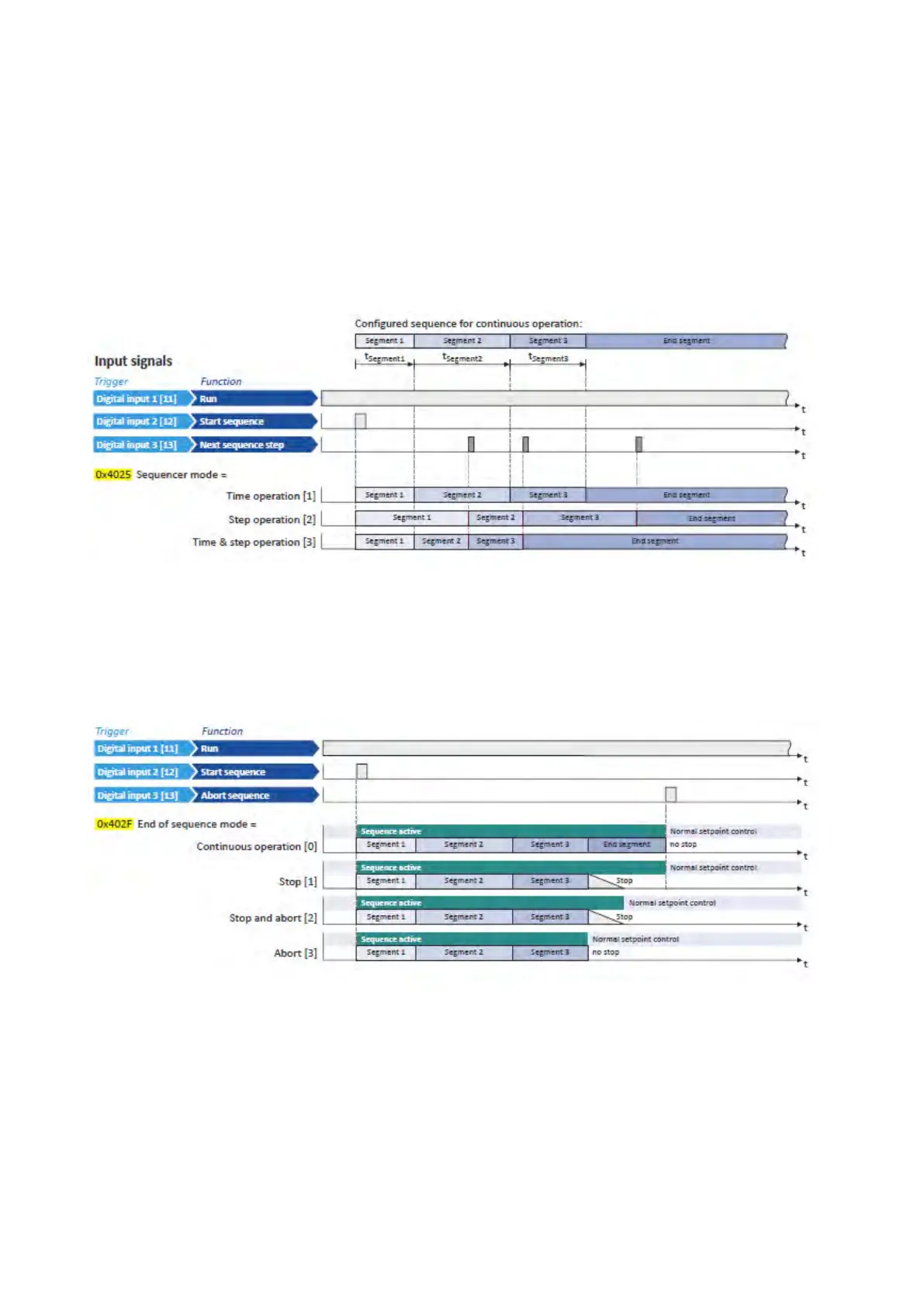

• The following diagram demonstrates the different sequencer modes:
End of sequence mode 0x402F (P824.00)
• The end of sequence mode defines the action after the end of the sequence.
• In the default setting "Keep running [0]", the setpoint set for the end segment is
continuously transmitted to the motor control until the sequence is aborted.
• The following diagram demonstrates the different end of sequence modes:
