3.2. Electrical installation
3.2.1. 1-phase mains connection 230/240 V
3.2.1.1. Connection plan
The wiring diagram is valid for Emotron VS10 inverters.

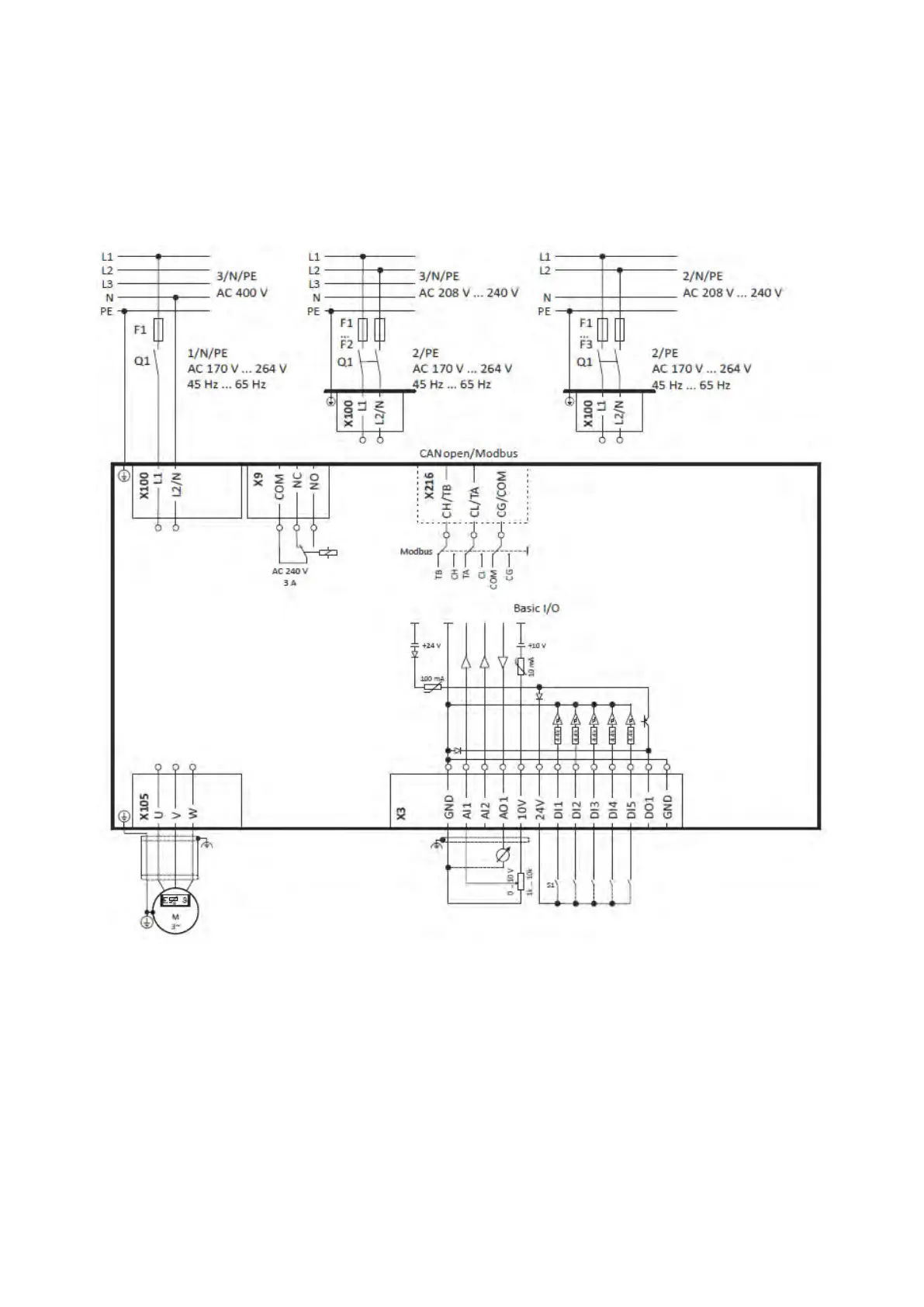

Fig. 1: Wiring example
S1 Run/Stop
Fx Fuses
Q1 Mains contactor
--Dashed line = options
