12.1. Control source change-over
The term "control sources" in this connection refers to the digital signal sources from
which the inverter receives its start, stop, and reversal commands.
Possible control sources are:
• Digital inputs
• Keypad
• Network
Details
First, select in 0x2824 (P200.00) whether the start of the motor is to be configured flexibly
(default setting) or exclusively via the keypad.
 Control source selection  92
If "Flexible I/O configuration" is set, a change-over from one control source to another can
be effected during operation via the functions listed in the following table. The inverter
not only supports such a change-over via its digital inputs, but also as a function of
internal inverter states.
Activate keypad control
0x2631:012 (P400.12)
Activate network control
0x2631:037 (P400.37)
Active control source
FALSE / Not connected FALSE / Not connected
Flexible I/O configuration (default setting)
The motor is controlled via the digital inputs.
For preconfigured assignment of the digital inputs, see chapter "Func-
tion assignment of the inputs and outputs".  35
For description of the basic functions for controlling the motor, see
chapter "Start / stop motor".

363
FALSE / Not connected TRUE
Network
Starting the motor is only possible via the network control word.
Exception: Jog operation; see chapter "Start / stop motor".  363
Example 2: Change-over from terminal control to network control

362
TRUE Any
Keypad
Starting the motor is only possible via the keypad key.
Exception: Jog operation; see chapter "Start / stop motor".  363
 Example 1: Change-over from terminal control to keypad control 
361

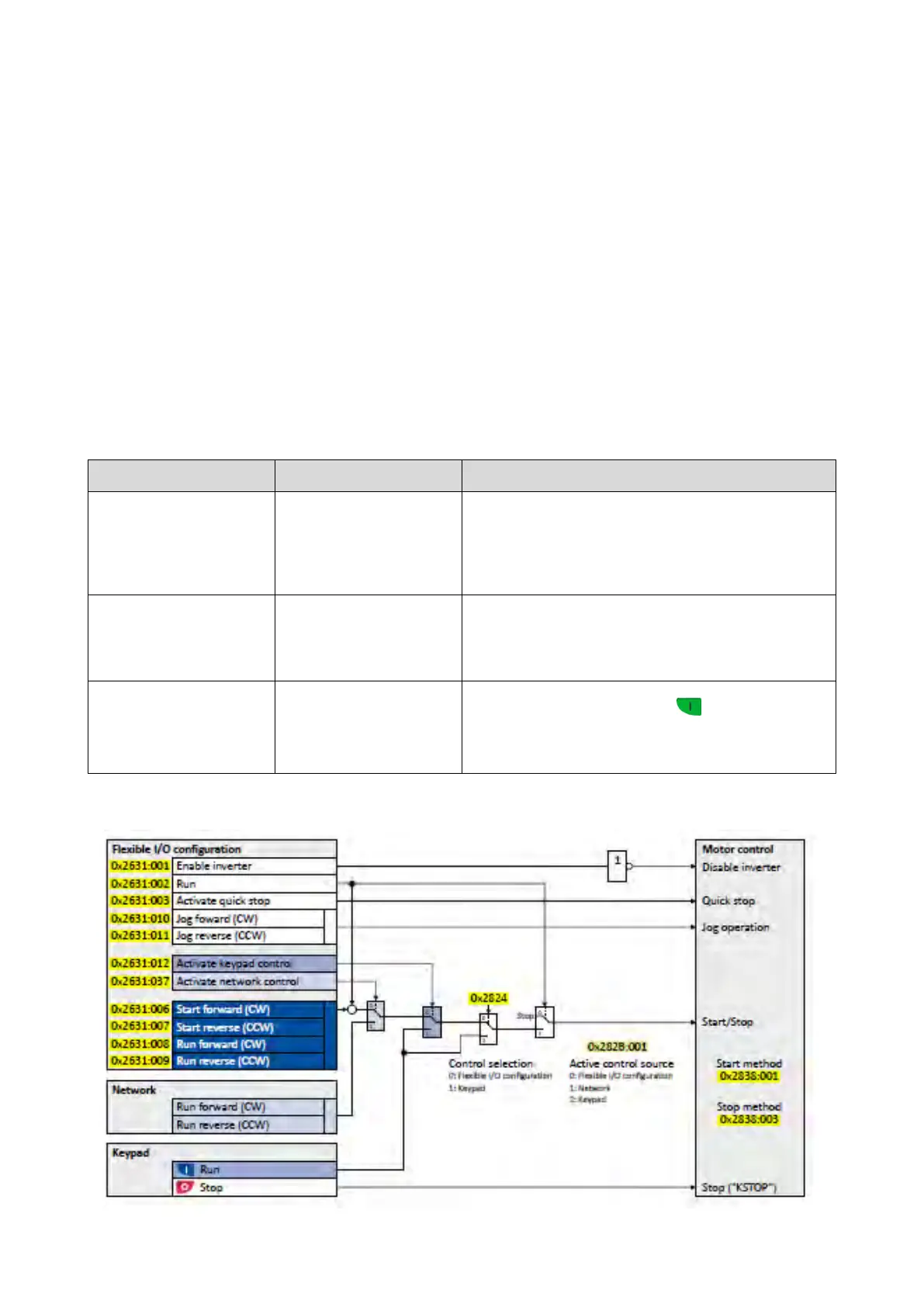

The following signal flow shows the internal control logics:
