Emotron VS10 User Manual

12.3.3. Keypad setpoint source
The following function is used to select the keypad as setpoint source.
Preconditions
A setpoint change-over to the keypad is only effected if no setpoint source with a higher
priority has been selected. Priority of the setpoint sources
 380
Parameter
Name / value range / [default setting]
Info
0x2631:016
(P400.16)
Function list: Activate keypad setpoint
(Function list: Setp: Keypad)
For further possible settings, see parameter
0x2631:001 (P400.01).  364
Assignment of a trigger for the "Activate keypad setpoint" function.
Trigger = TRUE: the keypad is used as setpoint source (if the trigger
assigned has the highest setpoint priority).
Trigger = FALSE: no action / deactivate function again.
Notes:
The default keypad setpoint can be changed in keypad operating
mode via the arrow keys of the keypad.
0
Not connected
No trigger assigned (trigger is constantly FALSE).
Keypad setpoint default setting
For the manual setpoint selection via keypad the following default settings are used:
• 0x2601:001 (P202.01): Keypad setpoints: Frequency setpoint
• 0x2601:002 (P202.02): Keypad setpoints: Process controller setpoint
The increment for keypad setpoints can be adapted in 0x2862 (P701.00) by pressing a
keypad arrow key once.
Example for operating mode
• The analog input 1 is set as standard setpoint source.
• Switch S1 starts the motor in forward direction of rotation. Switch S1 in the initial
position
stops the motor again.
• Switch S2 switches the direction of rotation.
• Switch S3 activates the keypad as setpoint source. The keypad setpoint can be changed
in
the operating mode via the navigation keys and keypad keys.

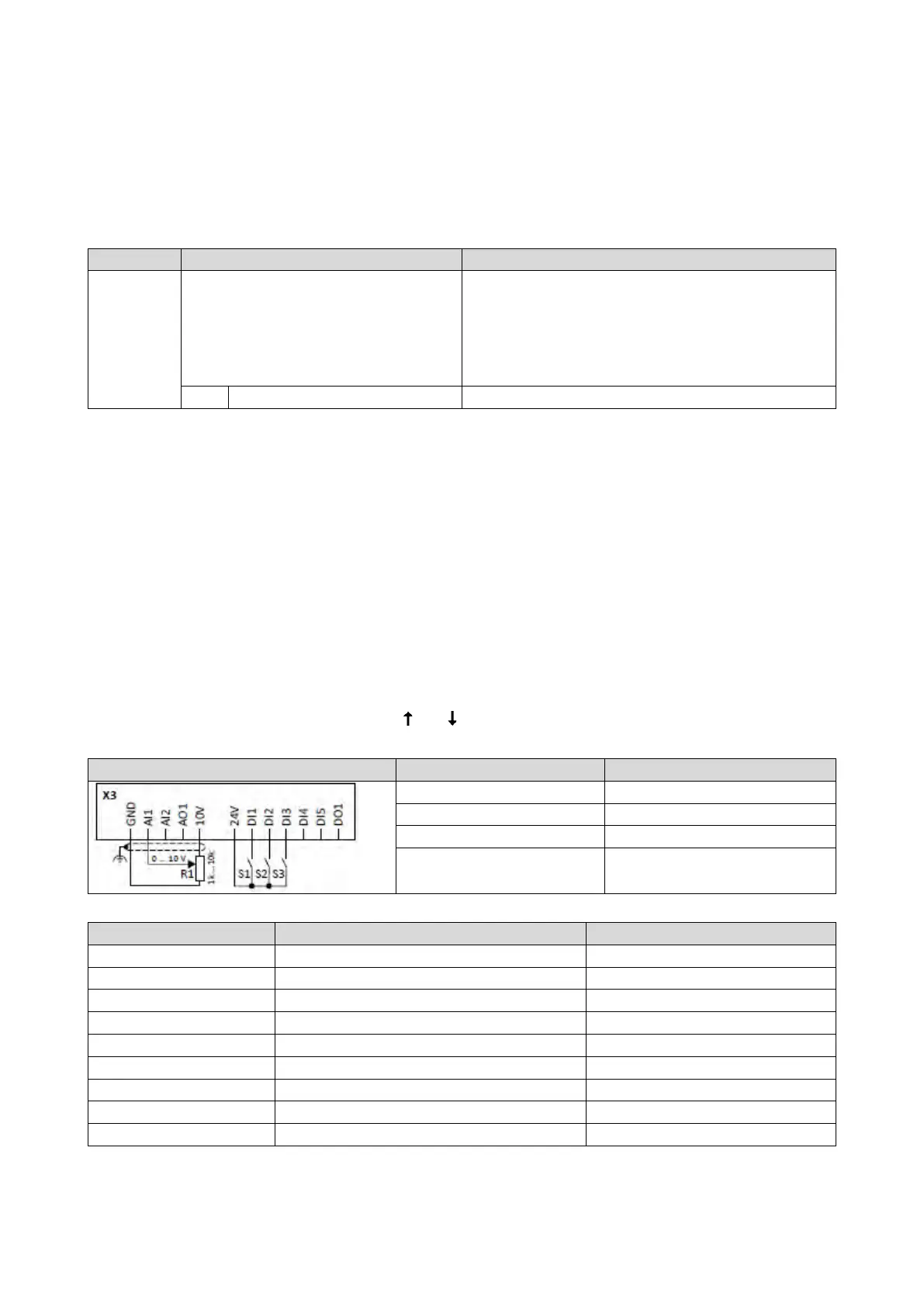

Connection plan
function
Potentiometer R1
Frequency setpoint
Switch S1
Run
Switch S2 Invert rotation
Switch S3
Activate keypad setpoint
Parameter
Name
Setting for this example
0x2601:001 (P202.01)
Keypad setpoints: Frequency setpoint
20.0 Hz
0x2631:001 (P400.01)
Enable inverter
Constant TRUE [1]
0x2631:002 (P400.02)
Run
Digital input 1 [11]
0x2631:004 (P400.04)
Reset fault
Not connected [0]
0x2631:013 (P400.13)
Invert rotation
Digital input 2 [12]
0x2631:016 (P400.16)
Activate keypad setpoint
Digital input 3 [13]
0x2824 (P200.00)
Control selection
Flexible I/O configuration [0]
0x2838:003 (P203.03)
Stop method
Standard ramp [1]
0x2860:001 (P201.01)
Frequency control: Default setpoint source
Analog input 1 [2]
