400 01-6203-01R3, CG Drives & Automation
The
status
signals can be assigned to digital outputs.
Configuration of digital outputs
429

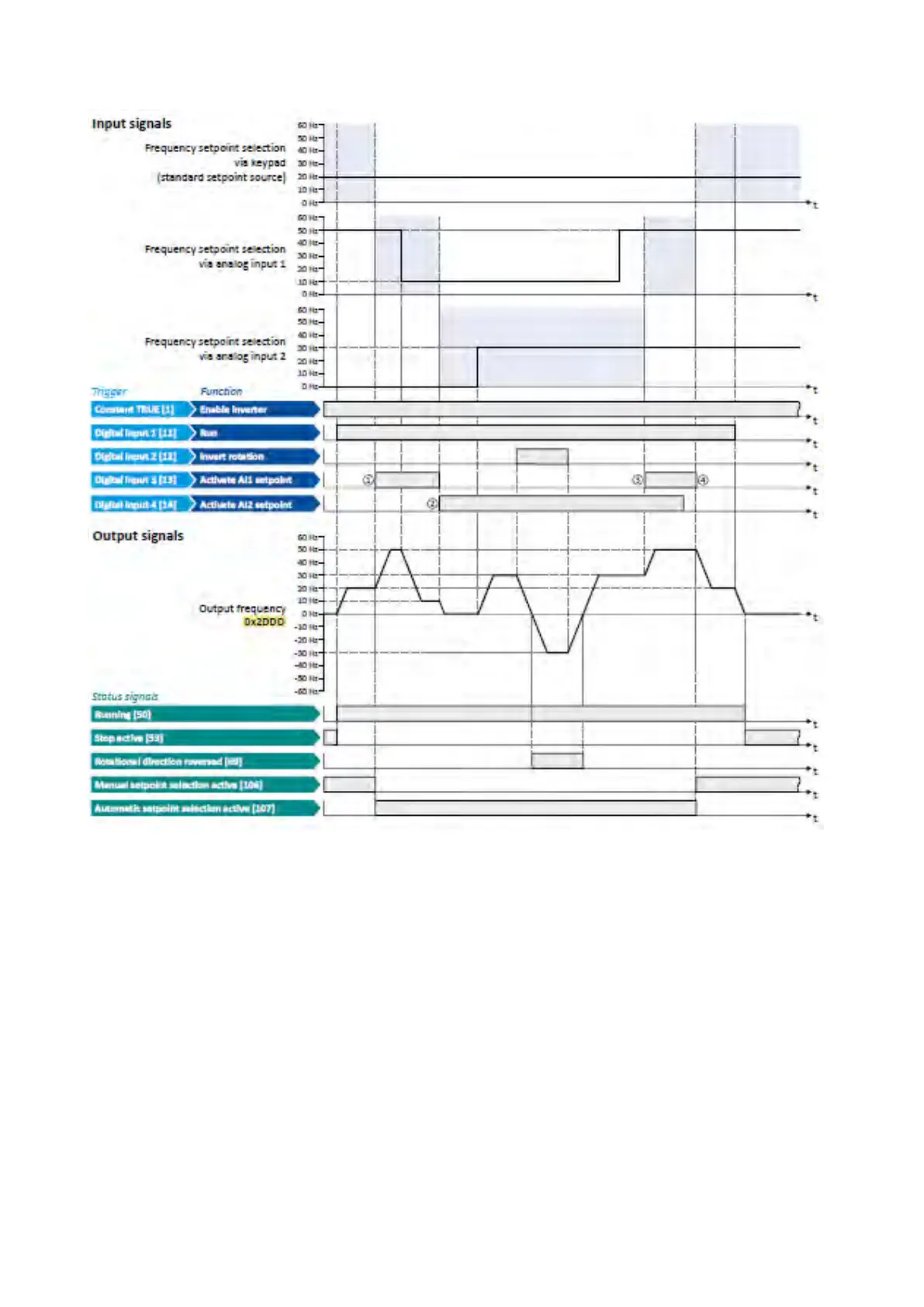

① Change-over from keypad setpoint (standard setpoint source) to AI1 setpoint.
② Change-over from AI1 setpoint to AI2 setpoint.
③ Change-over from AI2 setpoint to AI1 setpoint since the digital input 3 has a higher
priority than the digital input 4.
④ Change-over to keypad setpoint (standard setpoint source).
