The st
a
tus
signals
can be assigned to digital outputs.
Configuration of digital outputs
429

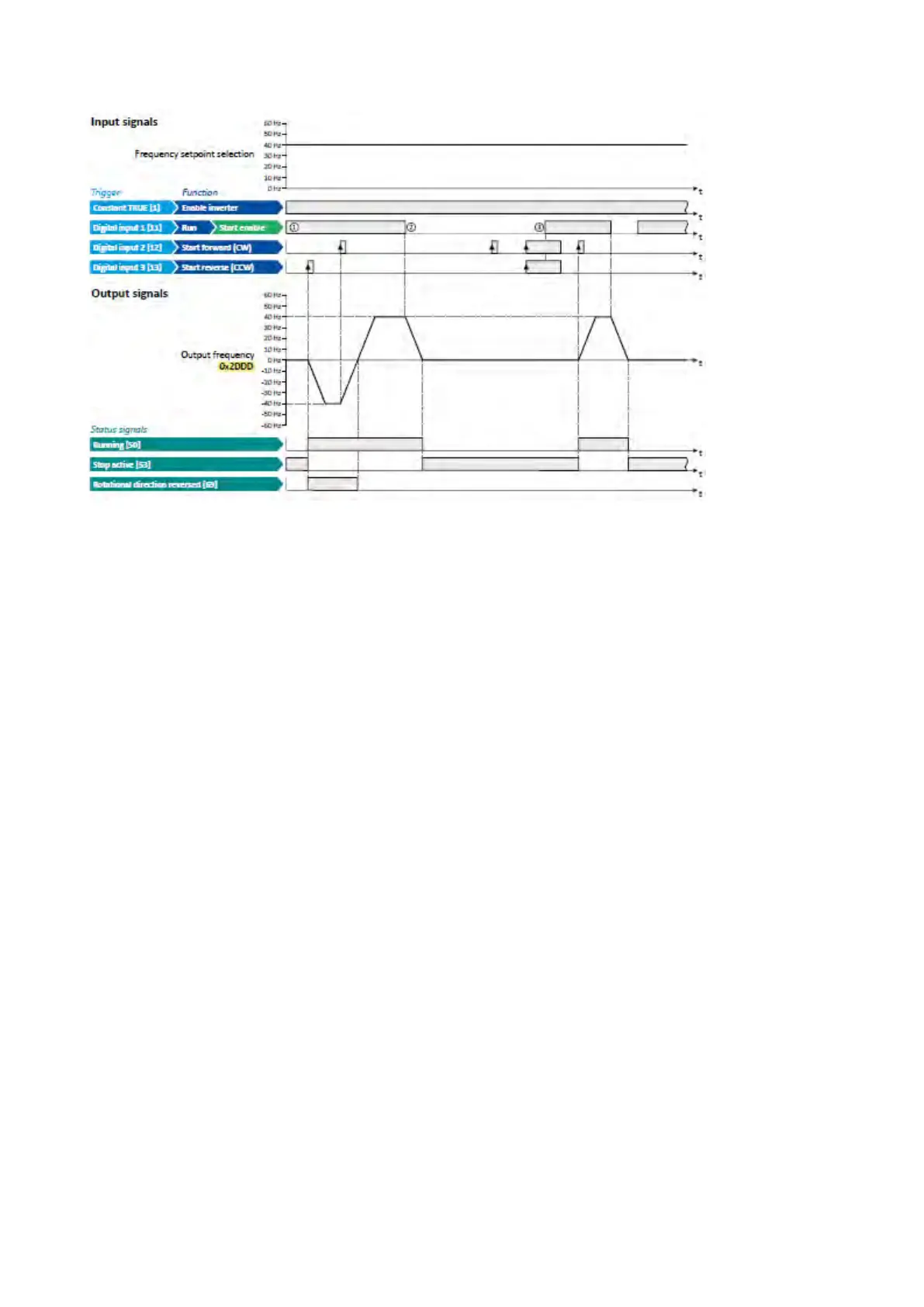

① The "Run" functions serves as start enable for the functions "Start forward (CW)"
and "Start reverse (CCW)".
Without start enable, the motor cannot be started.
② If the start command is cancelled, the motor is stopped with the stop method set in
0x2838:003 (P203.03). In the example: Stop with standard ramp.
③ If, at start enable, "Start forward (CW)" and "Start reverse (CCW)" are already set
to TRUE, the motor remains stopped and the inverter waits for the next valid start
edge.
