418 01-6203-01R3, CG Drives & Automation
The
status
signals can be assigned to digital outputs.
Configuration of digital outputs
429

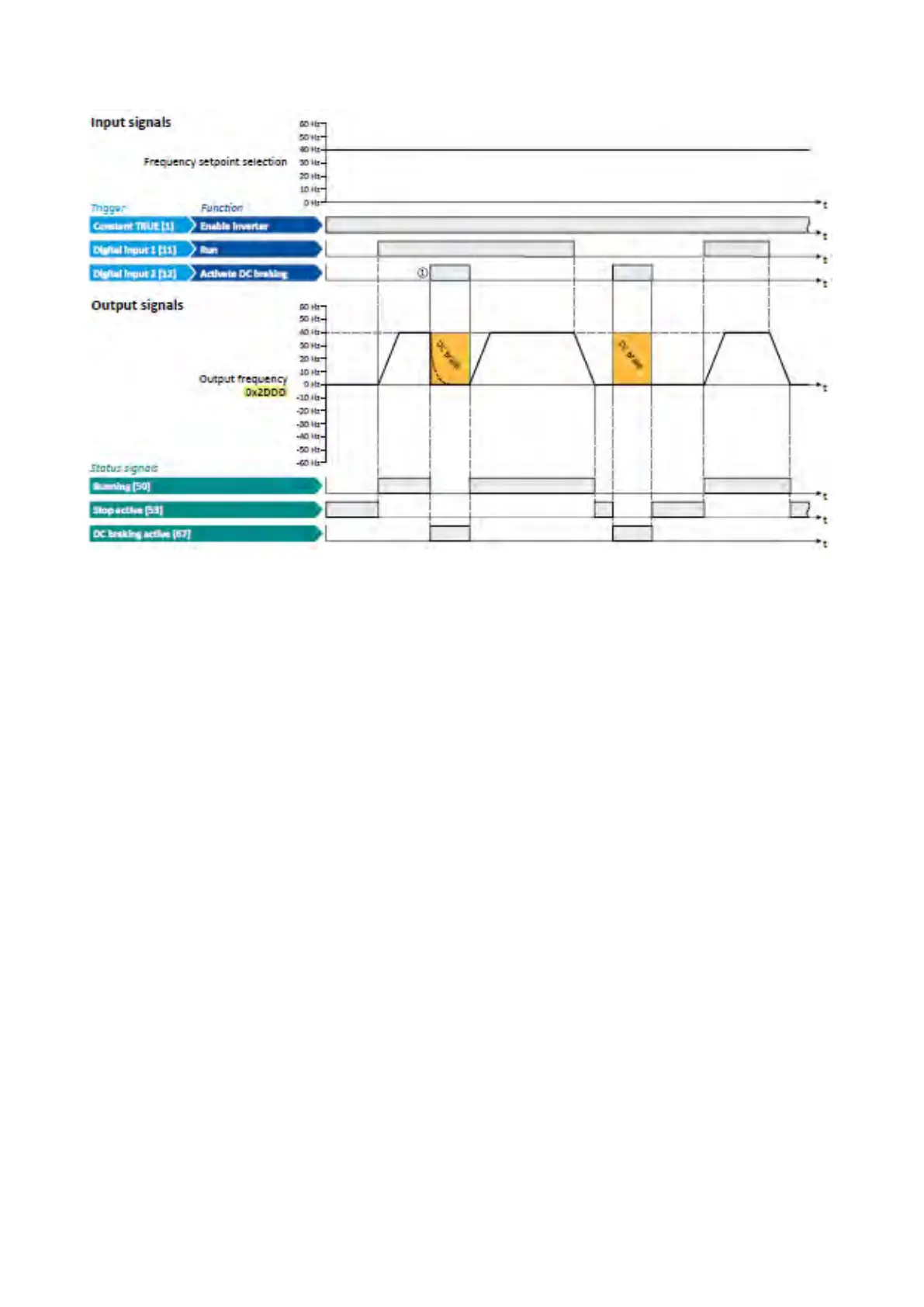

① If DC braking is activated while the motor is running, the output pulses of the
inverter are disabled immediately. For stopping the motor, the current set in
0x2B84:001 (P704.01) is injected. The exact drive behaviour depends on the
settings for the "DC braking" function and the load properties.
