EPSON EPL-N3000/AcuLaser M4000N Revision C
Disassembly and Assembly Cover 169
Confidential
4.2.3 COVER LEFT
Removal
1. Remove the COVER REAR 500. (p.270)
2. Remove the COVER REAR. (p.167)
3. Shift the COVER LEFT in the direction of the arrow and release the three hooks at
the bottom and two hooks at the rear.
4. Move the COVER LEFT downward to release the three hooks at the top, and
remove the COVER LEFT from the printer body.
Installation
1. While moving the COVER LEFT upward, install it to the printer body, and lock
the three hooks at the top.
2. Move the COVER LEFT in the direction of the printer body front, and secure the
COVER LEFT with the two bottom and two rear hooks.
3. Install the COVER REAR. (p.167)
4. Install the COVER REAR 500. (p.270)

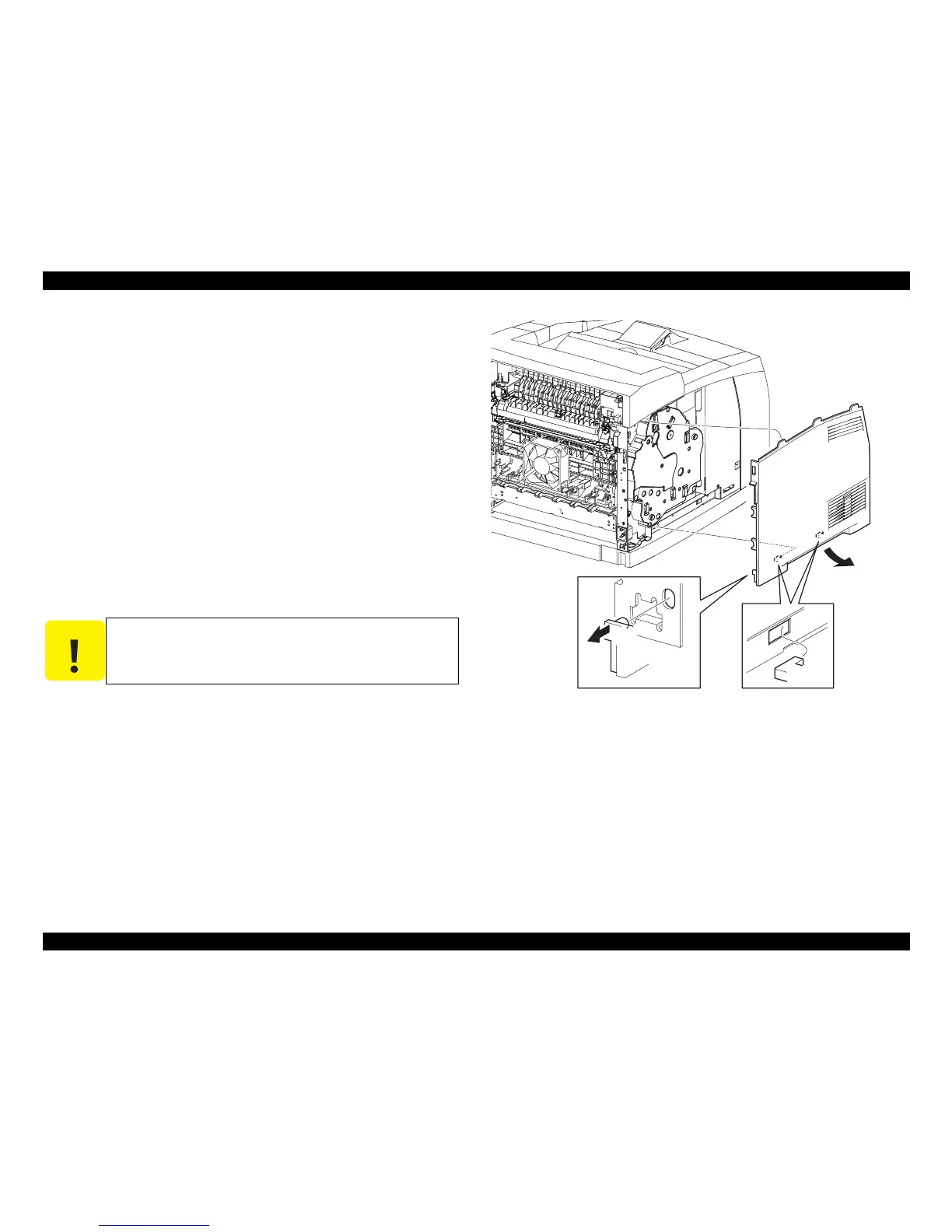

Figure 4- 6. COVER LEFT Removal
C A U T I O N
Pay attention to the difference between the two types of screws and
use them at their correct positions respectively.
JG3005E
A
4)
3)
