EPSON EPL-N3000/AcuLaser M4000N Revision C
Disassembly and Assembly Electrical 296
Confidential
4.10.9 SHIELD PLATE HVPS
Removal
1. Remove the COVER RIGHT. (p.168)
2. Remove the SHIELD ASSY ESS. (p.294)
3. Loosen the ten screws (silver, 6mm) securing the SHIELD PLATE HVPS to the
frame.
4. Remove the SHIELD PLATE HVPS.
Installation
1. Install the SHIELD PLATE HVPS to the frame with the ten screws (silver, 6mm).
2. Install the SHIELD ASSY ESS. (p.294)
3. Install the COVER RIGHT. (p.168)

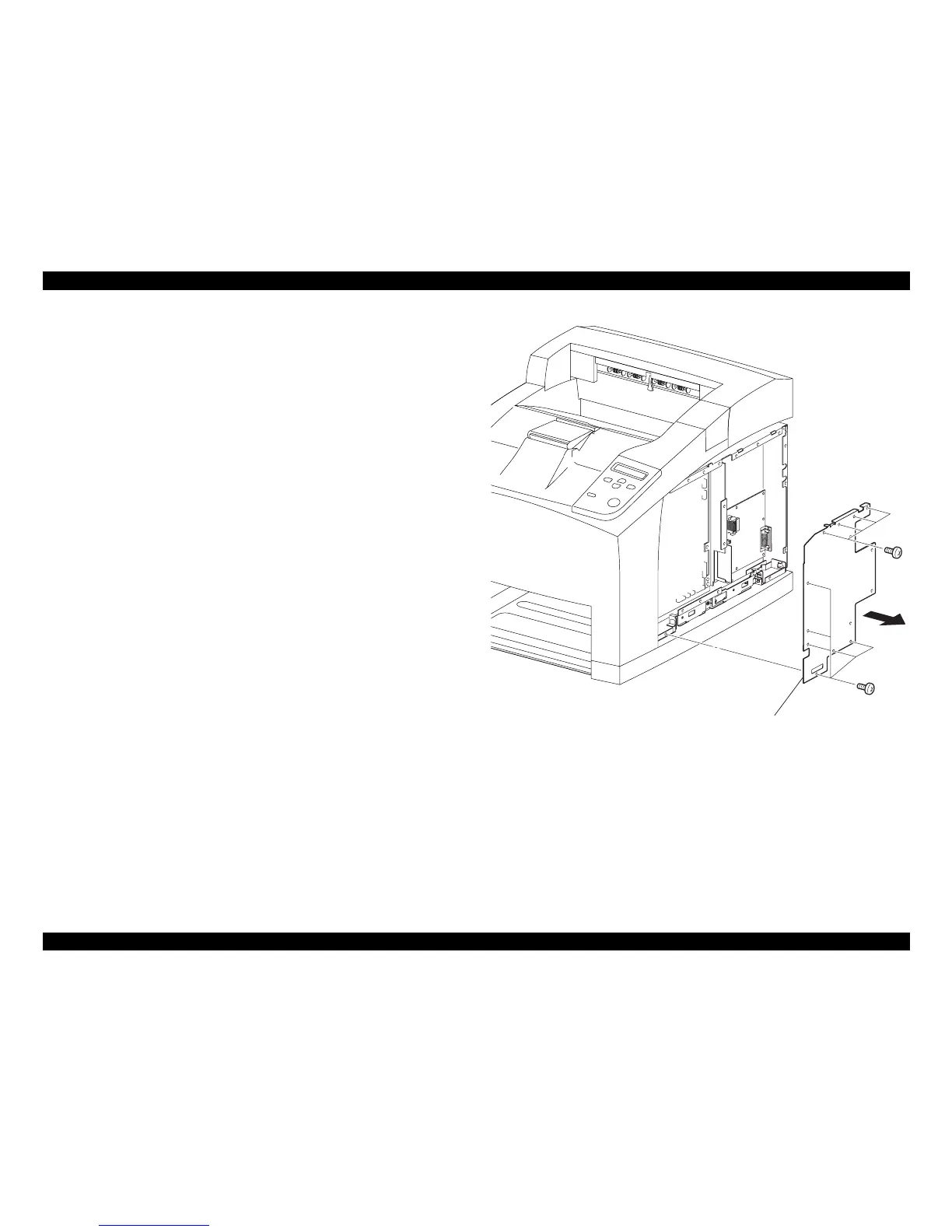

Figure 4- 100. SHIELD PLATE HVPS Removal
JG3025E
A
SHIELD PLATE HVPS
3)
4)
3)
