Epson EPL-N3000 - Roll Assy Turn

EPSON EPL-N3000/AcuLaser M4000N Revision C
Disassembly and Assembly Option 550 Paper Feeder 317
Confidential
4.11.13 ROLL ASSY TURN
Removal
1. Remove the 550 FEEDER OPTION. (p.311)
2. Remove the CLUTCH PR-REGI. (p.319)
3. Remove the E rings securing the BEARINGs FEEDER at both ends of the ROLL
ASSY TURN.
4. Remove the BEARING FEEDER from the CHUTE OUT.
5. Move the ROLL ASSY TURN as indicated by the arrow to remove it from the
CHUTE OUT.
Installation
1. Move the ROLL ASSY TURN in the direction opposite to the arrow, and install it to the
CHUTE OUT.
2. Install the BEARINGs FEEDER to the CHUTE OUT.
3. Install the E rings to both ends of the ROLL ASSY TURN to secure the
BEARINGs FEEDER.
4. Install the CLUTCH PR-REGI. (p.319)
5. Install the 550 FEEDER OPTION. (p.311)

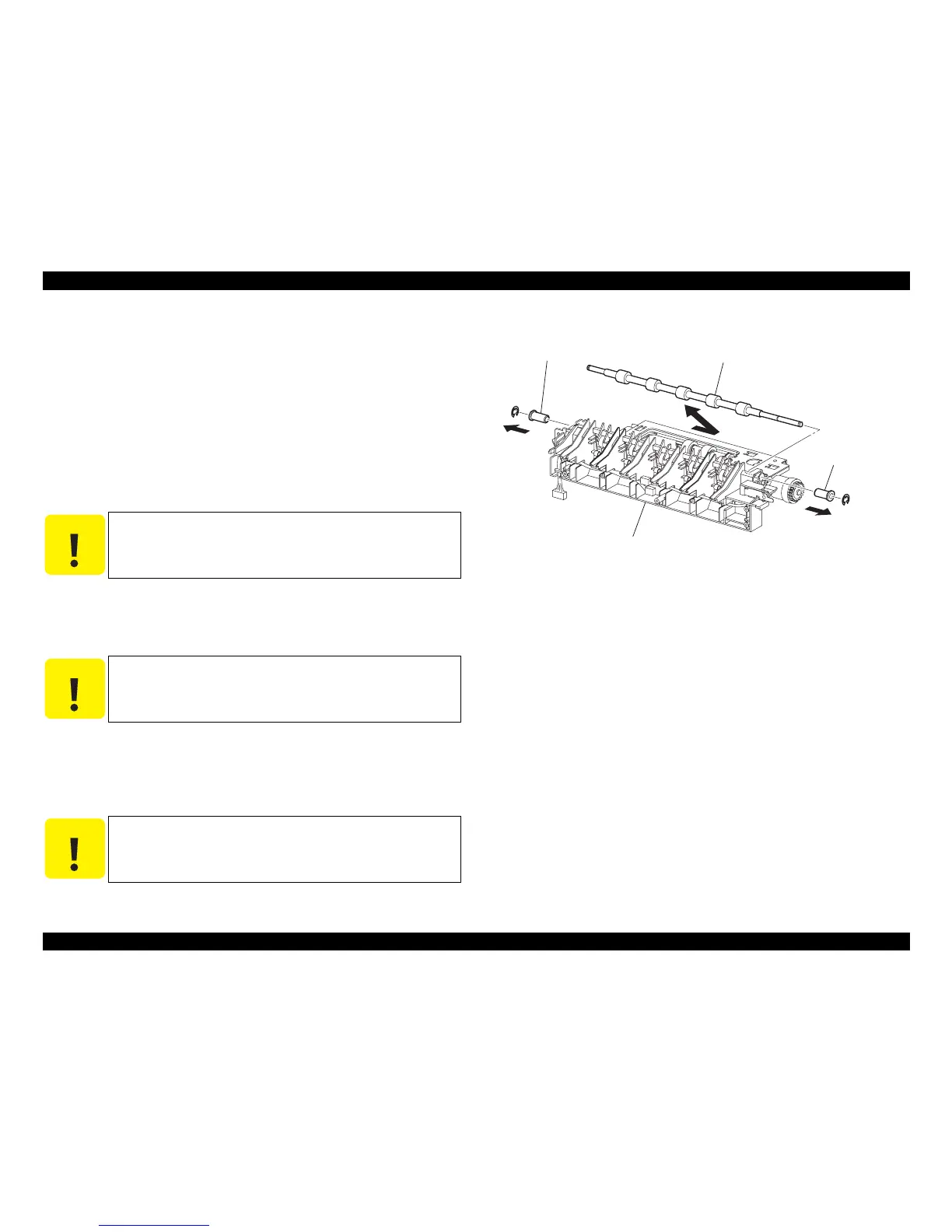

Figure 4- 121. ROLL ASSY TURN Removal
C A U T I O N
In removal, take care not to hold any rubber portion of the ROLL
ASSY TURN.
C A U T I O N
When installing it, take care not to hold any rubber portion of the
ROLL ASSY TURN.
C A U T I O N
When installing it, match the notch of the CLUTCH PR-REGI to
the boss of the CHUTE OUT.
JG3514AA
ROLL ASSY TURN
BEARING FEEDER
BEARING FEEDER
CHUTE OUT
3)
4)
5)
3)
