4.14.10 COVER REAR DUP (AcuLaser M4000N)
1. Remove the HSG UPPER ASSY. (p.343)
2. Remove the COVER LEFT. (p.353)
3. Remove the COVER RIGHT. (p.354)
4. Remove the COVER TOP (AcuLaser M4000N). (p.393)
5. Disconnect the connector of the harness from the connector (P/J54) of the PWBA
DUPLEX.
6. Disconnect the harness of the FAN DUPLEX from the hook of the COVER HSG
DUP.
7. Remove the four screws (gold, tapping, 8mm) securing the COVER REAR DUP
to the COVER HSG DUP.
8. Remove the COVER REAR DUP.
Installation
1. Install the COVER REAR DUP to the COVER HSG DUP with the four screws
(silver, tapping, 8mm).
2. Secure the harness of the FAN DUPLEX with the hook of the COVER HSG DUP.
3. Connect the connector (P/J54) of the harness from the connector of the PWBA
DUPLEX.
4. Install the COVER TOP (AcuLaser M4000N). (p.393)
5. Install the COVER RIGHT. (p.354)
6. Install the COVER LEFT. (p.353)
7. Install the HSG UPPER ASSY. (p.343)

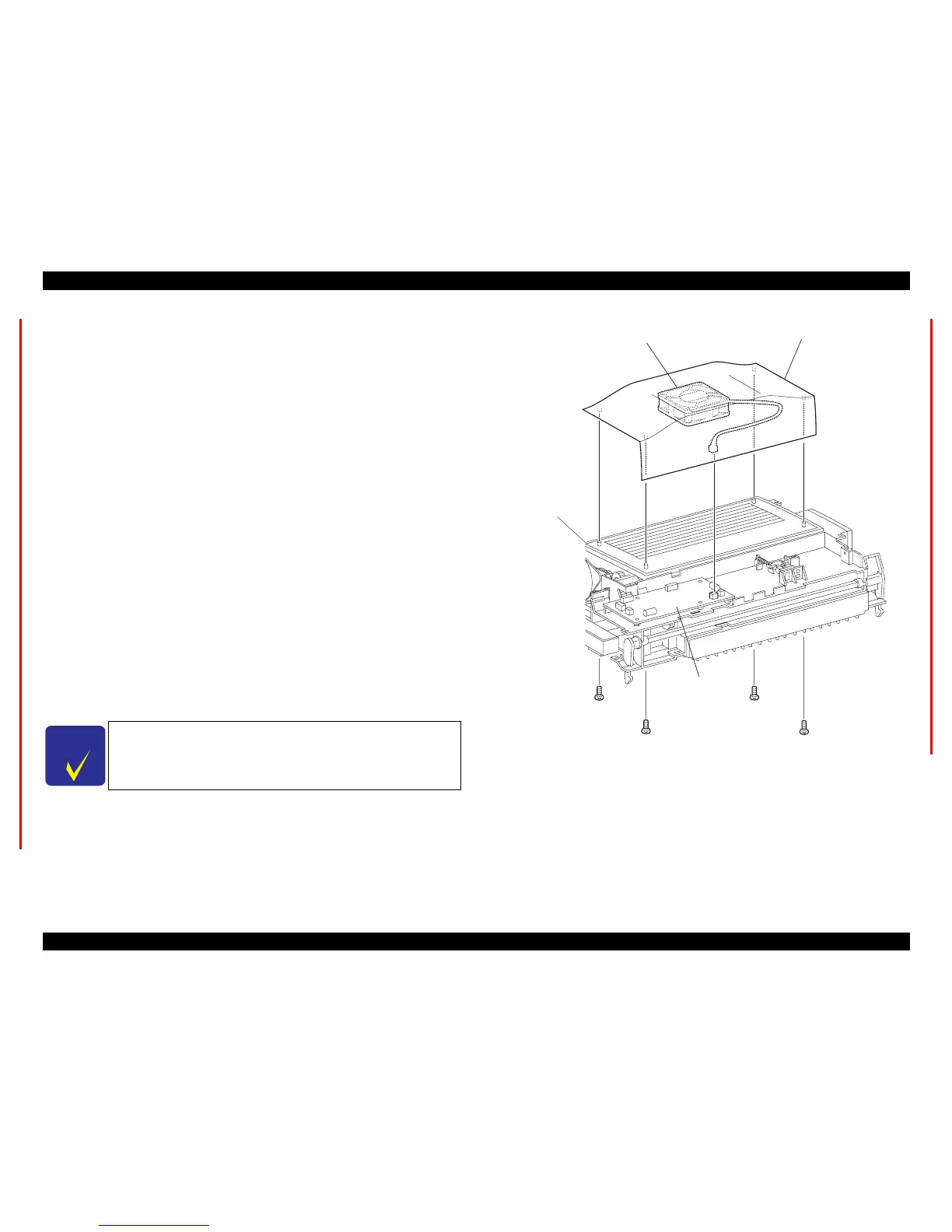

Figure 4- 183. COVER TOP Removal
C H E C K
P O I N T
When installing the COVER RIGHT, match its positioning holes
with the bosses of the COVER HSG DUP.
COVER HSG DUP
JG3604AB
PWBA DUPLEX
FAN DUPLEX
