Epson EPL-N3000 - Guide Tray Right

EPSON EPL-N3000/AcuLaser M4000N Revision C
Disassembly and Assembly 550 Paper Feeder 234
Confidential
4.6.7 GUIDE TRAY RIGHT
Removal
1. Remove the Imaging Cartridge and Paper Cassette.
2. Remove the COVER REAR 500. (p.270)
3. Remove the COVER REAR. (p.167)
4. Remove the FUSER ASSY. (p.253)
5. Remove the COVER LEFT. (p.169)
6. Remove the COVER RIGHT. (p.168)
7. Remove the COVER EXIT 500. (p.261)
8. Remove the 500 EXIT ASSY. (p.262)
9. Remove the COVER TOP, CONTROL PANEL. (p.170)
10. Remove the COVER FRONT. (p.172)
11. Lay the printer body on its right side.
12. Remove the one screw (silver, 6mm) securing the GUIDE TRAY RIGHT to the
frame.
13. Lift the hook of the GUIDE TRAY RIGHT, move the GUIDE TRAY RIGHT in
the direction of the arrow, and remove it from the frame.

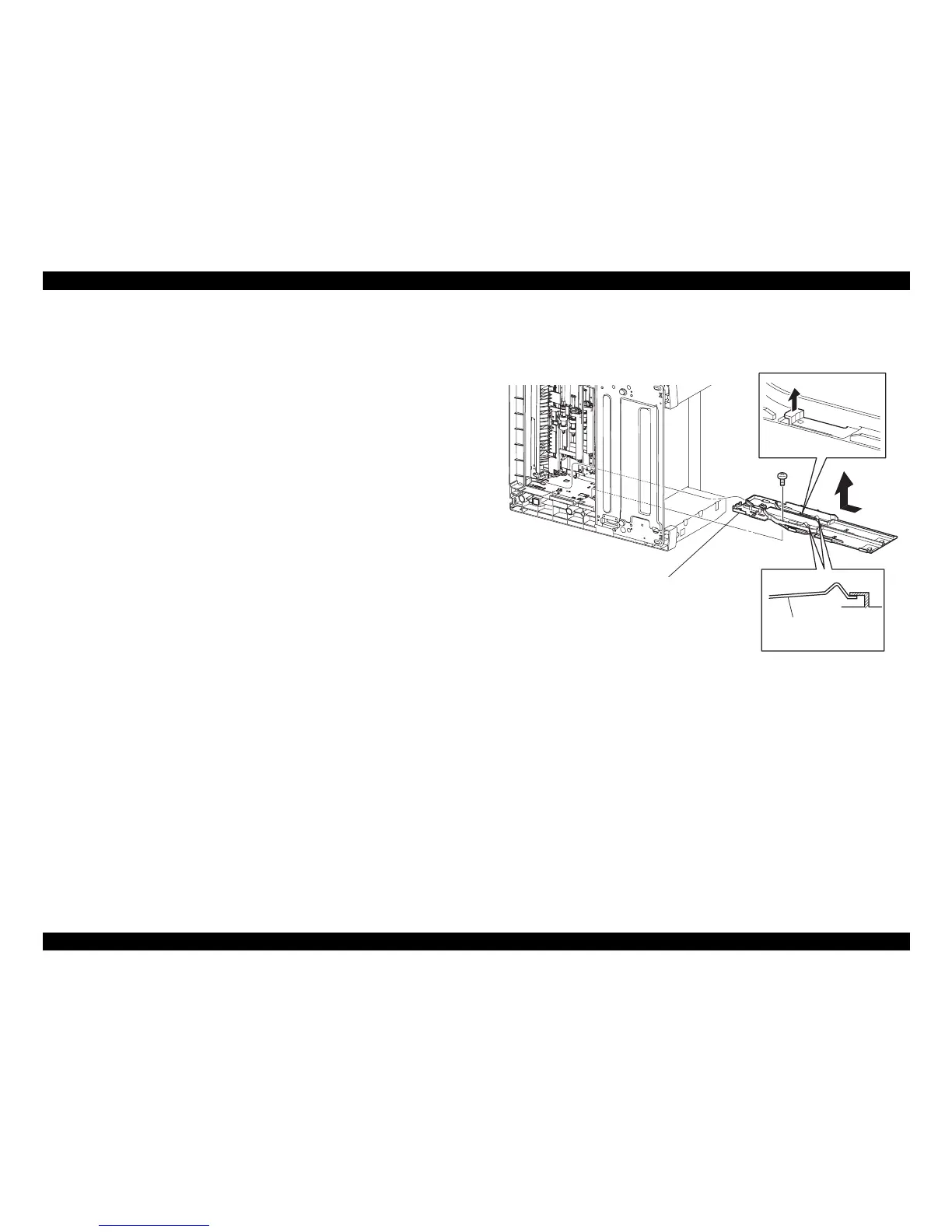

Figure 4- 55. GUIDE TRAY RIGHT Removal
JG3199AB
GUIDE TRAY RIGHT
PLATE CTS LOCK
(NOTE)
14-1)
14-2)
13)
