Epson EPL-N3000 - Board Assy, Memory

EPSON EPL-N3000/AcuLaser M4000N Revision C
Disassembly and Assembly Electrical 302
Confidential
4.10.14 BOARD ASSY, MEMORY
Removal
1. Remove the COVER RIGHT. (p.168)
2. Remove the SHIELD ASSY WINDOW. (p.295)
3. Push the lever of the socket where the BOARD ASSY, MEMORY is inserted and
remove the BOARD ASSY, MEMORY from the BOARD ASSY., MAIN.
Installation
1. Insert the BOARD ASSY, MEMORY to the socket on the BOARD ASSY.,
MAIN.
2. Install the SHIELD ASSY WINDOW. (p.295)
3. Install the COVER RIGHT. (p.168)

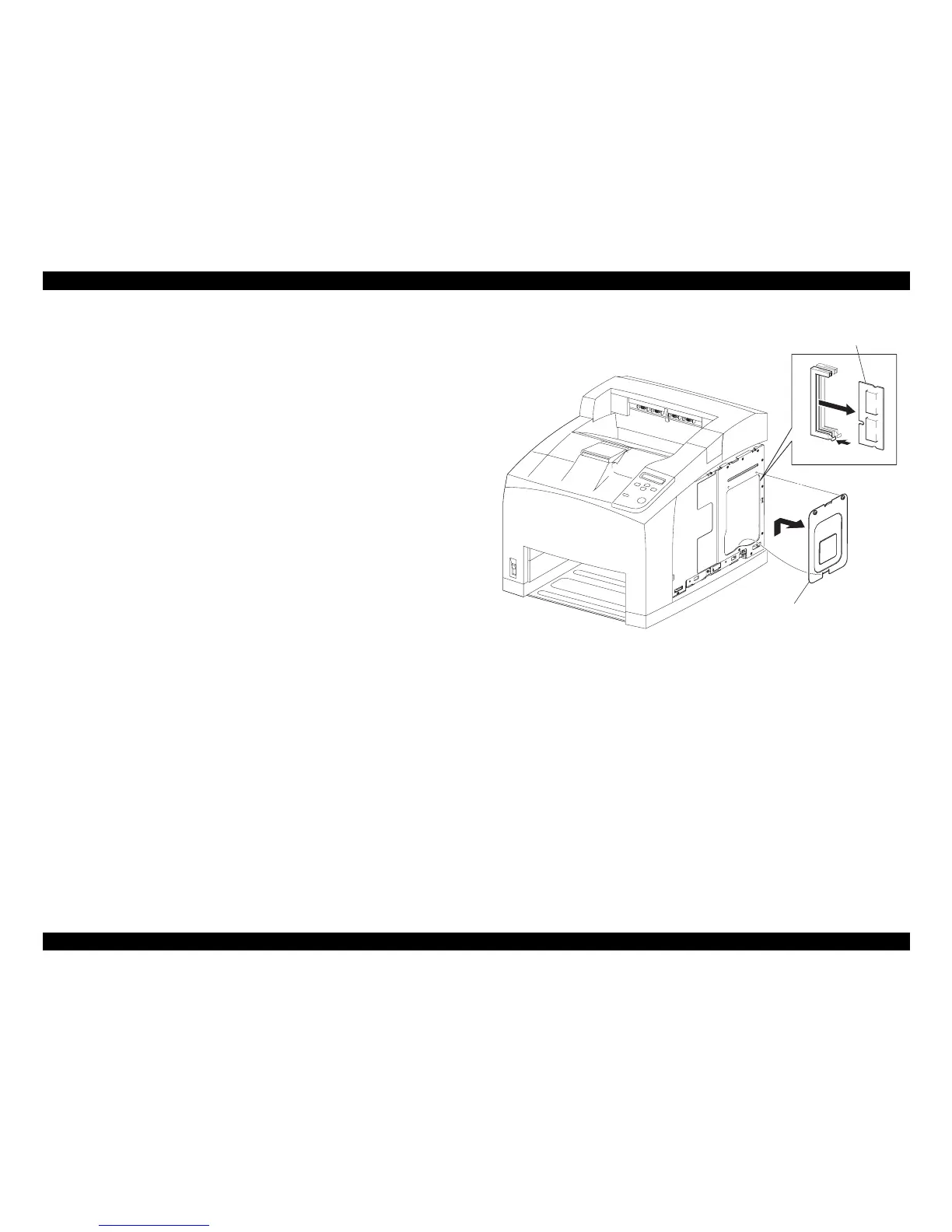

Figure 4- 107. BOARD ASSY, MEMORY
JG3024EA
SHIELD ASSY WINDOW
BOARD ASSY, MEMORY
