4.10.2 PWBA EXIT MOTOR
Removal
1. Remove the COVER REAR 500. (p.270)
2. Remove the COVER REAR. (p.167)
3. Remove the COVER LEFT. (p.169)
4. Disconnect the harnesses from the connectors (P/J101, P/J102, P/J103) of the
PWBA EXIT MOTOR.
5. Remove the two screws (silver, 6mm) securing the PWBA EXIT MOTOR to the
frame.
6. Remove the PWBA EXIT MOTOR.
Installation
1. Install the PWBA EXIT MOTOR to the frame with the two screws (silver, 6mm).
2. Connect the connectors (P/J101, P/J102, P/J103) of the harnesses to the connectors
of the PWBA EXIT MOTOR.
3. Install the COVER LEFT. (p.169)
4. Install the COVER REAR. (p.167)
5. Install the COVER REAR 500. (p.270)

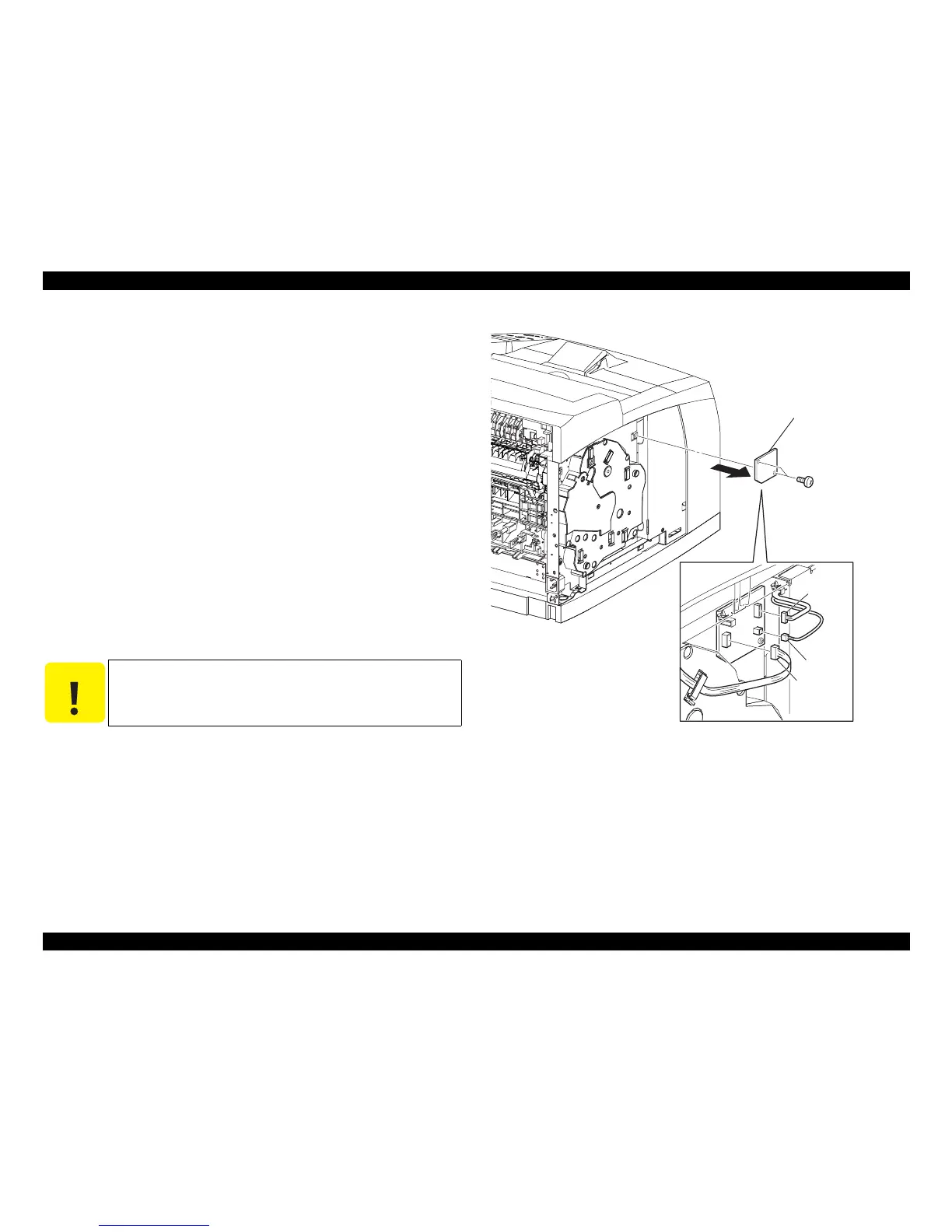

Figure 4- 93. PWBA EXIT MOTOR Removal
C A U T I O N
Pay attention to the difference between the two types of screws and
use them at their correct positions respectively.
JG3021EA
P/J103
P/J101
P/J102
PWBA EXIT MOTO
R
5)
6)
