4.11.6 MOTOR FEEDER
Removal
1. Remove the 550 FEEDER OPTION. (p.311)
2. Remove the COVER LEFT PLATE. (p.305)
3. Remove the SENSOR LOW PAPER. (p.309)
4. Remove the two screws (gold, 6mm) securing the MOTOR FEEDER to the
DRIVE ASSY OPT FDR.
5. Remove the MOTOR FEEDER.
Installation
1. Install the MOTOR FEEDER to the DRIVE ASSY OPT FDR with the two screws
(gold, 6mm).
2. Install the SENSOR LOW PAPER. (p.309)
3. Install the COVER LEFT PLATE. (p.305)
4. Install the 550 FEEDER OPTION. (p.311)

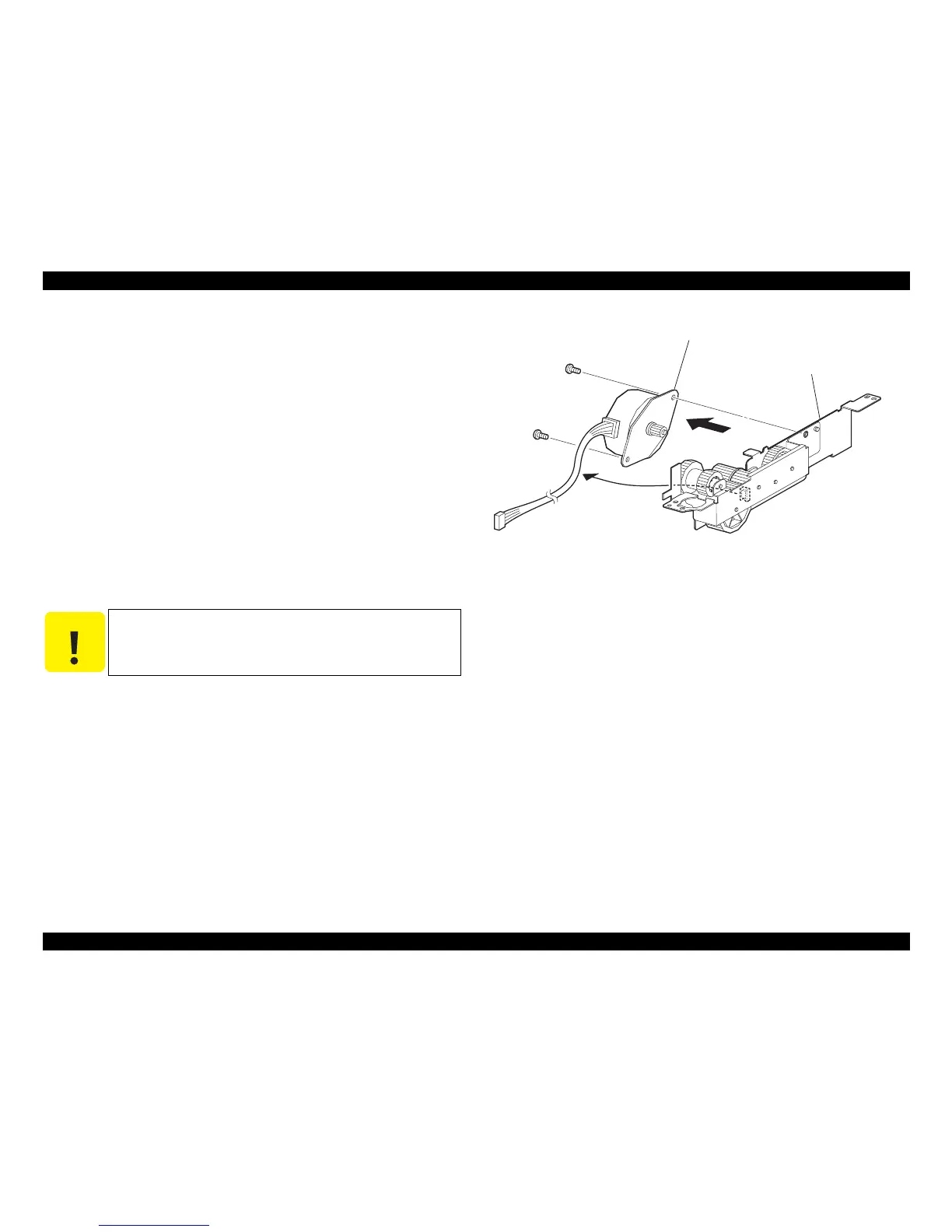

Figure 4- 113. MOTOR FEEDER Removal
C A U T I O N
When installing the EARTH PLATE, insert its front end to under
the COVER LEFT PLATE.
MOTOR FEEDER
DRIVE ASSY OPT FDR
JG3507AA
5)
4)
