4.13.13 MOTOR ASSY OCT
Removal
1. Remove the COVER REAR. (p.362)
2. Remove the COVER OCT. (p.364)
3. Disconnect the connector of the MOTOR ASSY OCT from the HARNESS ASSY
OCT MOT.
4. Remove the two screws (gold, 6mm) securing the MOTOR ASSY OCT, and
remove the MOTOR ASSY OCT.
Installation
1. Install the MOTOR ASSY OCT with the two screws (gold, 6mm).
2. Connect the connector of the MOTOR ASSY OCT to the HARNESS ASSY OCT
MOT.
3. Install the COVER OCT. (p.364)
4. Install the COVER REAR. (p.362)

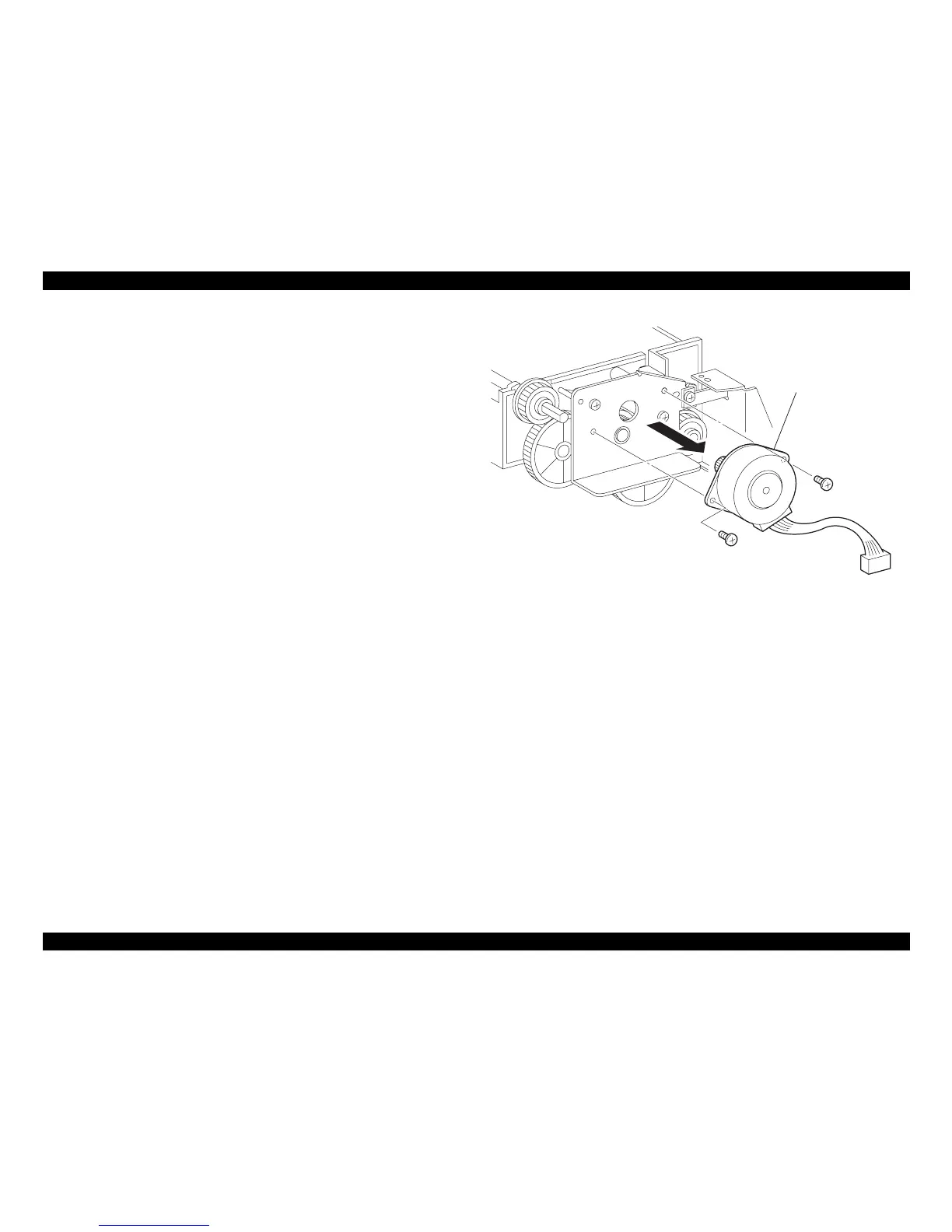

Figure 4- 173. MOTOR ASSY OCT Removal
MOTOR ASSY OCT
(PL23.1.6)
JG3817A
A
4-2)
4-1)
3)
