Epson EPL-N3000 - Actuator Full Stack

EPSON EPL-N3000/AcuLaser M4000N Revision C
Disassembly and Assembly Option OCT 367
Confidential
4.13.6 ACTUATOR FULL STACK
Removal
1. Remove the COVER REAR. (p.362)
2. Remove the COVER OCT. (p.364)
3. After turning the flap of the ACTUATOR FULL STACK in the direction of the
arrow (1), release the hook of the HOUSING OCT, and move the ACTUATOR
FULL STACK in the direction of the arrow (2) to remove it from the printer body.
Installation
1. Lift the ACTUATOR FULL STACK in the direction of the arrow (1). In this
position, engage the ACTUATOR FULL STACK with the hook, and then move it
in the direction opposite to the arrow (2) to install.
2. Install the COVER OCT. (p.364)
3. Install the COVER REAR. (p.362)

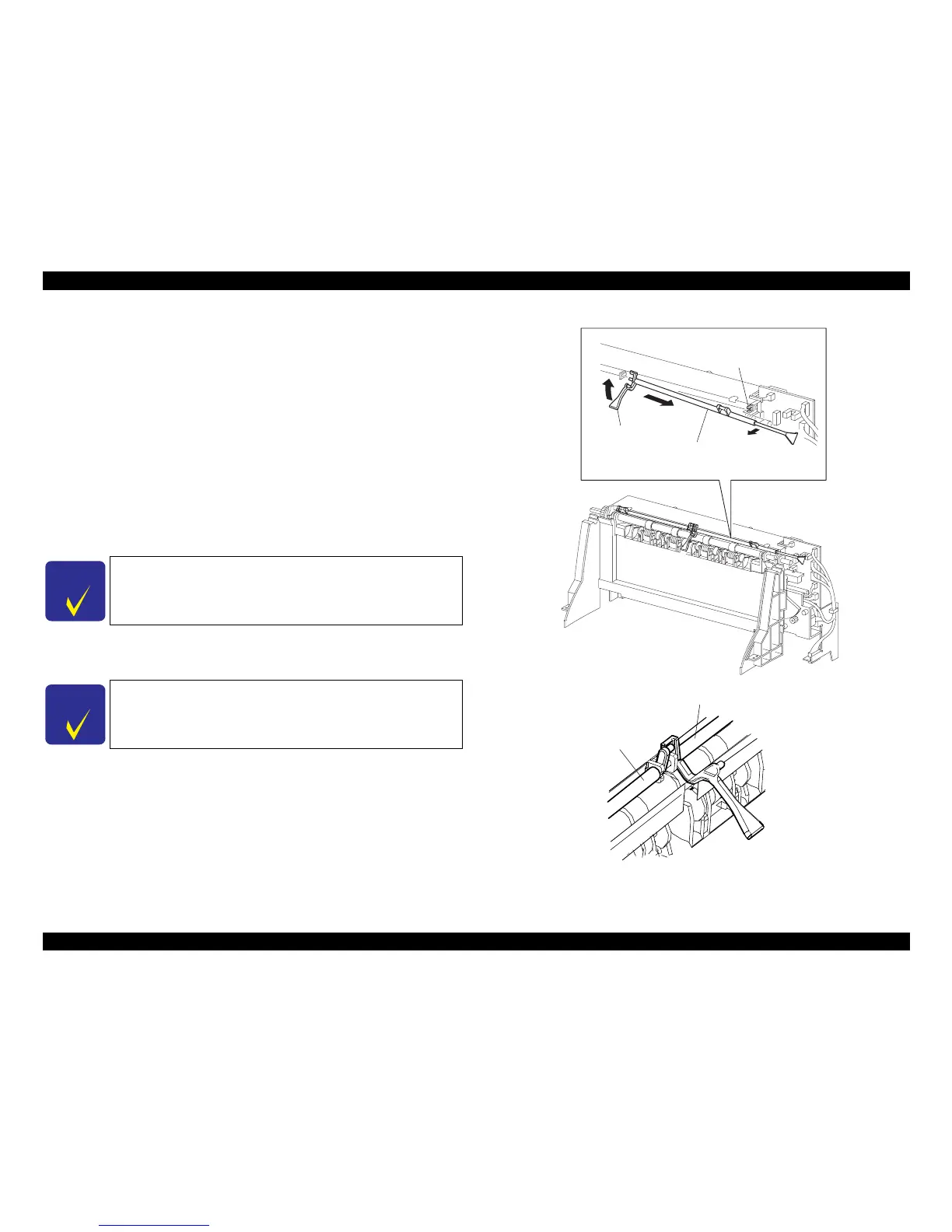

Figure 4- 163. ACTUATOR FULL STACK Removal
C H E C K
P O I N T
When installing the ACTUATOR FULL STACK to the printer
body, combine it with the SHAFT FULL STACK as shown in the
figure.
C H E C K
P O I N T
After installation, move the FLAPPER L and make sure that the
ACTUATOR FULL STACK operates synchronously.At the same
time make also sure that the FLAPPER R moves smoothly.
HOOK
ACTUATOR FULL STACK
FLAP
(1)
(2)
JG3807AB
ACTUATOR FULL STACK
SHAFT FULL STACK
JG3822AA
