EPSON EPL-N3000/AcuLaser M4000N Revision C
Disassembly and Assembly 500 Paper Exit 270
Confidential
4.8.9 COVER REAR 500
Removal
1. Grip the lever to unlock, and open the COVER REAR 500.
2. Move and remove the STOPPER FSR in the direction of the arrow.
3. Release the hook on the boss of the COVER REAR 500 and shift the COVER
REAR 500 in the direction of the arrow, and remove it from the printer body.
Installation
1. Move the COVER REAR 500 in the direction opposite to the arrow, fit it into the
printer body, and lock the hook of the boss.
2. After inserting the A portion of the STOPPER FSR into the COVER REAR 500,
install the opposite side of the A portion.
3. Close the COVER REAR 500.

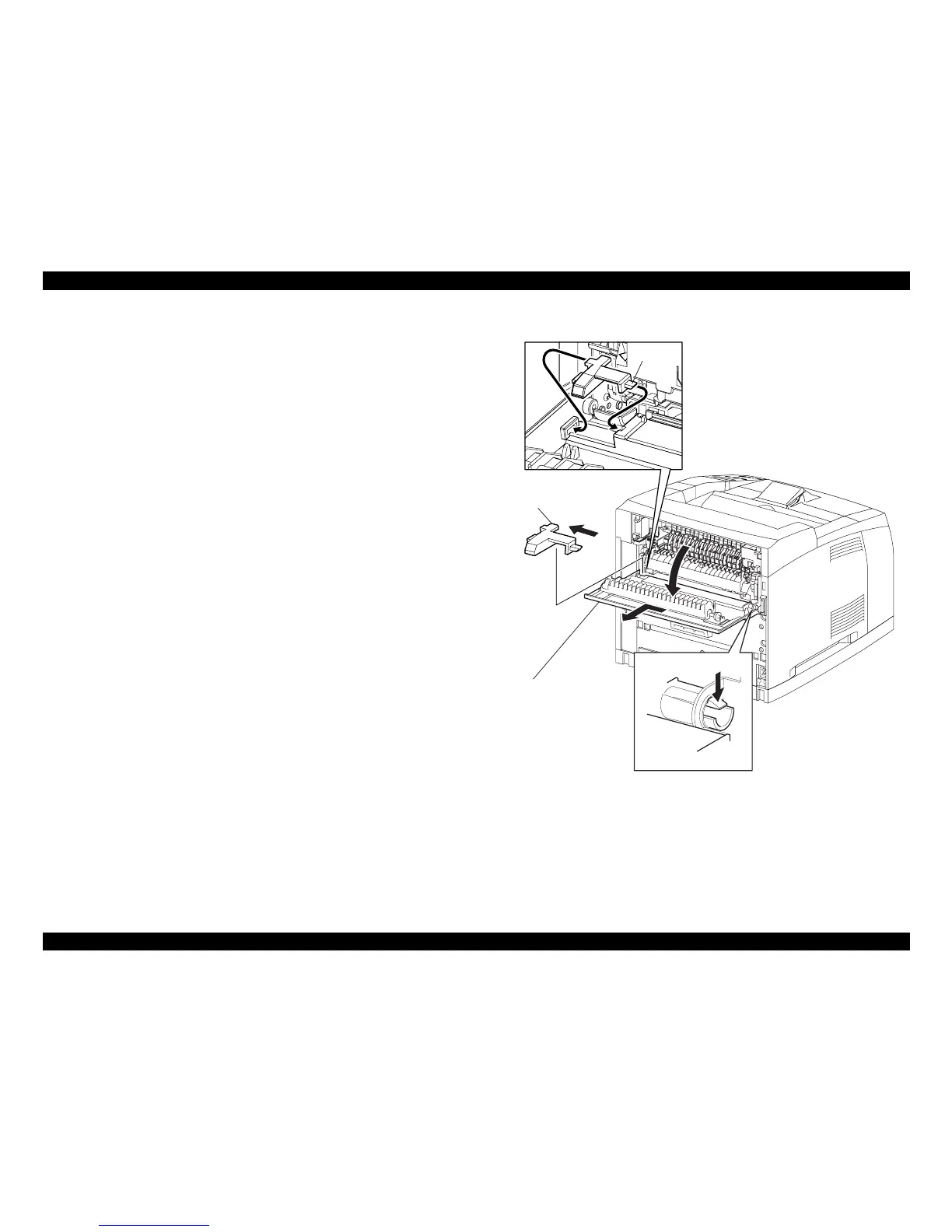

Figure 4- 81. COVER REAR 500 Removal
JG3018EA
COVER REAR 500
STOPPER FSR
A Protion
WHEN ASSEMBLING
1-2)
1-1)
3)
2)
