4.8.12 LEVER LATCH LEFT, SPRING LATCH FU,
LEVER LATCH RIGHT
Removal
1. Remove the COVER REAR 500. (p.270)
2. Remove the five screws (gold, tapping, 6mm) securing the CHUTE LOW FU to
the COVER REAR 500.
3. Release the hook of the COVER REAR 500, and remove the CHUTE LOW FU
from the COVER REAR 500.
4. Remove the ROLL FU. (p.271)
5. Remove the LEVER GATE HOLDER, SPRING LEVER GATE, LEVER GATE FU.
(p.272)
6. Rotate the LEVER LATCH LEFT in the direction of the arrow, and remove it.
7. Rotate the LEVER LATCH RIGHT in the direction of the arrow and remove it.
8. Remove the SPRING LATCH FU.
Installation
1. Install the SPRING LATCH FU.
2. Install the LEVER LATCH LEFT to the PIPE LATCH FU and the CHUTE LOW
FU.
3. Install the LEVER LATCH RIGHT to the PIPE LATCH FU.
4. Match the projections of both the LEVER LATCH RIGHT and LEVER LATCH
LEFT to the notches of the CHUTE LOW FU, and rotate it in the opposite
direction of the arrow, and then install it.
5. Install the LEVER GATE HOLDER, SPRING LEVER GATE, LEVER GATE FU.
(p.272)
6. Install the ROLL FU. (p.271)
7. Install the CHUTE LOW FU to the COVER REAR 500, and secure it at the hook.
8. Secure the CHUTE LOW FU to the COVER REAR 500 with the five screws
(gold, tapping, 6mm).
9. Install the COVER REAR 500. (p.270)

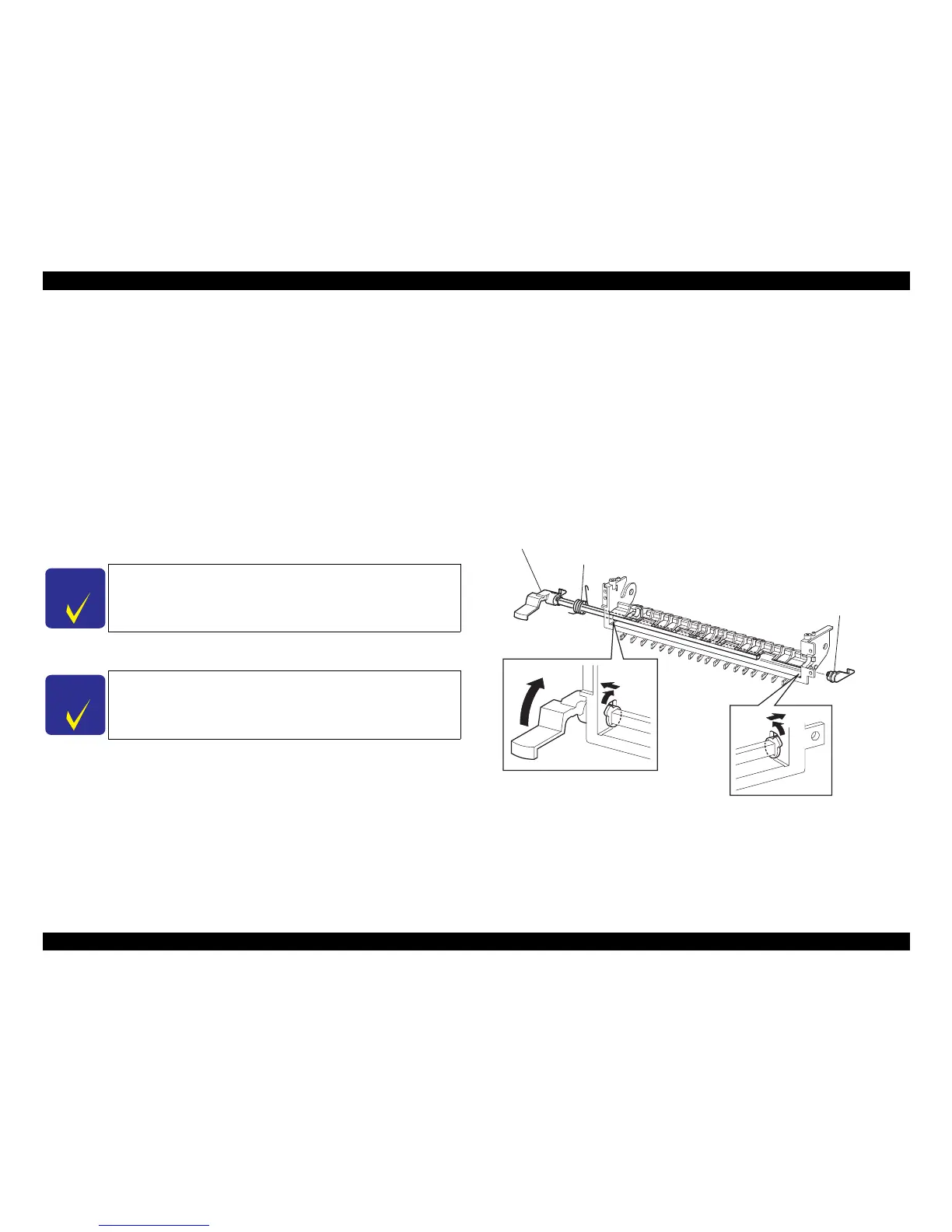

Figure 4- 84. LEVER LATCH LEFT, SPRING LATCH FU,
LEVER LATCH RIGHT Removal
C H E C K
P O I N T
Securely match the projection located inside the LEVER LATCH
LEFT and the notch of the CHUTE LOW FU.
C H E C K
P O I N T
 Securely match the projection located inside the LEVER
LATCH RIGHT and the notch of the CHUTE LOW FU.
 The PIPE LATCH FU will detach simultaneously with the
LEVER LATCH RIGHT.
LEVER LATCH RIGHT
LEVER LATCH LEFT
SORING LATCH FU
JG3304AA
