Epson EPL-N3000 - Guide Rail Type-B, Spring Type-B

EPSON EPL-N3000/AcuLaser M4000N Revision C
Disassembly and Assembly Electrical 297
Confidential
4.10.10 GUIDE RAIL TYPE-B, SPRING TYPE-B
Removal
1. Remove the COVER RIGHT. (p.168)
2. Remove the SHIELD ASSY ESS. (p.294)
3. Slide the SPRING TYPE-B to left while raising the tabs of the SPRING TYPE-B
to release it from the bosses, and remove it from the GUIDE RAIL TYPE-B.
4. Remove the 2 screws securing the SHIELD CONT OPTION to the PANEL REAR
and remove the SHIELD CONT OPTION.
5. Release the 4 hooks securing the GUIDE RAIL TYPE-B to the BOARD ASSY.,
MAIN.
6. Remove the GUIDE RAIL TYPE-B.
Installation
1. Install the GUIDE RAIL TYPE-B to the BOARD ASSY., MAIN with the 4 hooks.
2. Install the SHIELD CONT OPTION to the PANEL REAR with the 2 screws.
3. Install the SPRING TYPE-B to the GUIDE RAIL TYPE-B.
4. Install the SHIELD ASSY ESS. (p.294)
5. Install the COVER RIGHT. (p.168)

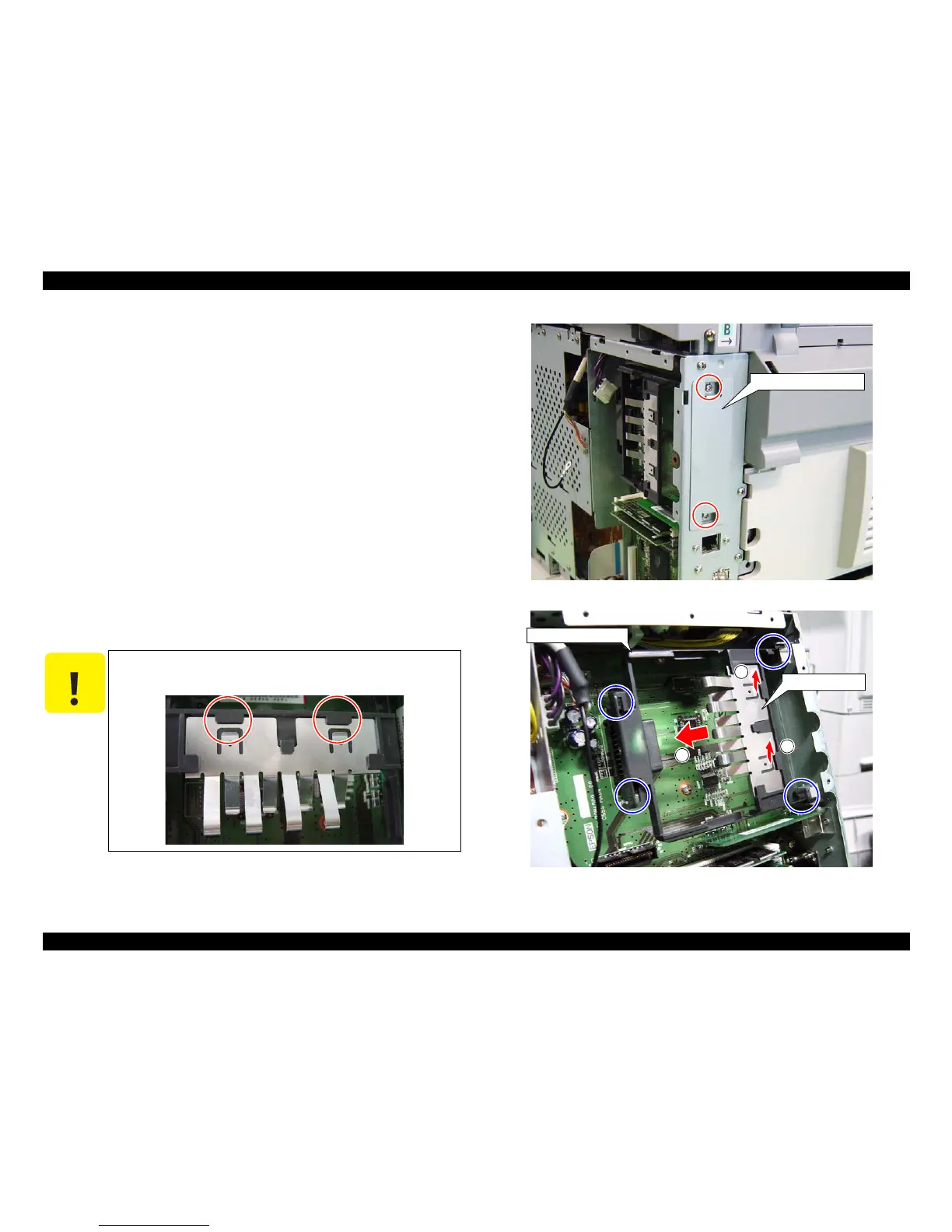

Figure 4- 101. GUIDE RAIL TYPE-B, SPRING TYPE-B_1
Figure 4- 102. GUIDE RAIL TYPE-B, SPRING TYPE-B_2
C A U T I O N
Be sure to insert the edge of the SPRING TYPE-B under the tab of
the GUIDE RAIL TYPE-B.
SHIELD CONT OPTION
SPRING TYPE-B
GUIDE RAIL TYPE-B
1
2
1
