EPSON EPL-N3000/AcuLaser M4000N Revision C
Disassembly and Assembly Option OCT 370
Confidential
4.13.8 MOTOR ASSY OFFSET
Removal
1. Remove the COVER REAR. (p.362)
2. Remove the COVER OCT. (p.364)
3. Remove the PWBA OCT. (p.368)
4. Remove the two screws (gold, tapping, 8mm) securing the MOTOR ASSY
OFFSET to the printer body.
5. Remove the MOTOR ASSY OFFSET.
Installation
1. Install the MOTOR ASSY OFFSET to the printer body with the two screws (gold,
tapping, 8mm).
2. Install the PWBA OCT. (p.368)
3. Install the COVER OCT. (p.364)
4. Install the COVER REAR. (p.362)

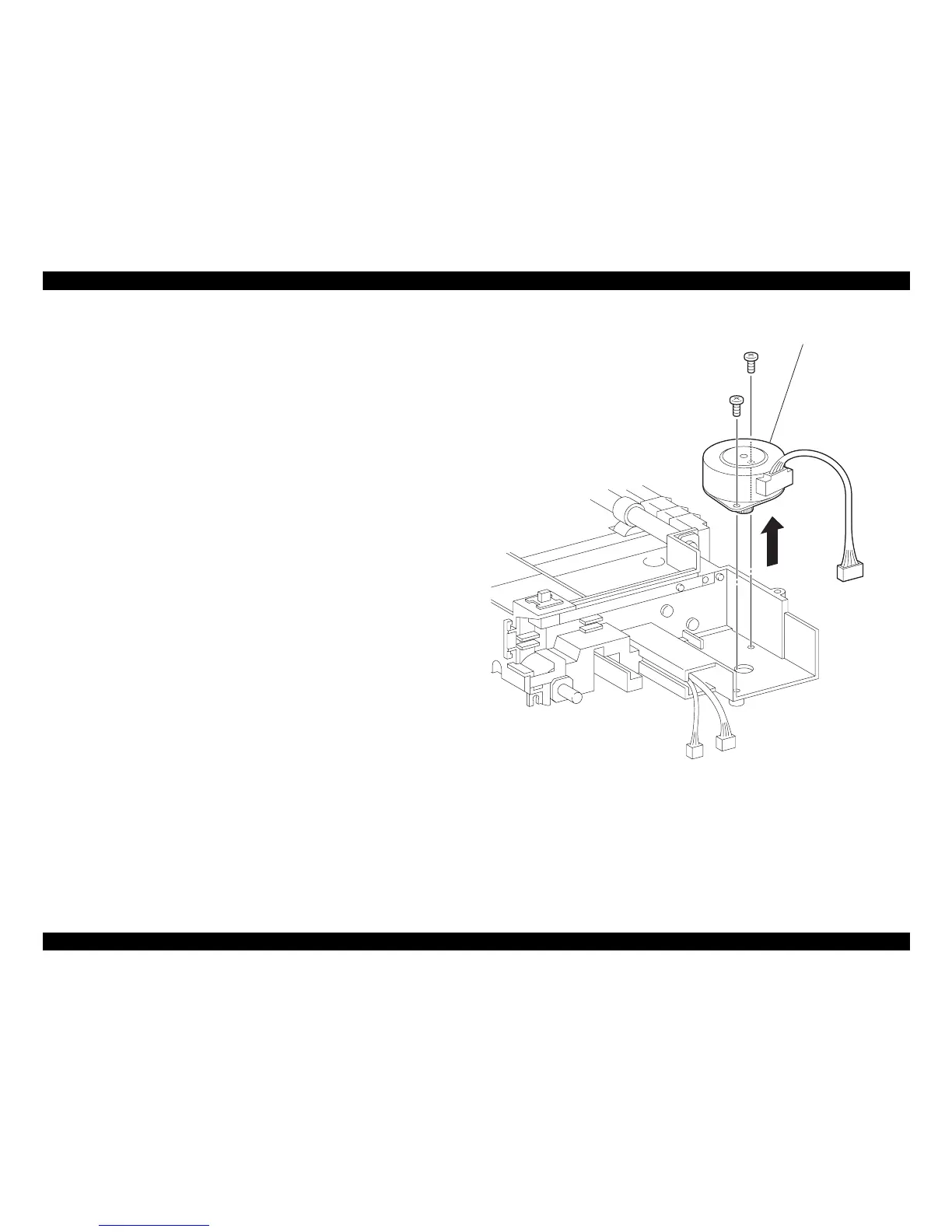

Figure 4- 165. MOTOR ASSY OFFSET Removal
MOTOR ASSY OFFSET
JG3809AA
4)
5)
