EPSON EPL-N3000/AcuLaser M4000N Revision C
Disassembly and Assembly AcuLaser M4000N Unique Disassembly Procedures 392
Confidential
4.14.8 FAN MAIN (AcuLaser M4000N)
Removal
1. Remove the COVER REAR 500. (p.270)
2. Remove the COVER REAR (AcuLaser M4000N). (p.379)
3. Remove the two screws (silver, tapping, 8mm) securing the FAN MAIN to the
COVER REAR, and remove the FAN MAIN.
Installation
1. Install the FAN MAIN to the COVER REAR with the two screws (silver, tapping,
8mm).
2. Install the COVER REAR (AcuLaser M4000N). (p.379)
3. Install the COVER REAR 500. (p.270)

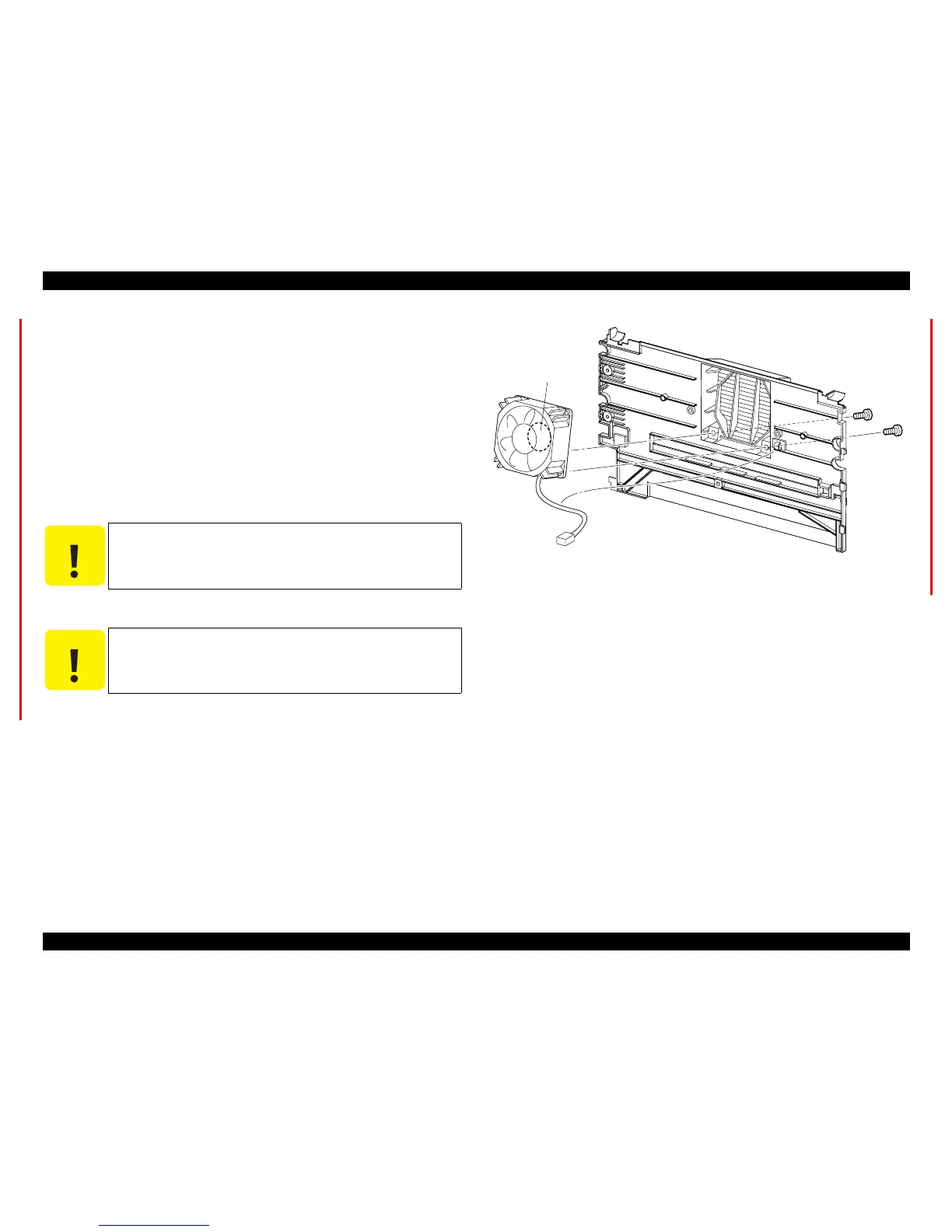

Figure 4- 181. FAN MAIN Removal
C A U T I O N
 Install the FAN MAIN with its label surface located on the
outside.
 When installing the FAN MAIN, be careful so that the harness
is not caught between the FAN MAIN and COVER REAR.
C A U T I O N
Pay attention to the difference between the two types of screws and
use them at their correct positions respectively.
J23165A
A
LABEL
