4.14.2 COVER TOP, CONTROL PANEL
(AcuLaser M4000N)
Removal
1. Remove the COVER REAR 500. (p.270)
2. Remove the COVER REAR (AcuLaser M4000N). (p.379)
3. Remove the COVER LEFT. (p.169)
4. Remove the COVER RIGHT. (p.168)
5. Remove the COVER EXIT 500. (p.261)
6. Remove the 500 EXIT ASSY. (p.262)
7. Remove the two screws (silver, with a collar, 8 mm) securing the COVER TOP.
8. Disengage the LEVER LINK from the boss on the COVER OPEN.
9. Release the two hooks at the front of the COVER TOP from the COVER FRONT,
and remove and slightly separate the COVER TOP from the printer body.
10. Disconnect the connector (P/J1) of the CONTROL PANEL.
11. Release the harnesses of the CONTROL PANEL from the two tabs of the COVER
TOP.
12. Remove the COVER TOP.
13. Release the two hooks securing the CONTROL PANEL to the COVER TOP, and
remove the CONTROL PANEL.

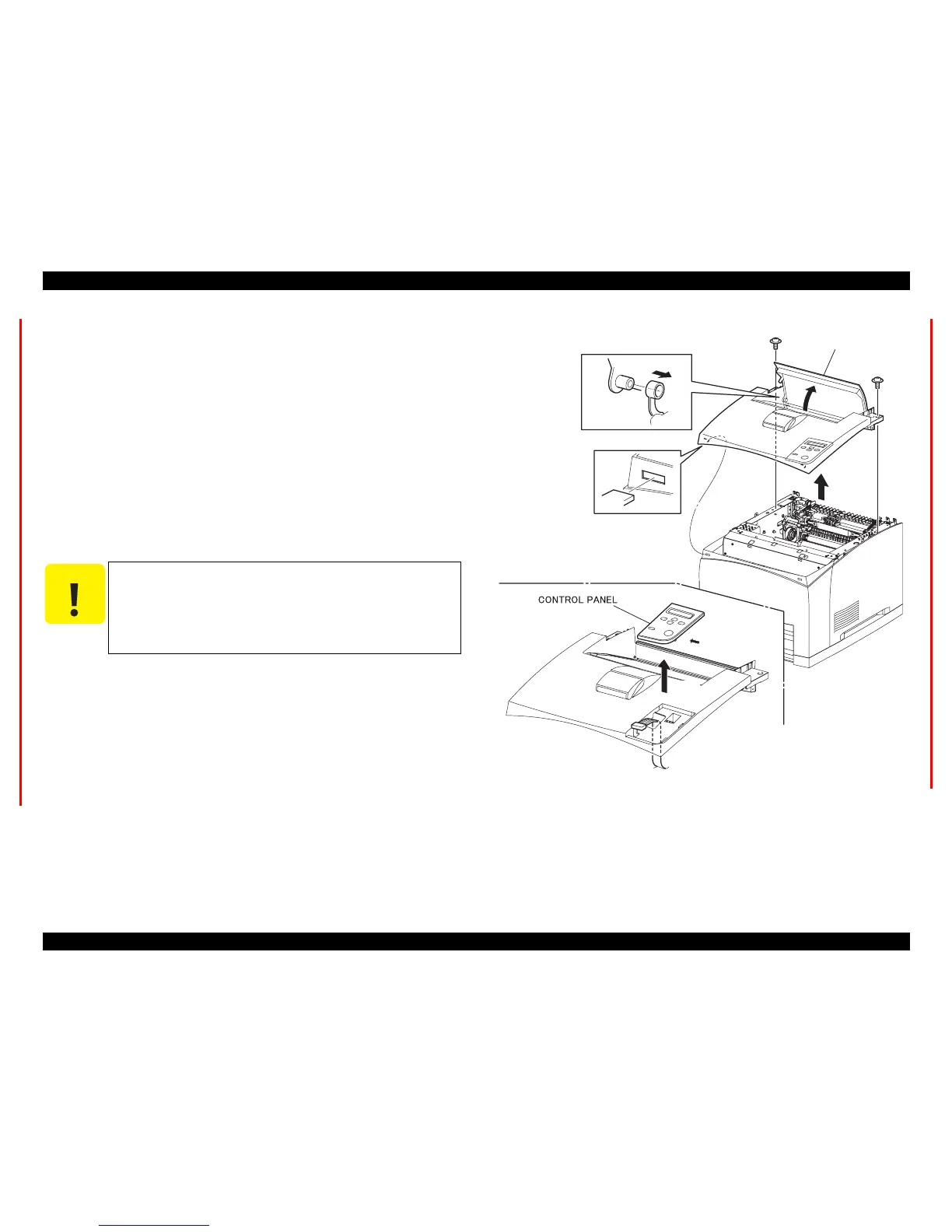

Figure 4- 175. COVER TOP, CONTROL PANEL Removal
C A U T I O N
 Open the COVER OPEN and stretch the LEVER LINK first,
and then disengage the LEVER LINK from the COVER
OPEN.
 The OPERATION PANEL mounted on the COVER TOP is
connected to the printer body with the connector. When doing
the following work, do not separate them too far.
J23146E
A
COVER OPEN
7)
12)
8)
9)
10)
13)-1
13-2)
