4.14.4 CLUTCH ASSY PH, CLUTCH REGI
(AcuLaser M4000N)
Removal
1. Remove the COVER REAR 500. (p.270)
2. Remove the FUSER ASSY. (p.253)
3. Remove the COVER REAR (AcuLaser M4000N). (p.379)
4. Remove the CHUTE TRANSFR. (p.255)
5. Remove the 150 FEEDER ASSY (AcuLaser M4000N). (p.382)
6. Remove the E-ring retaining the CLUTCH ASSY PH and remove the CLUTCH
ASSY PH from the SHAFT FEED.
7. Remove the E-ring retaining the CLUTCH REGI and remove the CLUTCH REGI
from the ROLL REGI METAL.

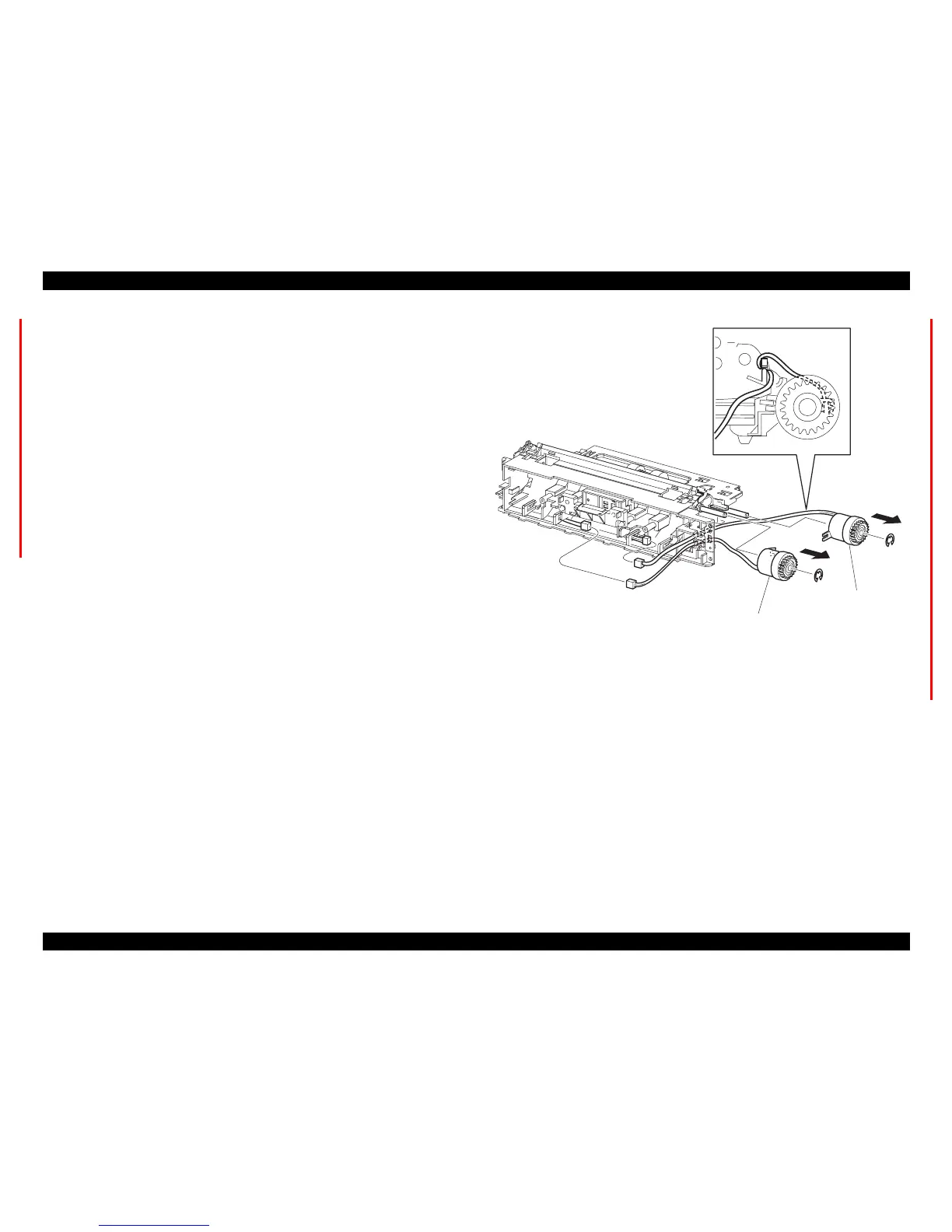

Figure 4- 177. CLUTCH ASSY PH, CLUTCH REGI Removal
JG3035EB
CLUTCH REGI
CLUTCH ASSY PH
Note 1)
6)
7)
