EPSON EPL-N3000/AcuLaser M4000N Revision C
Disassembly and Assembly Option Duplex 354
Confidential
4.12.10 COVER RIGHT
Removal
1. Remove the two screws (gold, tapping, 8mm) securing the COVER RIGHT.
2. Remove the COVER RIGHT from the COVER HSG DUP.
Installation
1. Install the COVER RIGHT to the COVER HSG DUP with the two screws (gold,
tapping, 8mm).

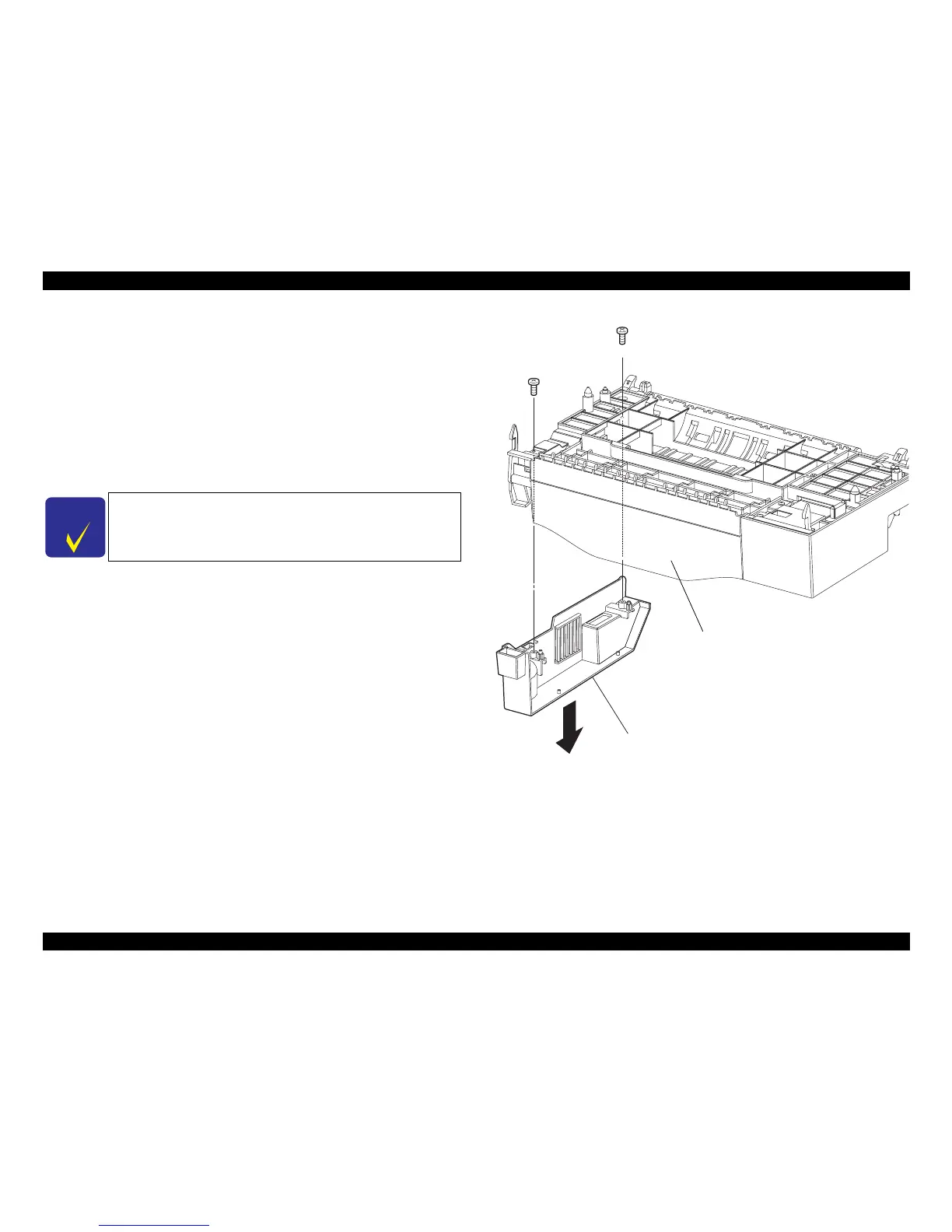

Figure 4- 153. COVER RIGHT Removal
C H E C K
P O I N T
When installing the COVER RIGHT, match its positioning holes
with the bosses of the COVER HSG DUP.
COVER RIGHT
COVER HSG DUP
JG3610AB
2)
1)
