EPSON EPL-N3000/AcuLaser M4000N Revision C
Disassembly and Assembly Cover 172
Confidential
4.2.5 COVER FRONT
Removal
1. Remove the COVER REAR 500. (p.270)
2. Remove the COVER REAR. (p.167)
3. Remove the COVER LEFT. (p.169)
4. Remove the COVER RIGHT. (p.168)
5. Remove the COVER EXIT 500. (p.261)
6. Remove the 500 EXIT ASSY. (p.262)
7. Remove the COVER TOP, CONTROL PANEL. (p.170)
8. While pushing the two hooks at the top of the COVER FRONT, tilt the COVER
FRONT toward front.
9. Shift the COVER FRONT in the direction of the arrow and release the two hooks
at the bottom of the COVER FRONT, and remove it from the printer body.
Installation
1. Fit the two hooks at the bottom of the COVER FRONT into the printer body.
2. Fit the two hooks at the top of the COVER FRONT into the printer body to secure
the COVER FRONT to the printer body.
3. Install the COVER TOP, CONTROL PANEL. (p.170)
4. Install the 500 EXIT ASSY. (p.262)
5. Install the COVER EXIT 500. (p.261)
6. Install the COVER RIGHT. (p.168)
7. Install the COVER LEFT. (p.169)
8. Install the COVER REAR. (p.167)
9. Install the COVER REAR 500. (p.270)

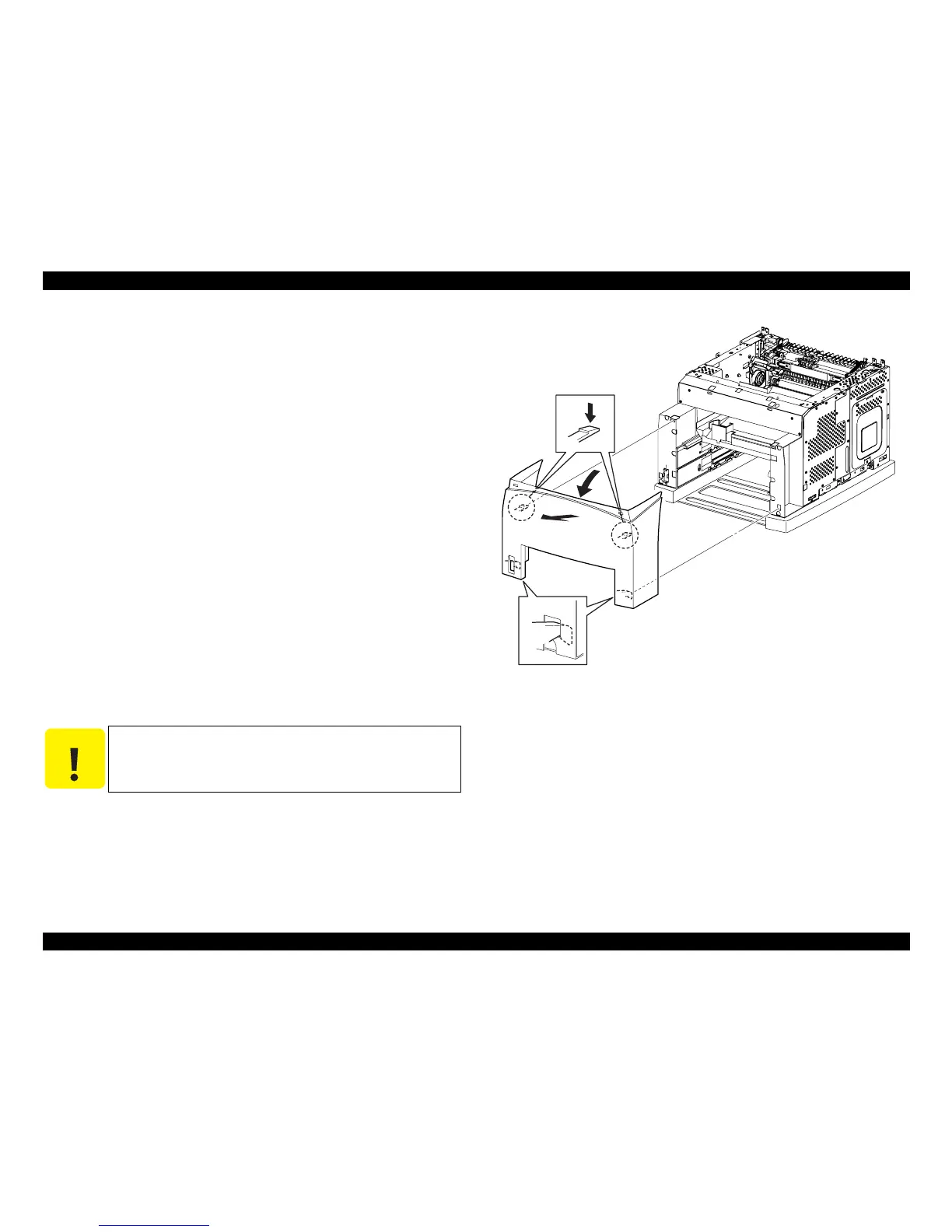

Figure 4- 8. COVER FRONT Removal
C A U T I O N
When installing it, pass the harnesses of the MOTOR ASSY EXIT
and HARNESS ASSY EXIT SNR1 through the hole of the frame.
JG3171AA
(1)
(2)
8)
9)
