Epson EPL-N3000 - Gear Lever Lock, Lever Btm Lock

EPSON EPL-N3000/AcuLaser M4000N Revision C
Disassembly and Assembly Option 550 Paper Feeder 333
Confidential
4.11.22 GEAR LEVER LOCK, LEVER BTM LOCK
Removal
1. Remove the COVER CST from the 550 PAPER CASSETTE.
2. Unlock the LOCK EXTENSION, and draw out the cassette extension.
3. While pushing the lock of the STOPPER GEAR, unlock the LEVER BTM LOCK,
and raise the PLATE ASSY BTM.
4. Remove the one screw (gold, tapping, 8mm) securing the PLATE GEAR LOCK
550 on the GEAR PB R side.
5. Release the hook of the PLATE GEAR LOCK 550, and remove the PLATE
GEAR LOCK 550 from the HOUSING BASE 550.
6. Release the hook of the GEAR PB R and remove the GEAR PB R from the
SHAFT PB.
7. Remove the 2 screw (gold, tapping, 6 mm) securing the COVER BTM UP 550,
and remove the COVER BTM UP 550 from the HOUSING BASE 550.
8. Carefully handle the hooks of the GUIDE ASSY END as they may be damaged if
large force is applied.
9. Remove the RACK BTM LOCK 550 and SPRING BTM LOCK together from the
HOUSING BASE 550.
10. Remove the GEAR BTM LOCK from the HOUSING BASE 550.
11. Remove the GEAR LEVER LOCK from the HOUSING BASE 550.
12. Remove the two screws (gold, tapping, 6 mm) securing the STOPPER GEAR, and
remove the STOPPER GEAR and SPRING STOPPER GEAR from the
HOUSING BASE 550.

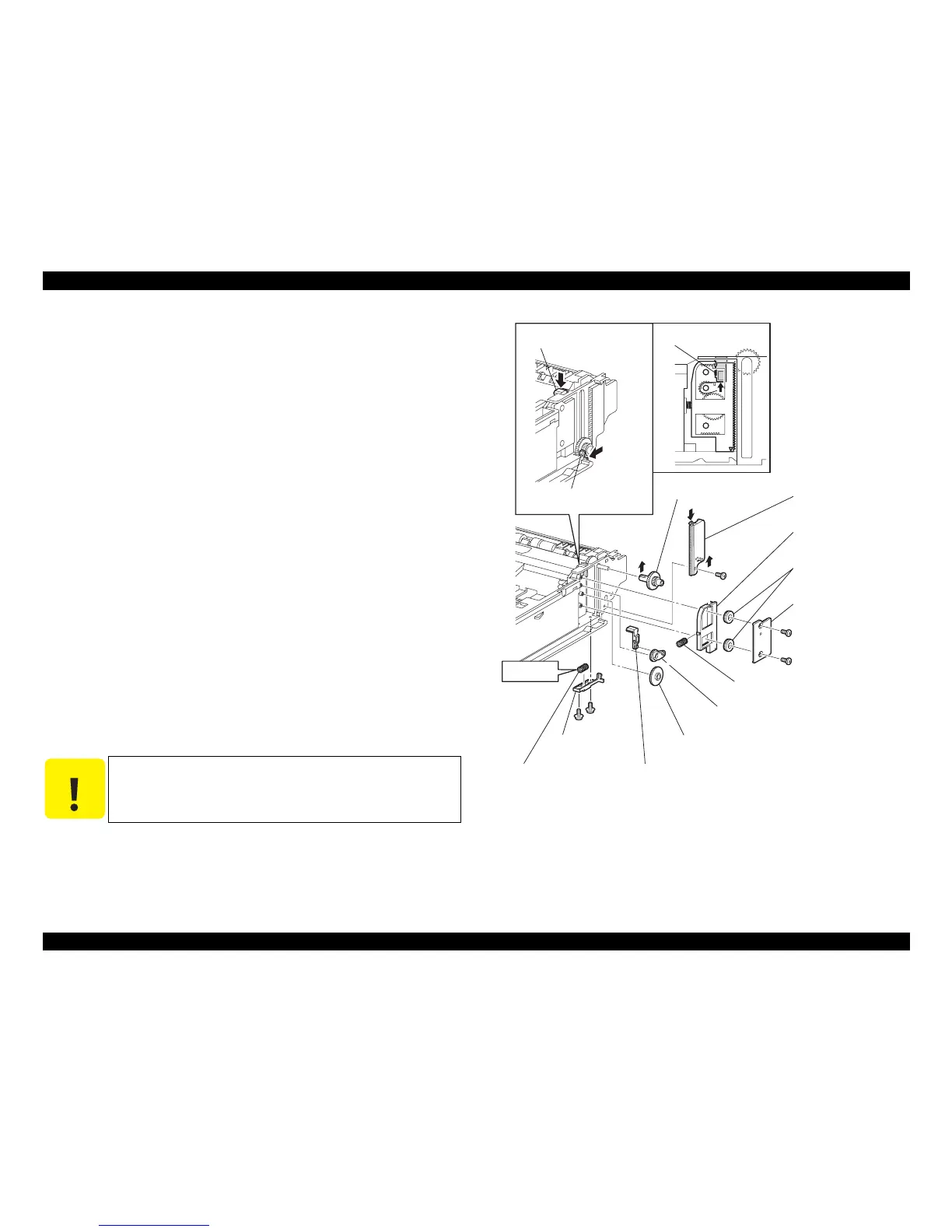

Figure 4- 135. GEAR LEVER LOCK, LEVER BTM LOCK Removal
C A U T I O N
During removal/installation of the STOPPER GEAR, take care not
to lose the SPRING STOPPER GEAR.
SPRING BTM LOCK
LEVER BTM LOCK
STOPPER GEAR
GEAR LEVEL LOCK
GEAR BTM LOCK PINION
GEAR BTM LOCK
RACK BTM LOCK 550
COVER BTM UP 550
SPRING STOPPER GEAR
PLATE GEAR LOCK 550
GEAR PB R
NOTE1)
STOPPER
LEVER BTM LOCK
STOPPER GEAR
SEE NOTE2
3)
5)
6)
4)
9-1)
8)
7)
9-2)
11)
10)
12)
5)
