4.10.12 BOARD ASSY., MAIN
Removal
1. Remove the COVER RIGHT. (p.168)
2. Remove the SHIELD ASSY ESS. (p.294)
3. Remove the GUIDE RAIL TYPE-B, SPRING TYPE-B. (p.297)
4. Remove the BOARD ASSY. SUB. (p.298)
5. Disconnect 3 connectors on the BOARD ASSY., MAIN.
6. Remove the 1 screw securing the grounding wire.
7. Remove the 9 screws securing the BOARD ASSY., MAIN to the printer body.

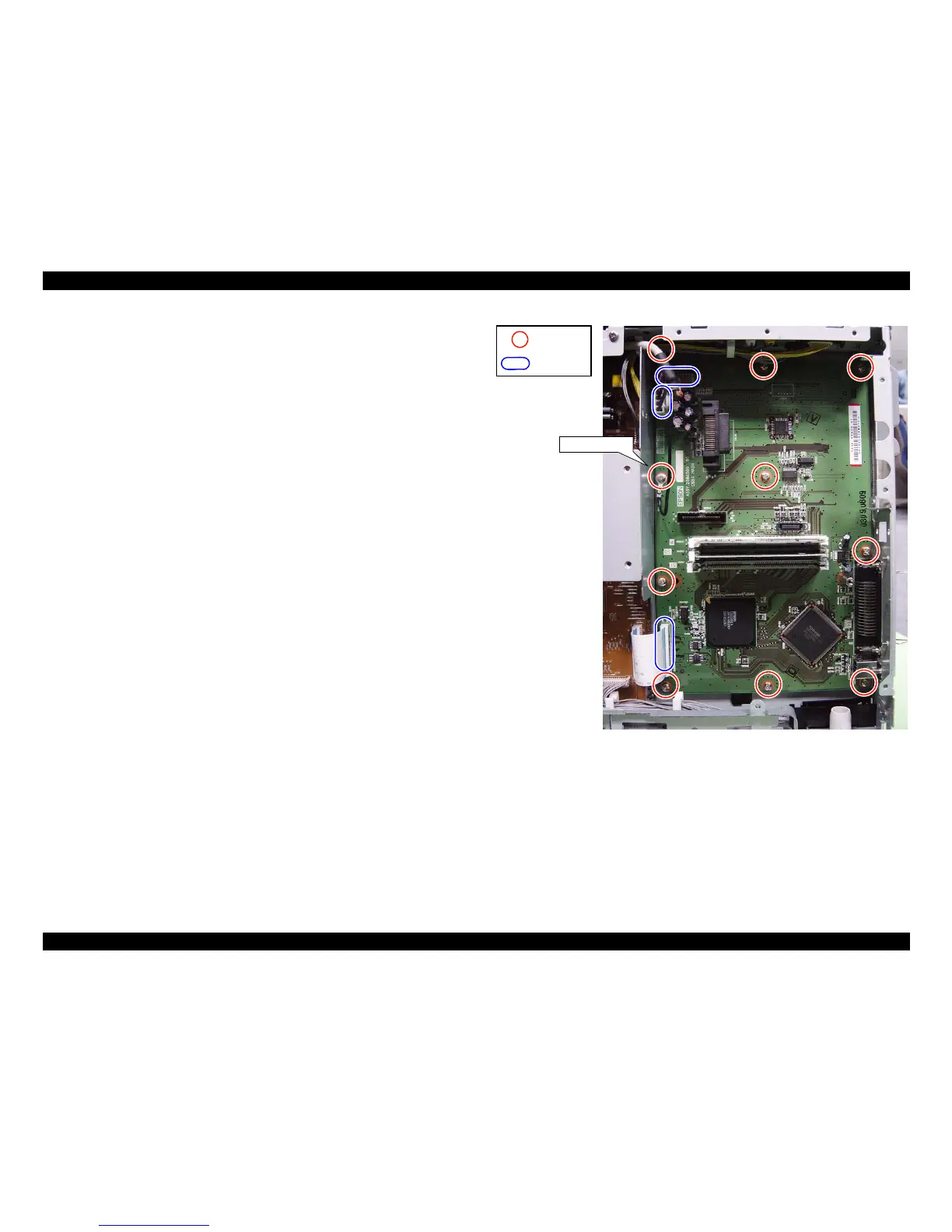

Figure 4- 104. BOARD ASSY., MAIN Removal_1
: Screw
: Connector
Grounding Wire
