Epson EPL-N3000 - Lever Link, Link Gear 3

EPSON EPL-N3000/AcuLaser M4000N Revision C
Disassembly and Assembly Xero 259
Confidential
4.7.13 LEVER LINK, LINK GEAR 3
Removal
1. Remove the COVER REAR 500. (p.270)
2. Remove the COVER REAR. (p.167)
3. Remove the FUSER ASSY. (p.253)
4. Remove the COVER LEFT. (p.169)
5. Remove the COVER RIGHT. (p.168)
6. Remove the COVER EXIT 500. (p.261)
7. Remove the 500 EXIT ASSY. (p.262)
8. Remove the COVER TOP, CONTROL PANEL. (p.170)
9. Remove the COVER FRONT. (p.172)
10. Remove the BTR ASSY. (p.254)
11. Remove the DUCT FRONT, FAN SUB. (p.241)
12. Remove the ROS ASSY. (p.239)
13. Remove the SHIELD PLATE ROS. (p.243)
14. Remove the GUIDE TRAY LEFT. (p.236)
15. Remove the MOTOR COVER. (p.277)
16. Remove the SHIELD PLATE LVPS. (p.285)
17. Remove the GUIDE CRU LEFT. (p.245)
18. Remove the COVER GUIDE CRU and HARNESS ASSY FUSER from the
GUIDE CRU LEFT.
(p.251)
19. Remove the LEVER LINK and LINK GEAR 3 together.

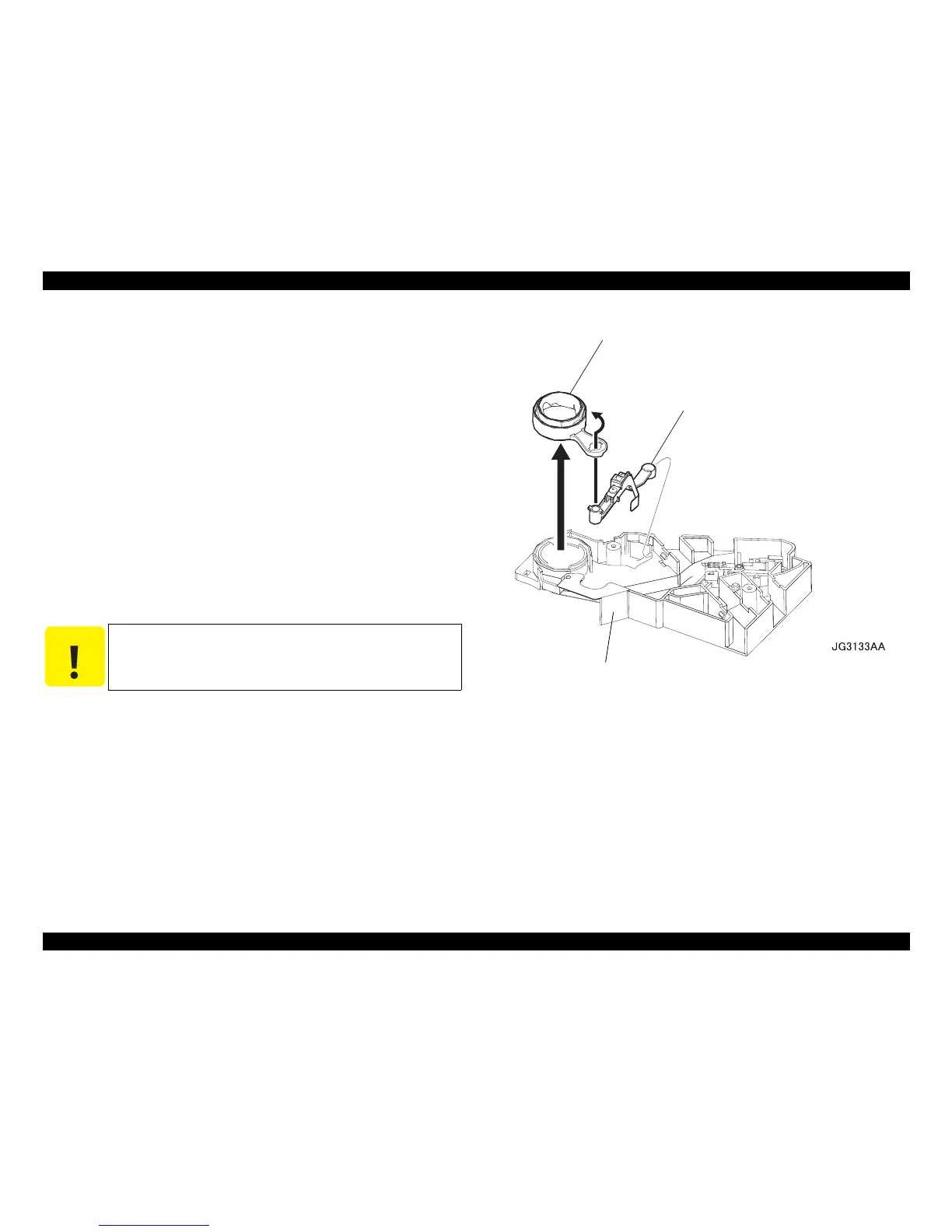

Figure 4- 71. LEVER LINK, LINK GEAR 3 Removal
C A U T I O N
Never give impact to the ROS ASSY with a screwdriver or the like.
LEVEL LINK
GUIDE CRU LEFT
LINK GEAR 3
