EPSON EPL-N3000/AcuLaser M4000N Revision C
Disassembly and Assembly Option 550 Paper Feeder 311
Confidential
4.11.9 550 FEEDER OPTION
Removal
1. Remove the five screws (gold, tapping, 8mm) securing the COVER RE550 to the
frame.
2. Remove the COVER RE550.
3. Disconnect the connector (P/J855) of the HARNESS ASSY CLSNR 1 from the
HARNESS ASSY CLSNR 2.
4. Disconnect the connector (P/J820) of the MOTOR FEEDER from the HARNESS
ASSY FDR MOT.
5. Disconnect the connector (P/J801) of the HARNESS ASSY SIZE FDR1 from the
HARNESS ASSY SIZE FDR2.
6. Release the harness of the HARNESS ASSY FDR MOT and HARNESS ASSY
SIZE FDR2 from the CLAMP.
7. Remove the 6 screws (gold, tapping, 8mm) securing the 550 FEEDER OPTION.
8. Remove the 550 FEEDER OPTION from the frame.
9. Remove the three screws (silver, 6 mm) securing the CHUTE 550 LOWER, and
remove the 550 CHUTE LOWER from the 550 FEEDER OPTION.

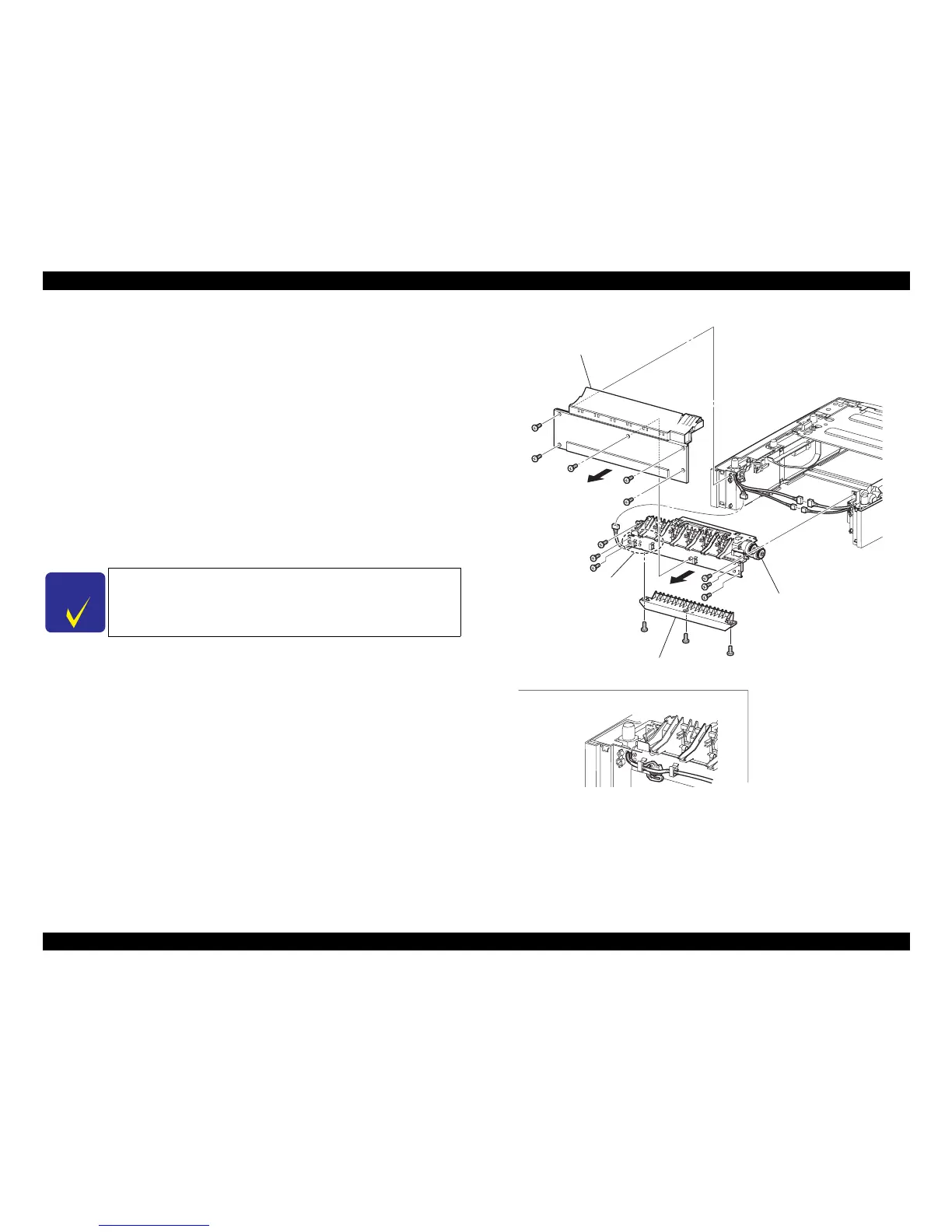

Figure 4- 116. 550 FEEDER OPTION Removal
C H E C K
P O I N T
Do the work in the following step as required.
JG3510AA
550 FEEDER OPTION

COVER RE550
CHUTE 550 LOWER
NOTE1)
(Note1)
WHEN ASSEMBLING
1)
2)
3)
7)
8)
5)
4)
9)
