Epson EPL-N3000 - Hsg Lower Dup

EPSON EPL-N3000/AcuLaser M4000N Revision C
Disassembly and Assembly Option Duplex 344
Confidential
4.12.3 HSG LOWER DUP
Removal
1. Remove the COVER LEFT. (p.353)
2. Remove the COVER RIGHT. (p.354)
3. Disconnect the connector of the HARNESS ASSY DUP from the PWBA
DUPLEX.
4. Remove the one screw (silver, 6mm) securing the HARNESS ASSY DUP
EARTH.
5. Release the HARNESS ASSY DUP from the harness clamp.
6. Remove the one SCREW TAPPING securing the SPRING DAMPER.
7. Remove the two SCREWs HINGE securing the HSG LOWER DUP, and remove
the HSG LOWER DUP from the COVER HSG DUP.

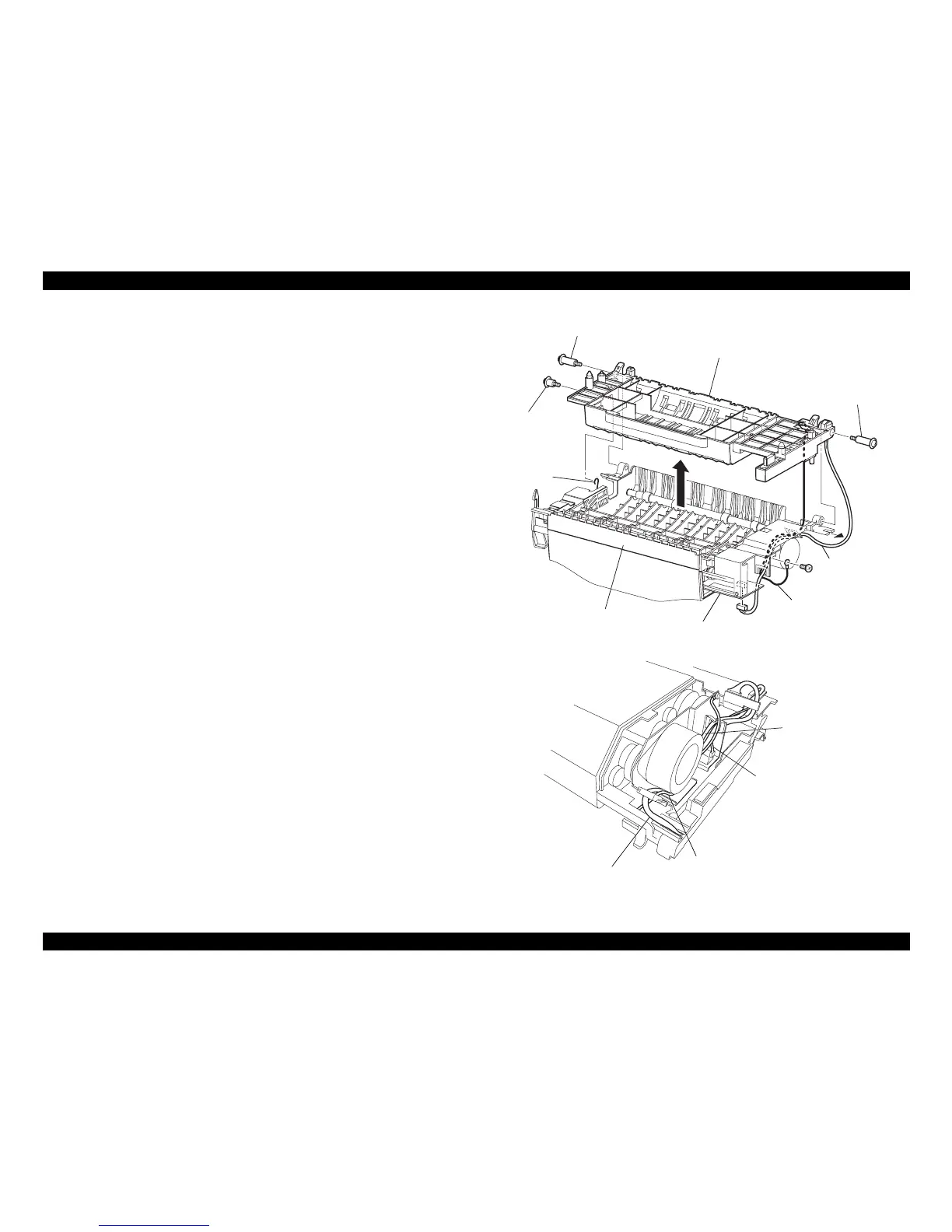

Figure 4- 145. HSG LOWER DUP Removal
Figure 4- 146. HSG LOWER DUP Removal
HSG LOWER DUP
SCREW HINGE
COVER HSG DUP
JG3614AB
SCREW HINGE
SCREW TAPPING
SPRING DAMPER
HARNESS ASSY DUP EARTH
HARNESS ASSY
DUP
PWBA DUPLEX
7-1)
6)
7-2)
3)
5)
4)
7-1)
HARNESS ASSY DUP
HARNESS ASSY
DUP SNR
MOTOR DUPLEX
HARNESS ASSY
DUP EARTH
JG3615AB
