4.13.4 COVER OCT
Removal
1. Remove the COVER REAR. (p.362)
2. Remove the WEIGHT.
3. Disengage the hinges at both ends of the FLAPPER L from the COVER OCT.
4. Remove the LINK mounted to the FLAPPER L from the SHAFT FULL STACK.
5. Disengage the hinges at both ends of the FLAPPER R from the COVER OCT.
6. Remove the LINK mounted to the FLAPPER R from the ACTUATOR FULL
STACK.
7. Remove the 2 rear screws (gold, tapping, 8mm) securing the COVER OCT to the
printer body.
8. Remove the 2 bottom screws (gold, tapping, 8mm) securing the COVER OCT to
the printer body.
9. Lift the TRAY ASSY OCT nearly 90 degrees, lift the COVER OCT upward
together with the TRAY ASSY OCT, and remove it from the printer body.

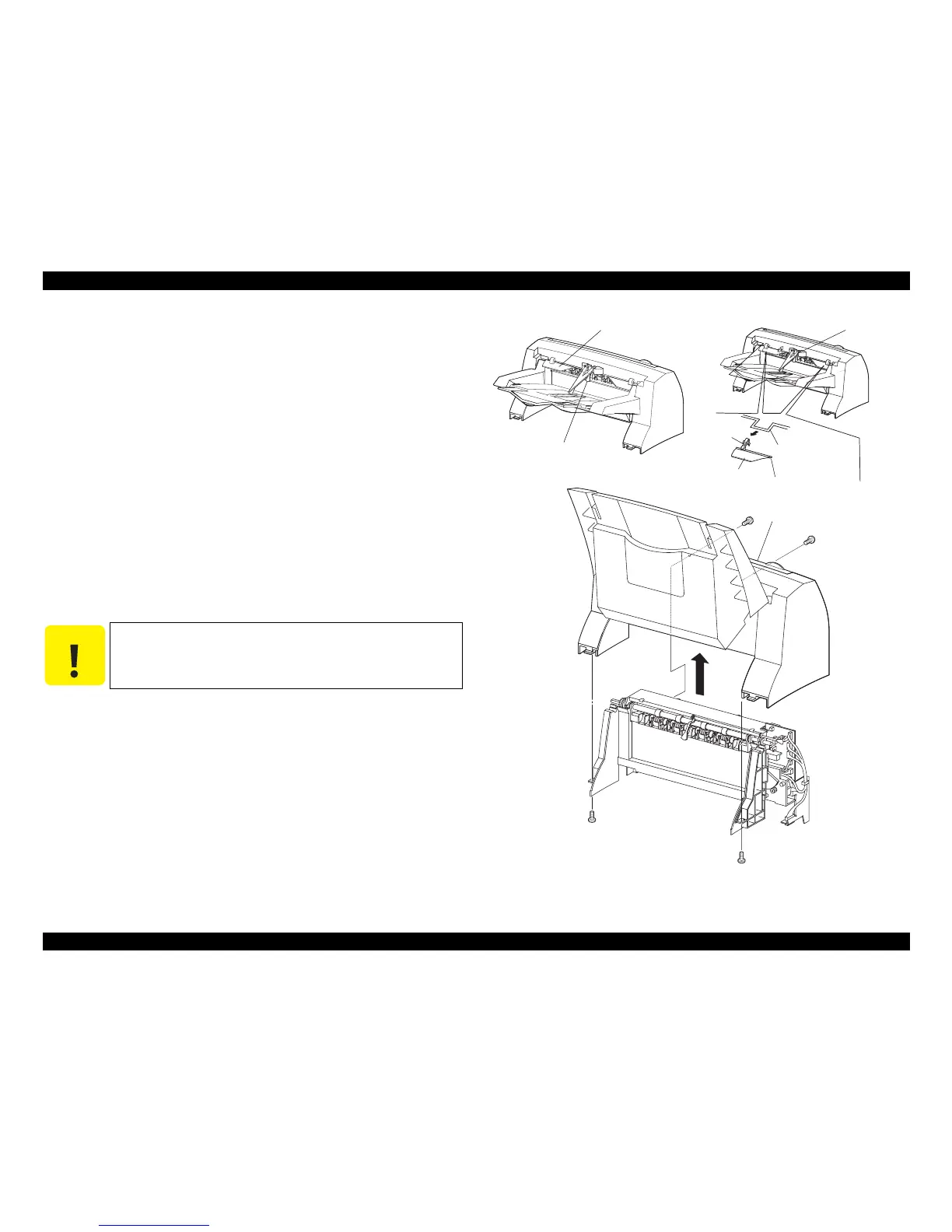

Figure 4- 160. COVER OCT Removal
C A U T I O N
When lifting the COVER OCT, handle it carefully so that the
ACTUATOR FULL STACK is not damaged by the TRAY ASSY
OCT.
JG3804AB
COVER OCT
7)
8)
9)
JG3823A
A
ACTUATOR FULL STACK
FLAPPER L
JG3821AB
LINK
FLAPPER L
HINGE
SHAFT FULL STACK
WEIGHT
3)
4)
2)
