EPSON EPL-N3000/AcuLaser M4000N Revision C
Disassembly and Assembly Frame & Drive 281
Confidential
4.9.3 GEAR ASSY HOUSING
Removal
1. Remove the COVER REAR 500. (p.270)
2. Remove the COVER REAR. (p.167)
3. Remove the COVER LEFT. (p.169)
4. Remove and release the HARNESS ASSY INTERLOCK 2 and HARNESS ASSY
LVPS from the clamps of the GEAR ASSY HOUSING.
5. Remove the six screws (silver, 6 mm x5; gold, 6 mm x1) securing the GEAR
ASSY HOUSING.
6. Release the hook of the GEAR ASSY HOUSING and remove the GEAR ASSY
HOUSING.

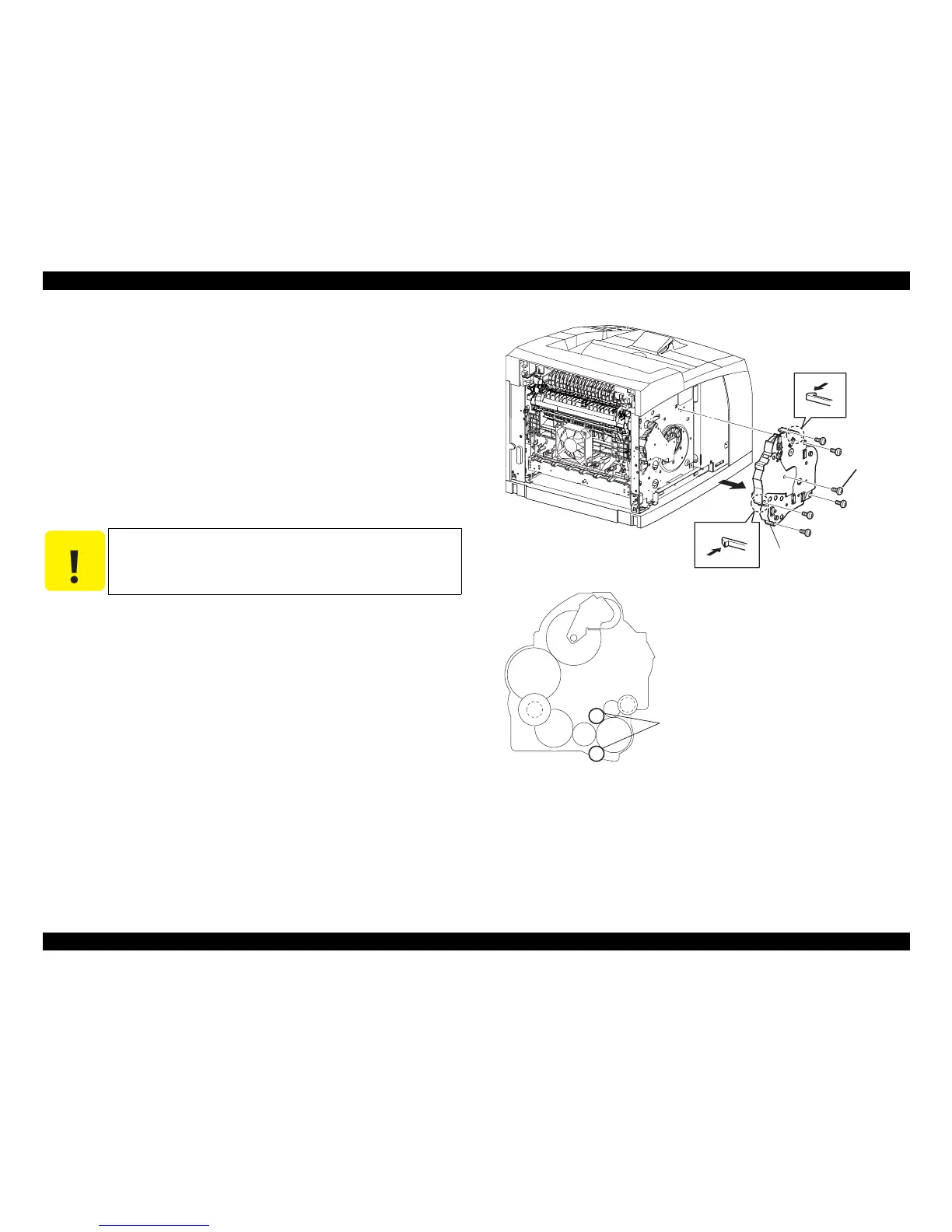

Figure 4- 90. GEAR ASSY HOUSING Removal
C A U T I O N
When the GEAR ASSY HOUSING is removed, two of the gears
mounted on the GEAR ASSY HOUSING may come off as they are
not secured. Be careful not to drop these gears.
JG3019EA
GEAR ASSY HOUSING
Screw(A)
JG3088AA
NOT FIXED
6-2)
5)
6-1)
