Epson EPL-N3000 - Overall Connection Wiring Diagram

EPSON EPL-N3000/AcuLaser M4000N Revision C
Appendix Wiring Diagrams and Signal Information 415
Confidential
7.2.2 Overall Connection Wiring Diagram
7.2.2.1 Overall Connection Wiring Diagram of Printer
 EPL-N3000

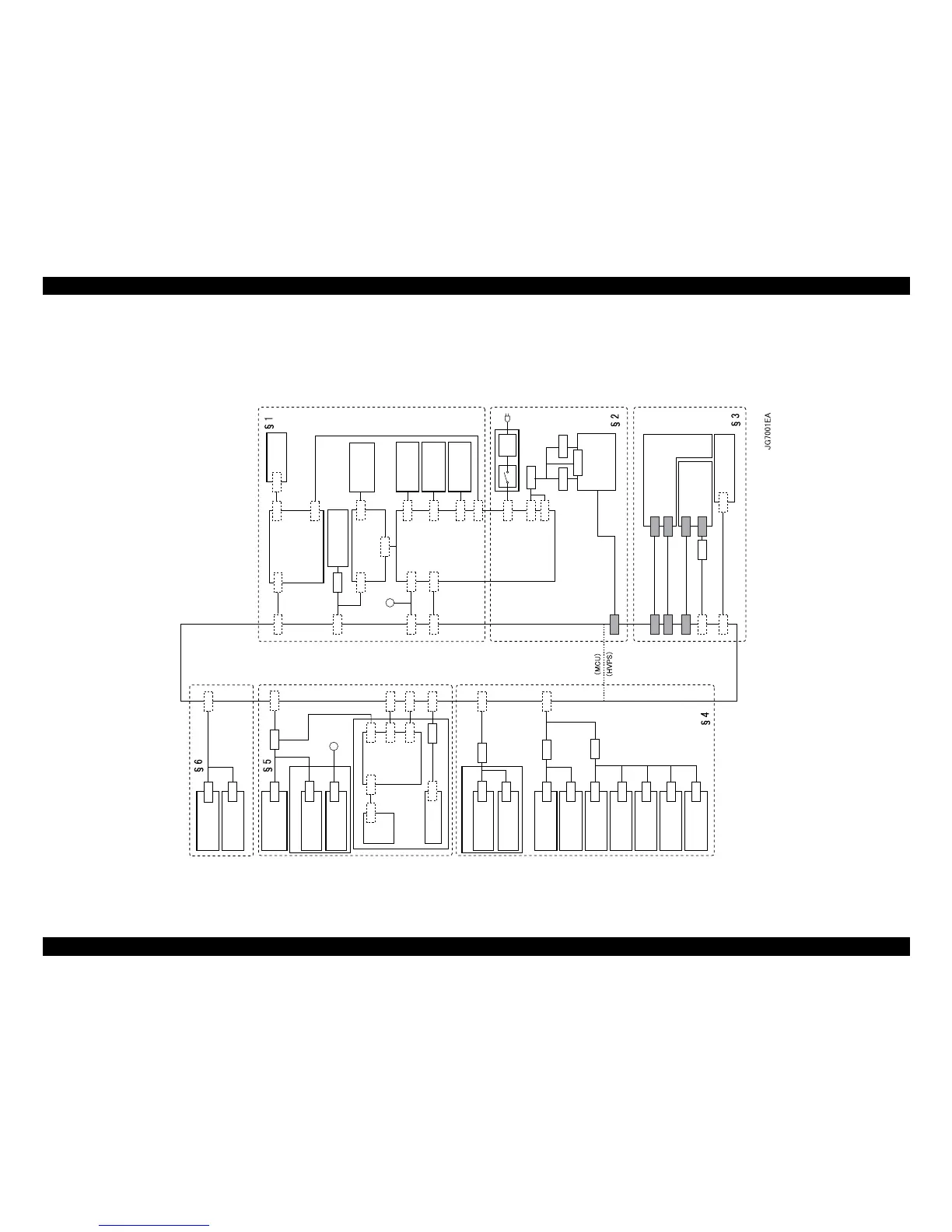

Figure 7-2. Overall Connection Wiring Diagram of Printer
UI
HVPS
/MCU
PL12.1.19
"BOARD ASSY.,
MAIN"
PL12.1.3
MOTOR ASSY
EXIT
PL10.1.15
INTERLOCK
S/W 24V
PL8.1.11
INTERLOCK
S/W REAR
PL12.1.7
Tray 1 SW Size1 Tray 2 SW Size2
INTERLOCK
S/W 5V
PL8.1.12
Tray 1 SENSOR NO PAPER PL5.1.38 Tray 1 SENSOR REGI PL5.1.30 Tray 2 SENSOR NO PAPER PL6.1.38/PL7.1.38 Tray 2 CLUTCH ASSY PH PL6.1.21/PL7.1.20 Tray 1 CLUTCH ASSY PH PL5.1.21 CLUTCH REGI PL5.1.23 FAN MAIN PL 12.1.10
MAIN MOTOR
PL11.1.2
FAN SUB
PL8.1.5
PWBA EXIT
MOTER
PL12.1.4
LVPS
PL12.1.5
FUSER
ASSY
PL8.1.20
HARNESS
ASSY AC 100V
PL12.1.8
Imaging Cartridge
PWBA ASSY ANT PL8.1.23
BTR ASSY PL8.1.21
DB
PRB
CR
DTS
TR
LDD
ROS ASSY
PL8.1.1
SOS
P/J280
P/J270
P/J102
P/J103
P/J45
P/J41P/J11
P/J10
P/J42
P/J44
P/J43 P/J40 P/J48 P/J46 P/J4647
P/J15 P/J31
P/J150
P/J47
P/J101
P/J400
P/J28
P/J18
P/J17 P/J16 P/J13
P/J140 P/J170 P/J160
P/J246
P/J24
P/J27
P/J180
P/J1821
P/J210
P/J14P/J141P/J142
P/J131
P/J248
P/J247
P/J245
P/J244 P/J243 P/J242
P/J4248 P/J4249
INLET
Scanner
P/J130
P/J241 P/J240
P/J310
GUIDE TRAY LEFT PL6.1.7/
SENSOR FULL STACK PL10.1.26 SENSOR FACE UP OPEN PL10.1.25
P/J290
P/J29
P/J291
P/J4647
PL7.1.7
OPERATION
PANEL
PL1.1.1
P1
Interlock
S/W 5V R
Interlock
S/W Front R
P/J144 P/J411
SWITCH I/L ASSY PL1.1.11
A
A
P/J2011
P/J201
