4.4.6 GEAR LEVER LOCK, LEVER BTM LOCK
Removal
1. Remove the COVER CST from the cassette body.
2. Unlock the LOCK EXTENSION, and draw out the cassette extension.
3. While pushing the lock of the STOPPER GEAR, unlock the LEVER BTM LOCK,
and raise the PLATE ASSY BTM.
4. Remove the one screw (gold, tapping, 8mm) securing the PLATE GEAR LOCK
550 on the GEAR PB R side.
5. Release the hook of the PLATE GEAR LOCK 550, and remove the PLATE
GEAR LOCK 550 from the HOUSING BASE 550.
6. Release the hook of the GEAR PB R and remove the GEAR PB R from the
SHAFT PB.
7. Remove the two screws (gold, tapping, 6 mm) securing the COVER BTM UP 550,
and remove the COVER BTM UP 550 from the HOUSING BASE 550.
8. Carefully handle the hooks of the GUIDE ASSY END as they may be damaged if
large force is applied.

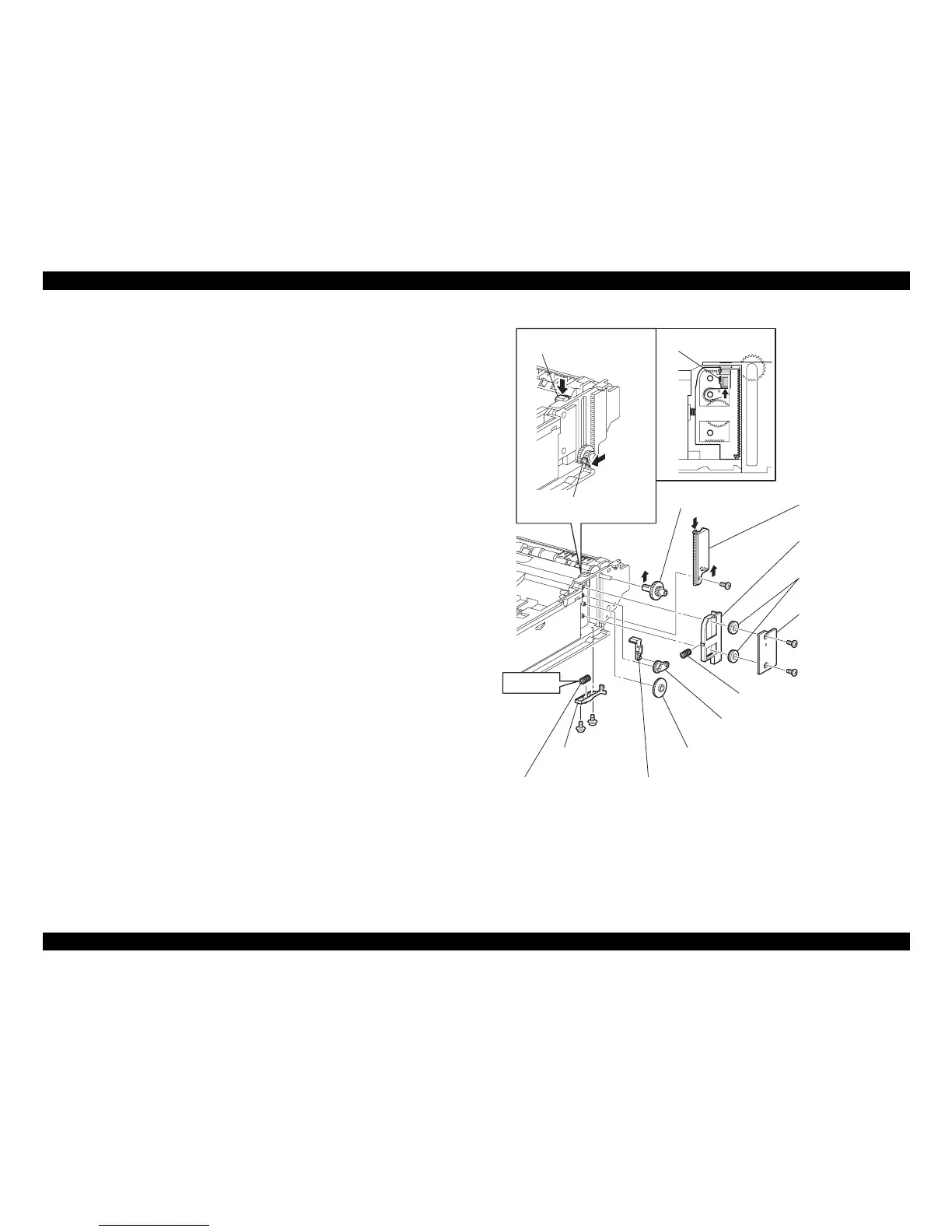

Figure 4- 33. GEAR LEVER LOCK, LEVER BTM LOCK Removal
SPRING BTM LOCK
LEVER BTM LOCK
STOPPER GEAR
GEAR LEVEL LOCK
GEAR BTM LOCK
RACK BTM LOCK 550
COVER BTM UP 550
SPRING STOPPER GEAR
PLATE GEAR LOCK 550
GEAR PB R
NOTE1)
STOPPER
LEVER BTM LOCK
STOPPER GEAR
JG3137AA
SEE NOTE2
GEAR BTM LOCK PINION
3)
5)
6)
4)
9)
8)
7)
9)
11)
10)
12)
