EPSON EPL-N3000/AcuLaser M4000N Revision C
Disassembly and Assembly 550 Paper Cassette 204
Confidential

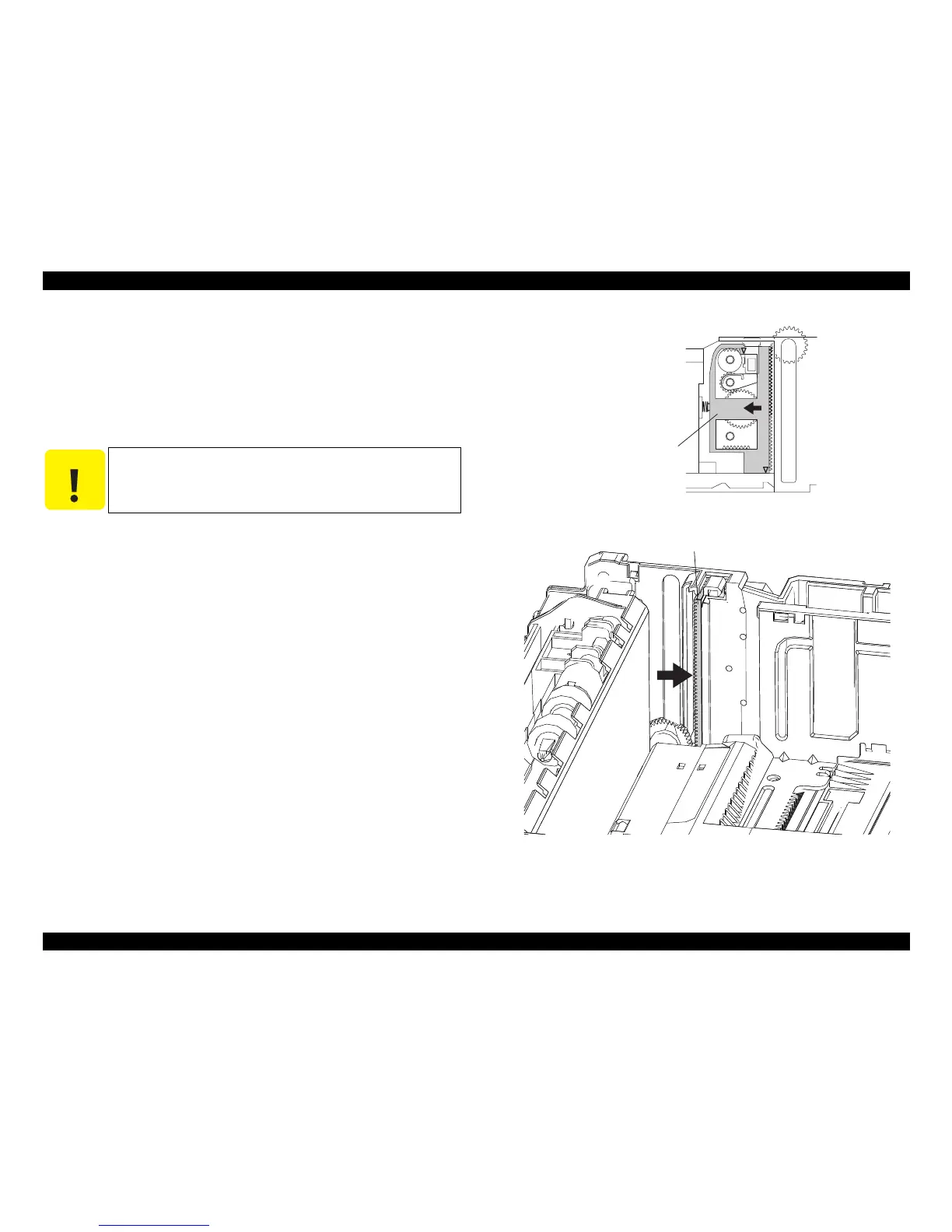

9. Remove the RACK BTM LOCK 550 and SPRING BTM LOCK together from the
HOUSING BASE 550.
10. Remove the GEAR BTM LOCK from the HOUSING BASE 550.
11. Remove the GEAR LEVER LOCK from the HOUSING BASE 550.
12. Remove the two screws (black, with a collar, 6 mm) securing the STOPPER
GEAR, and remove the STOPPER GEAR and SPRING STOPPER GEAR from
the HOUSING BASE 550.
C A U T I O N
During removal/installation of the STOPPER GEAR, take care not
to lose the SPRING STOPPER GEAR.
RACK BTM LOCK 550
JG3205AA
JG3206AA
RACK BTM LOCK 550
NOTE3)
NOTE4)
