EPSON EPL-N3000/AcuLaser M4000N Revision C
Disassembly and Assembly Option 550 Paper Feeder 313
Confidential
4.11.10 ROLL ASSY NUDGER, ROLL ASSY FEED
Removal
1. Release the hook of the ROLL ASSY NUDGER, and pull the ROLL ASSY
NUDGER out of the SHAFT NUDGER.
2. Release the hook of the ROLL ASSY FEED, and pull the ROLL ASSY FEED out
of the SHAFT FEED.
Installation
1. Fit the ROLL ASSY FEED to the SHAFT FEED and have it locked.
2. Fit the ROLL ASSY NUDGER to the SHAFT NUDGER and have it locked.

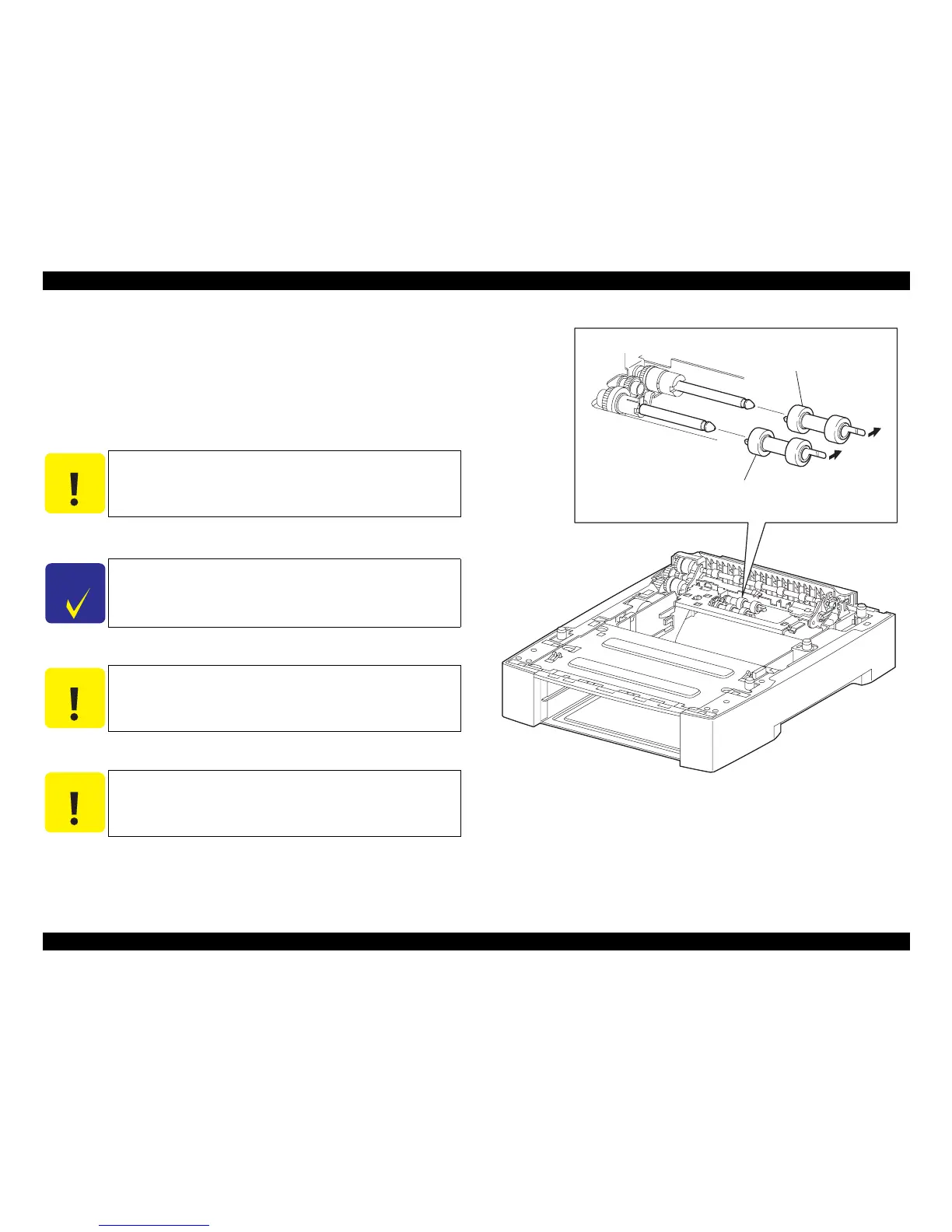

Figure 4- 117. ROLL ASSY NUDGER, ROLL ASSY FEED Removal
C A U T I O N
In removal, take care not to hold any rubber portion of the ROLL
ASSY TURN.
C H E C K
P O I N T
The ROLL ASSY FEED and ROLL ASSY NUDGER have
different names but are the same parts.
C A U T I O N
 Engage properly the hook of the ROLL ASSY FEED with the
groove in the SHAFT FEED respectively.
 When installing it, take care not to hold any rubber portion of
the ROLL ASSY FEED.
C A U T I O N
 Engage properly the hook of the ROLL ASSY NUDGER with
the groove in the SHAFT NUDGER respectively.
 When installing it, take care not to hold the rubber part of the
ROLL ASSY NUDGER.
JG3511A
A
ROLL ASSY FEED
ROLL ASSY NUDGER
2)
1)
