EPSON EPL-N3000/AcuLaser M4000N Revision C
Disassembly and Assembly Frame & Drive 277
Confidential
4.9 Frame & Drive
4.9.1 MOTOR COVER
Removal
1. Remove the COVER REAR 500. (p.270)
2. Remove the COVER REAR. (p.167)
3. Remove the FUSER ASSY. (p.253)
4. Remove the COVER LEFT. (p.169)
5. Remove the COVER RIGHT. (p.168)
6. Remove the COVER EXIT 500. (p.261)
7. Remove the 500 EXIT ASSY. (p.262)
8. Remove the COVER TOP, CONTROL PANEL. (p.170)
9. Remove the COVER FRONT. (p.172)
10. Remove the BTR ASSY. (p.254)
11. Remove the GUIDE TRAY LEFT. (p.236)
12. Remove the DUCT FRONT, FAN SUB. (p.241)
13. Remove the ROS ASSY. (p.239)
14. Remove the SHIELD PLATE ROS. (p.243)
15. While lifting the 150 FEEDER ASSY, remove the one screw (silver, 6mm)
securing the MOTOR COVER to the frame.
16. Disconnect the harness of the MAIN MOTOR from the clamp.
17. Remove the MOTOR COVER. (p.277)

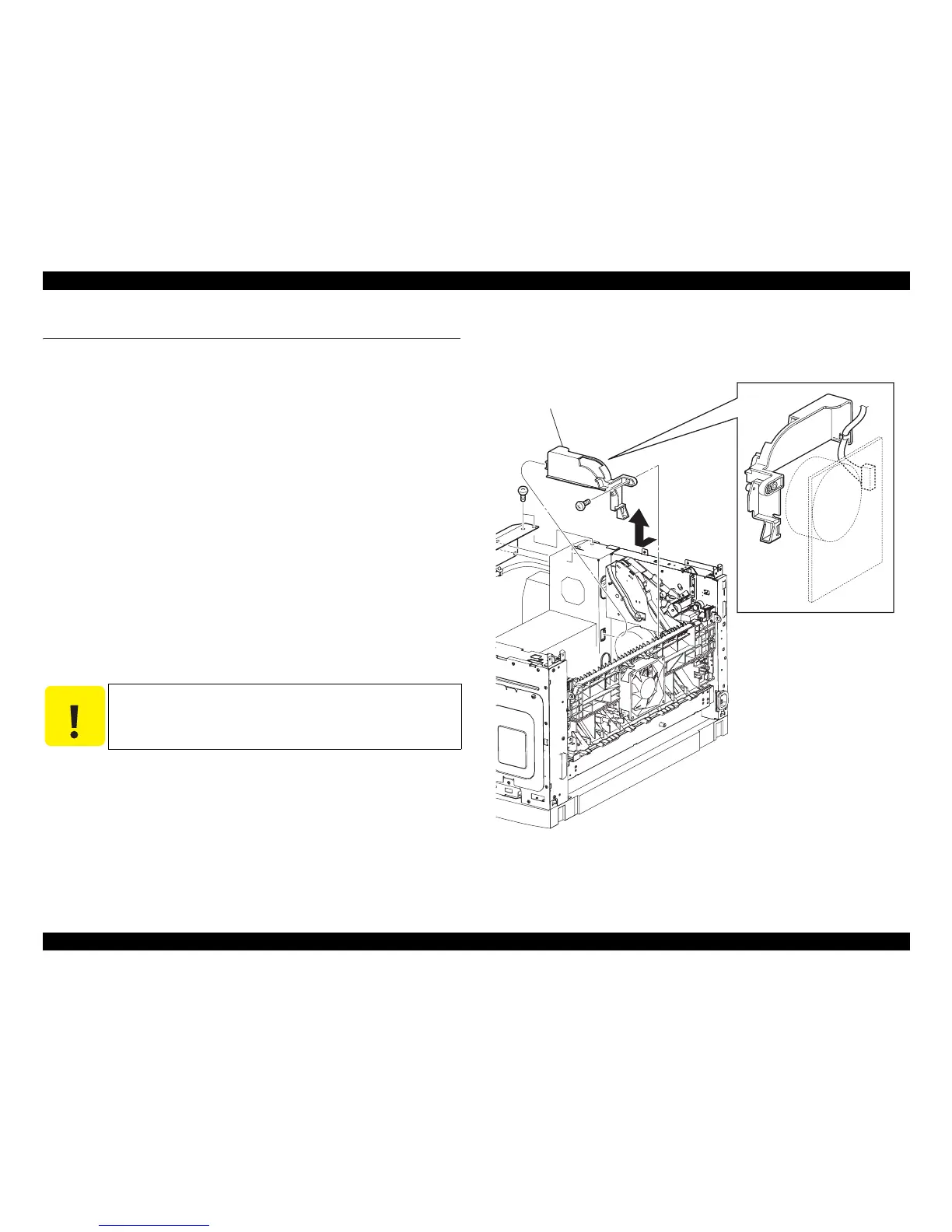

Figure 4- 88. MOTOR COVER Removal
C A U T I O N
Never give impact to the ROS ASSY with a screwdriver or the like.
JG3180AB
MOTOR COVER
15)
16)
