4.10.11 BOARD ASSY. SUB
Removal
1. Remove the COVER RIGHT. (p.168)
2. Remove the SHIELD ASSY ESS. (p.294)
3. Remove the 2 screws securing the BOARD ASSY. SUB to the PANEL REAR.
4. Disconnect the connector of the BOARD ASSY. SUB from the BOARD ASSY.,
MAIN to remove it.
Installation
1. Connect the connector of the BOARD ASSY. SUB to the BOARD ASSY.,
MAIN.
2. Secure the BOARD ASSY. SUB to the PANEL REAR with the 2 screws.
3. Install the SHIELD ASSY ESS. (p.294)
4. Install the COVER RIGHT. (p.168)

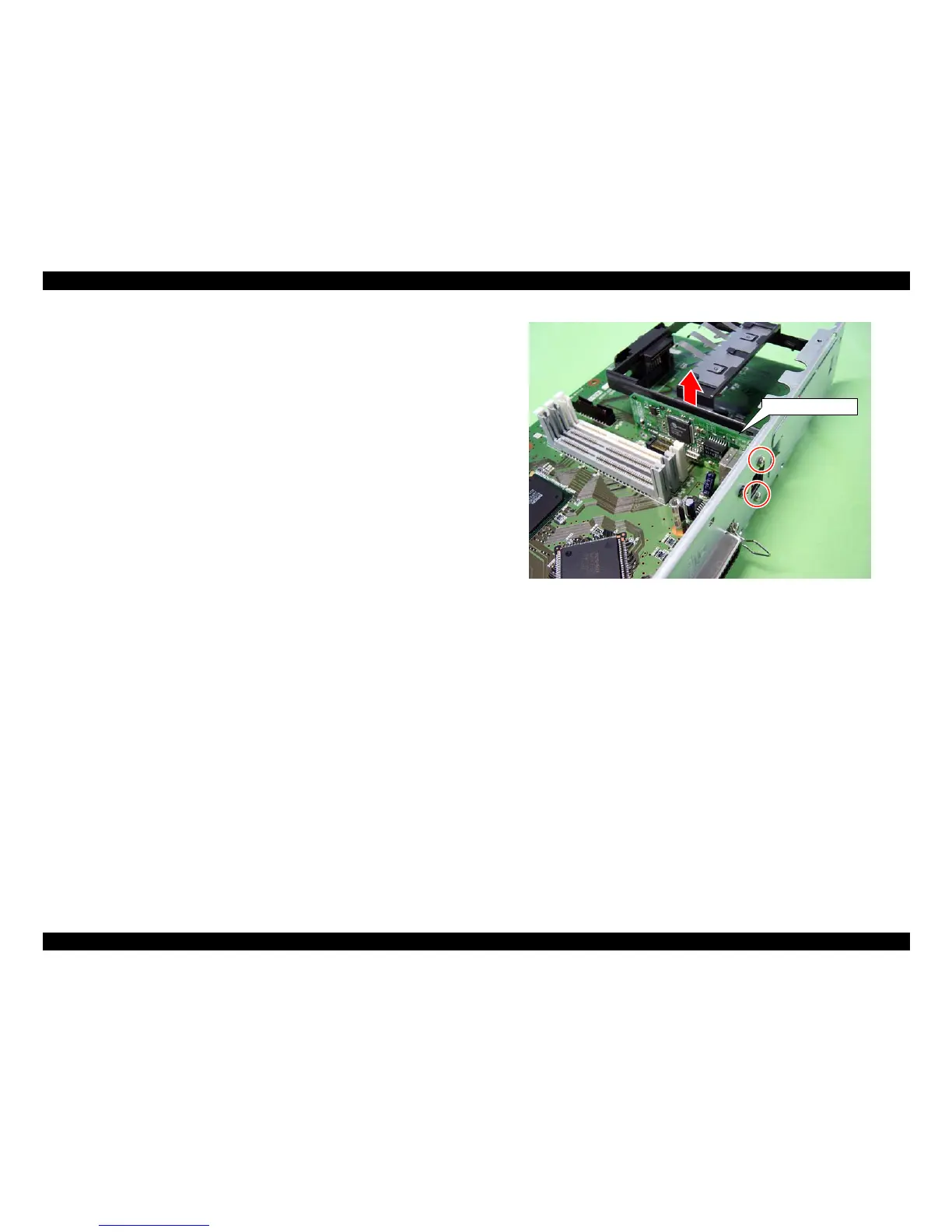

Figure 4- 103. BOARD ASSY. SUB
BOARD ASSY. SUB
