Epson EPL-N3000 - Sensor Full Stack; Sensor Full Stack (on PWBA OCT)

EPSON EPL-N3000/AcuLaser M4000N Revision C
Disassembly and Assembly 500 Paper Exit 268
Confidential
4.8.7 SENSOR FULL STACK
Removal
1. Remove the COVER REAR 500. (p.270)
2. Remove the COVER REAR. (p.167)
3. Remove the COVER LEFT. (p.169)
4. Remove the COVER RIGHT. (p.168)
5. Remove the COVER EXIT 500. (p.261)
6. Remove the CHUTE UP EXIT, CHUTE LOW EXIT. (p.263)
7. Disconnect the connector (P/J290) of the HARNESS ASSY EXIT SNR from the
SENSOR FULL STACK.
8. Release the hook of the SENSOR FULL STACK, and remove the SENSOR FULL
STACK from the CHUTE LOW EXIT.
Installation
1. Install the SENSOR FULL STACK to the CHUTE LOW EXIT.
2. Connect the connector (P/J290) of the HARNESS ASSY EXIT SNR to the
SENSOR FULL STACK.
3. Install the CHUTE UP EXIT, CHUTE LOW EXIT. (p.263)
4. Install the COVER EXIT 500. (p.261)
5. Install the COVER RIGHT. (p.168)
6. Install the COVER LEFT. (p.169)
7. Install the COVER REAR. (p.167)
8. Install the COVER REAR 500. (p.270)

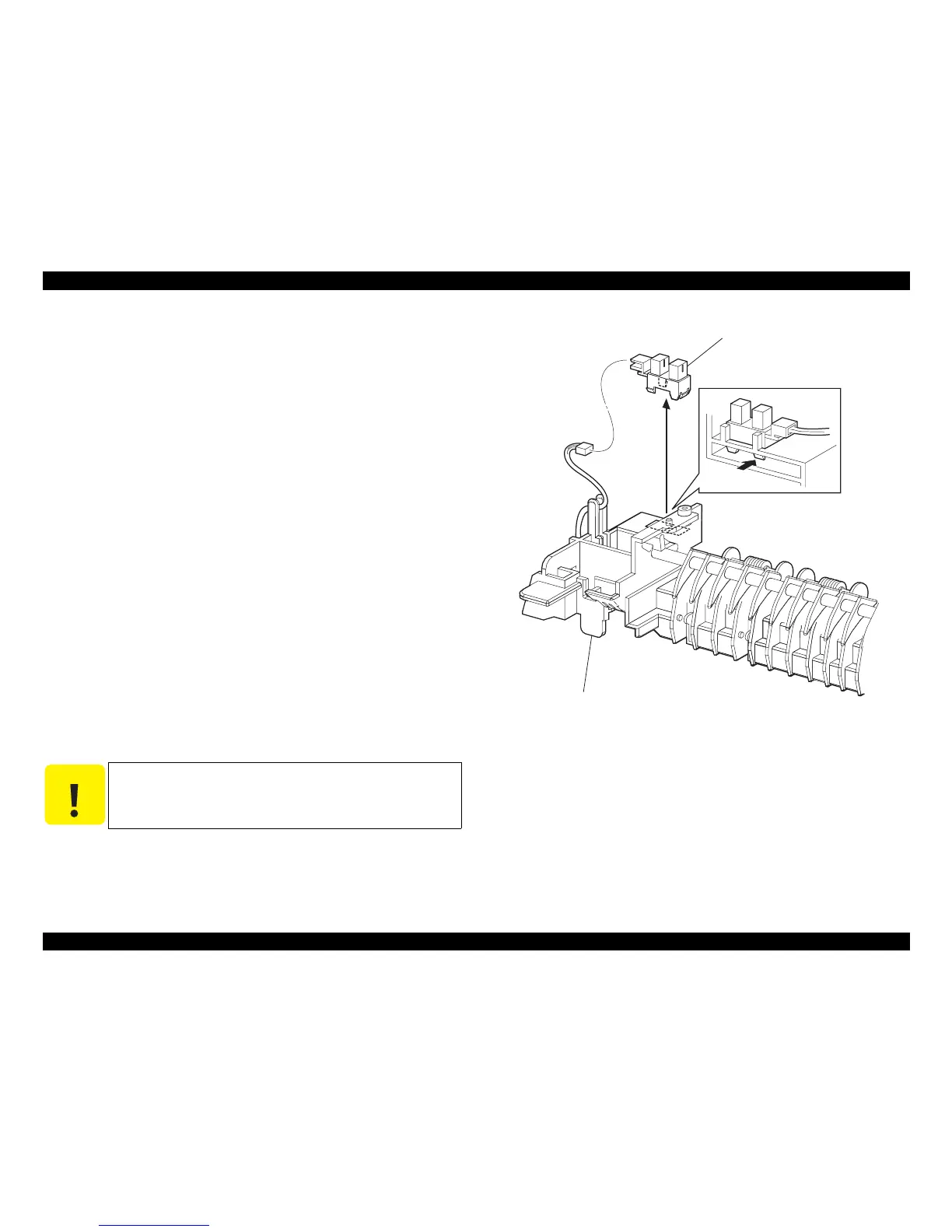

Figure 4- 79. SENSOR FULL STACK Removal
C A U T I O N
Pay attention to the difference between the two types of screws and
use them at their correct positions respectively.
JG3083A
A
CHUTE LOW EXIT
SENSOR FULL STACK
8)
7)
