4.6.5 CLUTCH ASSY PH
Removal
1. Remove the COVER REAR 500. (p.270)
2. Remove the FUSER ASSY. (p.253)
3. Remove the COVER REAR. (p.167)
4. Remove the FAN MAIN. (p.293)
5. With the BTR ASSY installed, remove the CHUTE TRANSFER. (p.255)
6. Remove the 150 FEEDER ASSY. (p.211)
7. Remove the 550 FEEDER ASSY. (p.224)
8. Remove the six screws (gold, tapping, 8mm) securing the PLATE TIE to the
CHUTE OUT, and remove the PLATE TIE.
9. Disconnect the connector (P/J247) of the CLUTCH ASSY PH from the
HARNESS ASSY TRAY 2.
10. Remove the E-ring retaining the CLUTCH ASSY PH and remove the CLUTCH
ASSY PH from the SHAFT FEED.

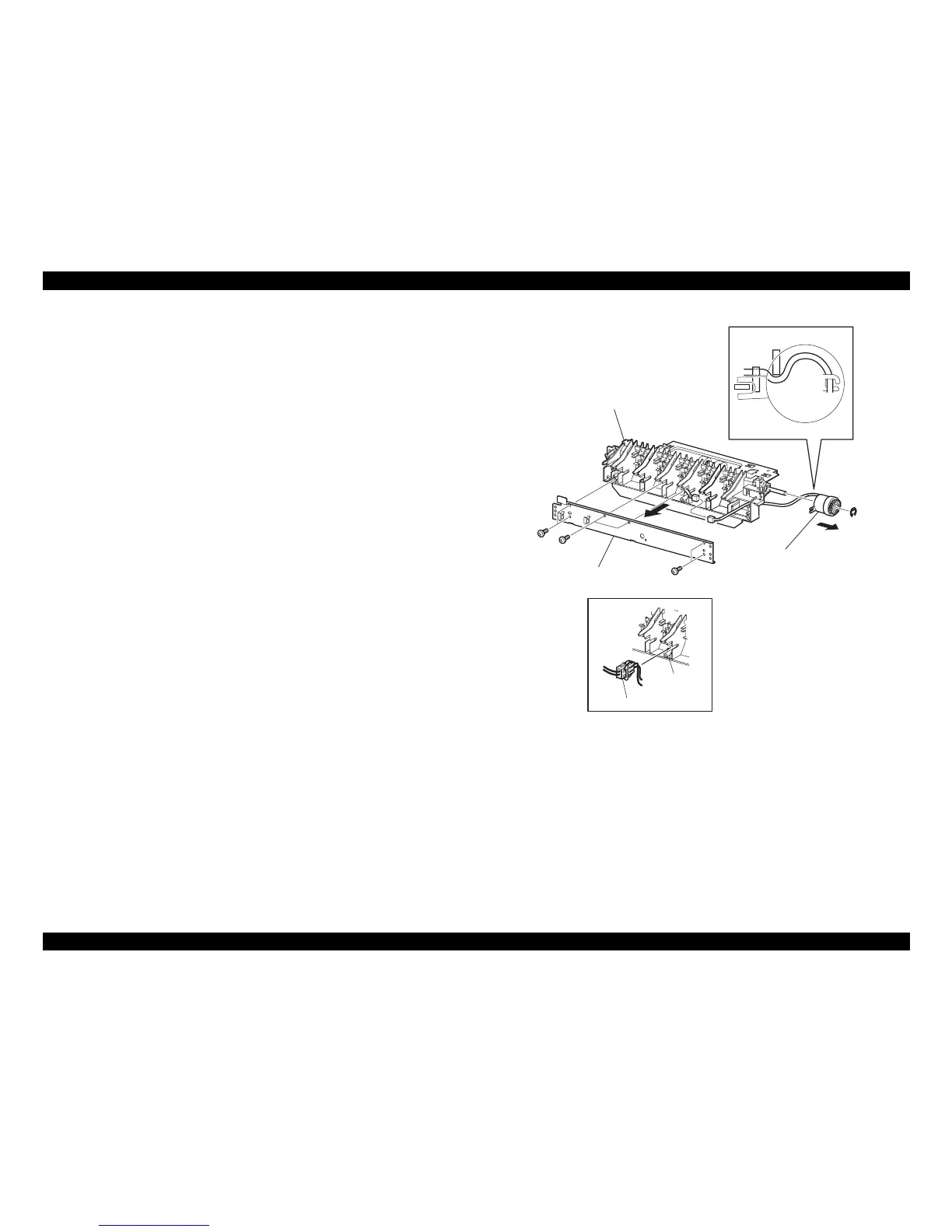

Figure 4- 53. CLUTCH ASSY PH Removal
JG3052AA
CHUTE OUT
CLUTCH ASSY PH
PLATE TIE
CONNECTOR
CHUTE OUT
Note1
9)
10)
8)
