EPSON EPL-N3000/AcuLaser M4000N Revision C
Disassembly and Assembly Xero 249
Confidential
4.7.6 LEVER GUIDE
Removal
1. Remove the COVER REAR 500. (p.270)
2. Remove the COVER REAR. (p.167)
3. Remove the FUSER ASSY. (p.253)
4. Remove the COVER LEFT. (p.169)
5. Remove the COVER RIGHT. (p.168)
6. Remove the COVER EXIT 500. (p.261)
7. Remove the 500 EXIT ASSY. (p.262)
8. Remove the COVER TOP, CONTROL PANEL. (p.170)
9. Remove the COVER FRONT. (p.172)
10. Remove the BTR ASSY. (p.254)
11. Remove the DUCT FRONT, FAN SUB. (p.241)
12. Remove the ROS ASSY. (p.239)
13. Remove the SHIELD PLATE ROS. (p.243)
14. Remove the GUIDE TRAY LEFT. (p.236)
15. Remove the MOTOR COVER. (p.277)
16. Remove the SHIELD PLATE LVPS. (p.285)
17. Remove the GUIDE CRU LEFT. (p.245)
18. Remove the COVER GUIDE CRU and HARNESS ASSY FUSER (p.251).
19. Remove the INTERLOCK S/W 24V, INTERLOCK S/W 5V. (p.247)
20. Remove the SPRING SL from the GUIDE CRU LEFT.
21. Remove the SPACER SS from the GUIDE CRU LEFT.
22. Remove the GUIDE SL from the GUIDE CRU LEFT.
23. Remove the LEVER GUIDE from the GUIDE CRU LEFT.

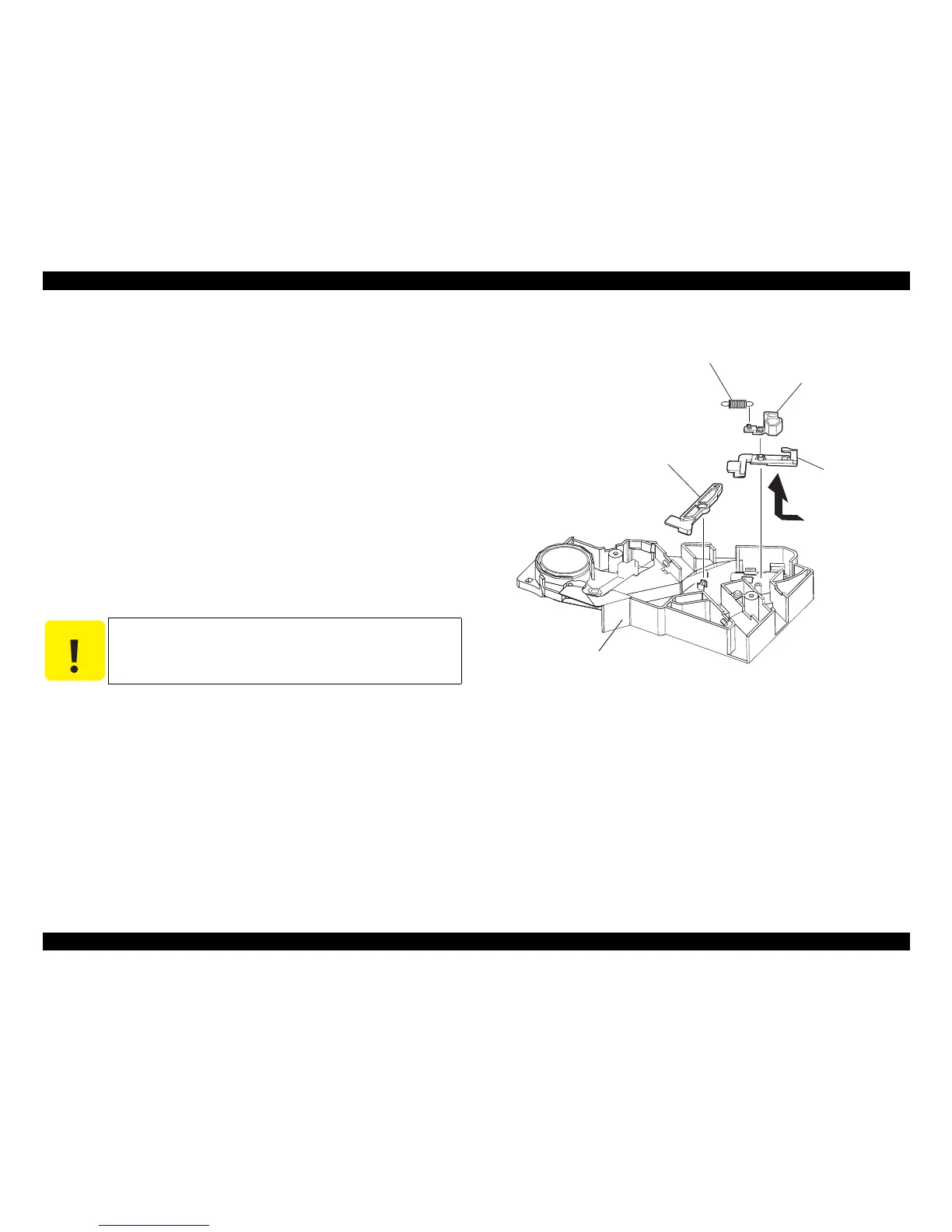

Figure 4- 64. LEVER GUIDE Removal
C A U T I O N
Never give impact to the ROS ASSY with a screwdriver or the like.
JG3062AA
LEVER GUIDE
SPRING SL
SPACER SS
GUIDE SL
GUIDE CRU LEFT
20)
23)
21)
22)
